Poly Performance 1" Shank JMX Heim Joint Kit Package
Poly Performance 1" JMX Heim Joint Kit Package
From $135.00
Only %1 left
SKU
PPI-HEIM1-KIT_PARENT_ITEM

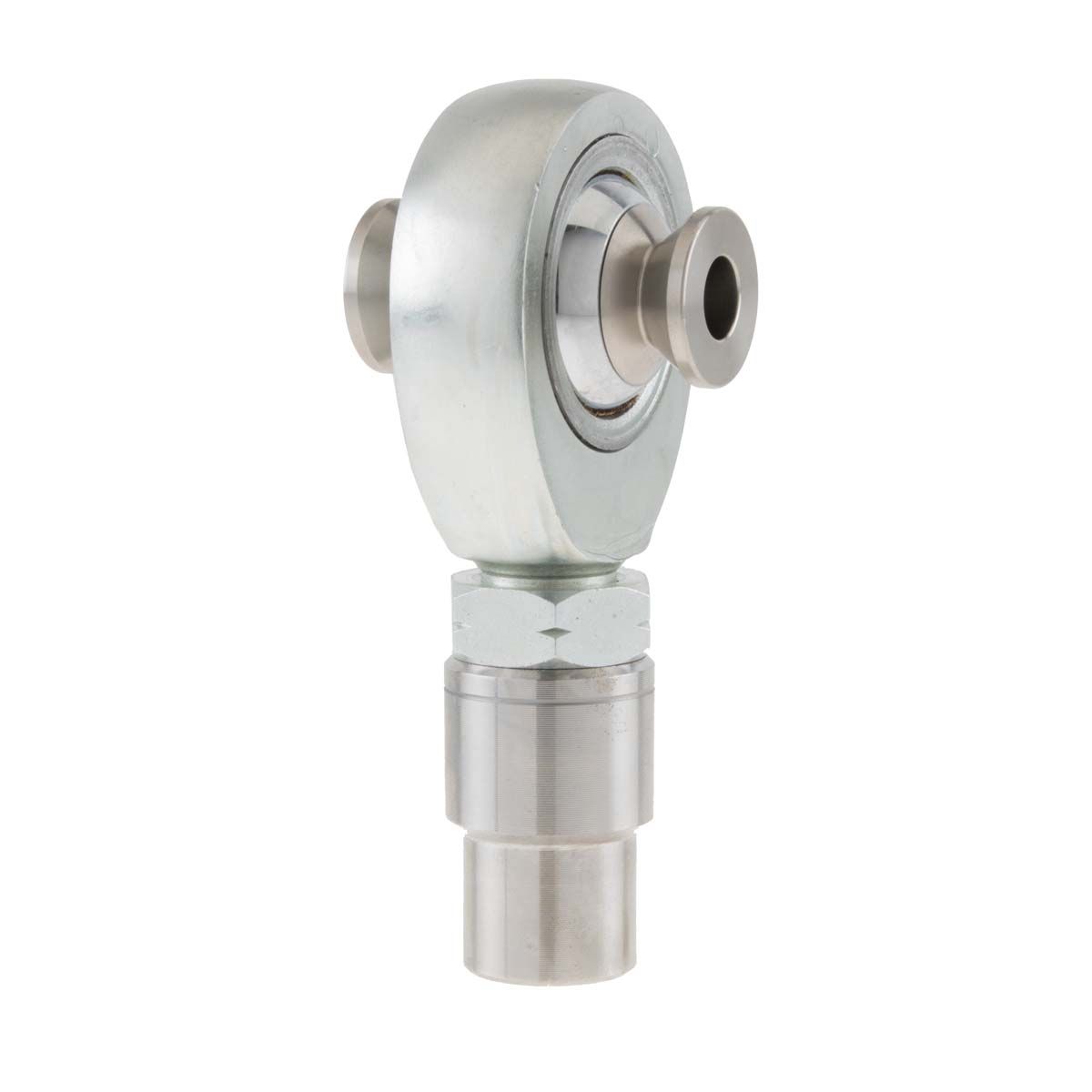

The 1" Heim Package includes everything you need for one end of your suspension link in one easy to order part #.
Includes:
- (1) FK JMX Series PTFE Lined 1" Shank Heim Joint
- (1) Weld-In Tube Adapter for 1.25" ID Tube
- (2) Hi-Misalignment Spacers for 2-5/8" Mounting Width (2.625")
- (1) Jam Nut
| Part # | Description |
|---|---|
| PPI-HEIM1RH-09 | FK JMX Series 1" Heim Joint, RH with 1.25" Tube Adapter, Jam Nut and 9/16" Hi-Misalignment Spacers w/ 2-5/8" Mounting Width (2.625") |
| PPI-HEIM1RH-10 | FK JMX Series 1" Heim Joint, RH with 1.25" Tube Adapter, Jam Nut and 5/8" Hi-Misalignment Spacers w/ 2-5/8" Mounting Width (2.625") |
| PPI-HEIM1RH-12 | FK JMX Series 1" Heim Joint, RH with 1.25" Tube Adapter, Jam Nut and 3/4" Hi-Misalignment Spacers w/ 2-5/8" Mounting Width (2.625") |
| PPI-HEIM1LH-09 | FK JMX Series 1" Heim Joint, LH with 1.25" Tube Adapter, Jam Nut and 9/16" Hi-Misalignment Spacers w/ 2-5/8" Mounting Width (2.625") |
| PPI-HEIM1LH-10 | FK JMX Series 1" Heim Joint, LH with 1.25" Tube Adapter, Jam Nut and 5/8" Hi-Misalignment Spacers w/ 2-5/8" Mounting Width (2.625") |
| PPI-HEIM1LH-12 | FK JMX Series 1" Heim Joint, LH with 1.25" Tube Adapter, Jam Nut and 3/4" Hi-Misalignment Spacers w/ 2-5/8" Mounting Width (2.625") |
Heim Specifications:
| B DIA. |
D DIA. |
W WIDTH |
T WIDTH |
BALL DIA. |
A LGTH |
N THD. |
C LGTH |
a MIS. ANGLE |
ULT. STATIC RADIAL LOAD (lbs) |
APPROX. WEIGHT (lbs) |
|---|---|---|---|---|---|---|---|---|---|---|
| +.0015 -.0005 |
+.010 -.010 |
+.000 -.005 |
+.005 -.005 |
REF. | +.015 -.015 |
UNF 3A |
+.062 -.031 |
REF. | ||
| 1.000 | 2.950 | 1.375 | 1.015 | 1.875 | 4.125 | 1-14 | 2.125 | 17 | 107,182 | 2.464 |
Male Rod End Load Ratings Based On No Lubricating Fitting.
**Tolerance Variations: "D", "A" ARE +/- .020
Material:
- Ball - 52100 Steel Rc 56 MIN. HARD CHROME PLATED
- Body - Steel Alloy, Heat Treated, Zinc Plated Chromate Treated
- Race - Steel Alloy, Heat Treated Zinc Plated, Chromate Treated
