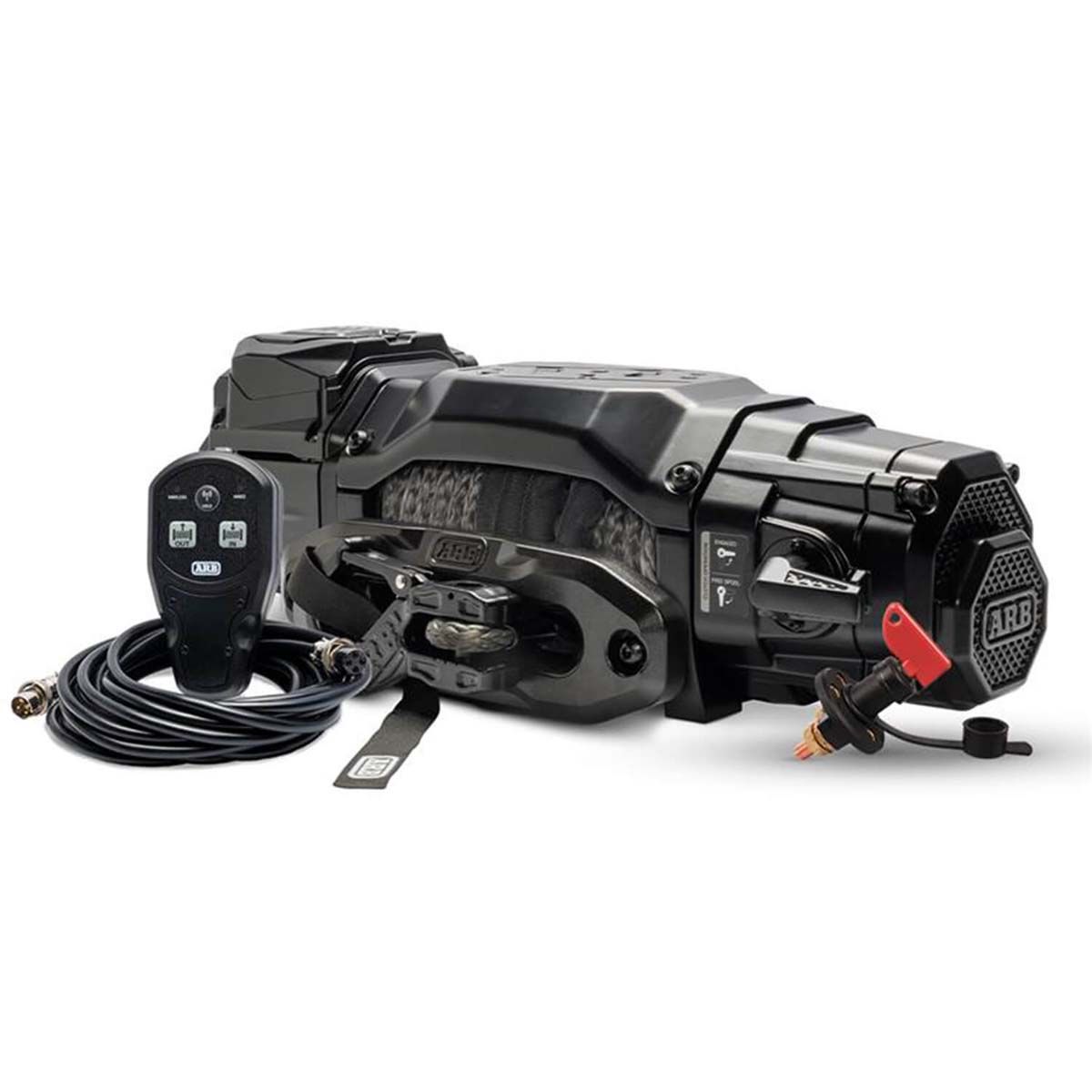

ARB 10K / 12K Winch

The next generation is here with a compact all in one motor control design for clean fitment and smooth operation. Built with top tier components and proven through rigorous testing for performance and reliability.

From $1,469.95

Only %1 left

SKU

ARB-ARW1012K_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description
ARB-ARW100SA	ARB 10,000 LBS Winch
ARB-ARW120SA	ARB 12,000 LBS Winch

The next generation of winch technology arrives with a compact, all-in-one motor control design that delivers clean fitment and smooth, reliable operation. Built with top-tier components and validated through rigorous performance testing, the integrated motor control unit sits within the winch itself, allowing it to work seamlessly with modern bumpers and vehicle sensors. A custom Albright contactor is built in to provide seamless power, while the direct-connection design enhances motor efficiency for steady, responsive control without the need for a separate control box. The system also features a compact pre-wired layout for quick installation, a 16-position clockable clutch handle for flexible mounting, and an IP68 rating that protects against dust and water intrusion. Engineered for durability and long service life, the ARB Winch incorporates a 4-stage hardened steel gearbox for maximum toughness, a one-piece bridging plate for improved torsional rigidity, and a tuned 12-volt motor that delivers fast line speeds. A gearbox-mounted brake ensures 100% load holding even in demanding conditions. Control is managed through a compact hand controller that works wirelessly at distances up to forty meters or via a five-meter lead for direct connection. A remote-mounted control plug enables hidden installations, while the 2.4GHz wireless link prevents signal interference. The system is completed with a 500-amp power isolation switch equipped with a stainless lanyard and protective dust cover.

Features:

The ARB Winch features a custom Albright contactor that connects directly to the motor. This improvement increases efficiency and removes the need for a bulky control box.
A 500A isolation switch with universal mount is included with the ARB Winch. It comes complete with a stainless lanyard and dust cover for safe and reliable operation.
Gearbox-mounted brake ensures 100% load holding and allows powered unspooling under no load without damaging the winch, easing unspooling efforts.
4-Stage Gearbox with hardened steel gears provides superior load distribution with, the 171:1 ratio allows for fast line speed while maintaining pulling power.
Dual connection remote with 2.4GHz wireless with sealed receiver circuitry for a stronger, secure connection eliminating interference or remote conflict.
Remote mounted control plug for low profile or hidden winch mounting without losing the ability to hardwire the controller.
One piece bridging plate offers greater torsional strength.
Prewired connections, versatile mounting options, and preset clutch positioning allow for fast and hassle-free installation. 16 positions (22.5 deg) for clocking the clutch handle for more installation options.

Built-In Control Box

The motor control unit is integrated within the winch for a clean fit that works with modern bumpers and vehicle sensors. The direct connection contactor improves motor efficiency so the system delivers smooth power and steady control without a separate control box.

Custom Albright contactor built-in for seamless power
Compact prewired design for quick installation
16-position clockable clutch handle for flexibility
IP68 rated for water and dust protection
Direct motor connection for maximum efficiency

Engineered for Strength and Reliability

ARB Winch is designed with a focus on durability, reliability, and long service life. Each unit is built with top tier components and validated through rigorous testing to ensure consistent performance in tough environments.

4-stage hardened steel gearbox for durability
One-piece bridging plate for torsional rigidity
Tuned 12V motor delivers fast line speed
Gearbox mounted brake provides 100% load holding

Dual Connection Remote

Stay in control from anywhere with the compact hand controller. It offers a 40m wireless range or a 5m lead for flexibility.
The 2.4GHz wireless connection eliminates interference or remote conflict, ensuring strong and reliable control.
Remote mounted control plug allows for low-profile or hidden winch mounting without losing the ability to hardwire the controller.

Control The Way You Want

The compact hand controller connects with a wireless range up to forty meters or with a five meter lead. A power isolation switch comes standard with a universal bracket, stainless lanyard, and a dust cover.
