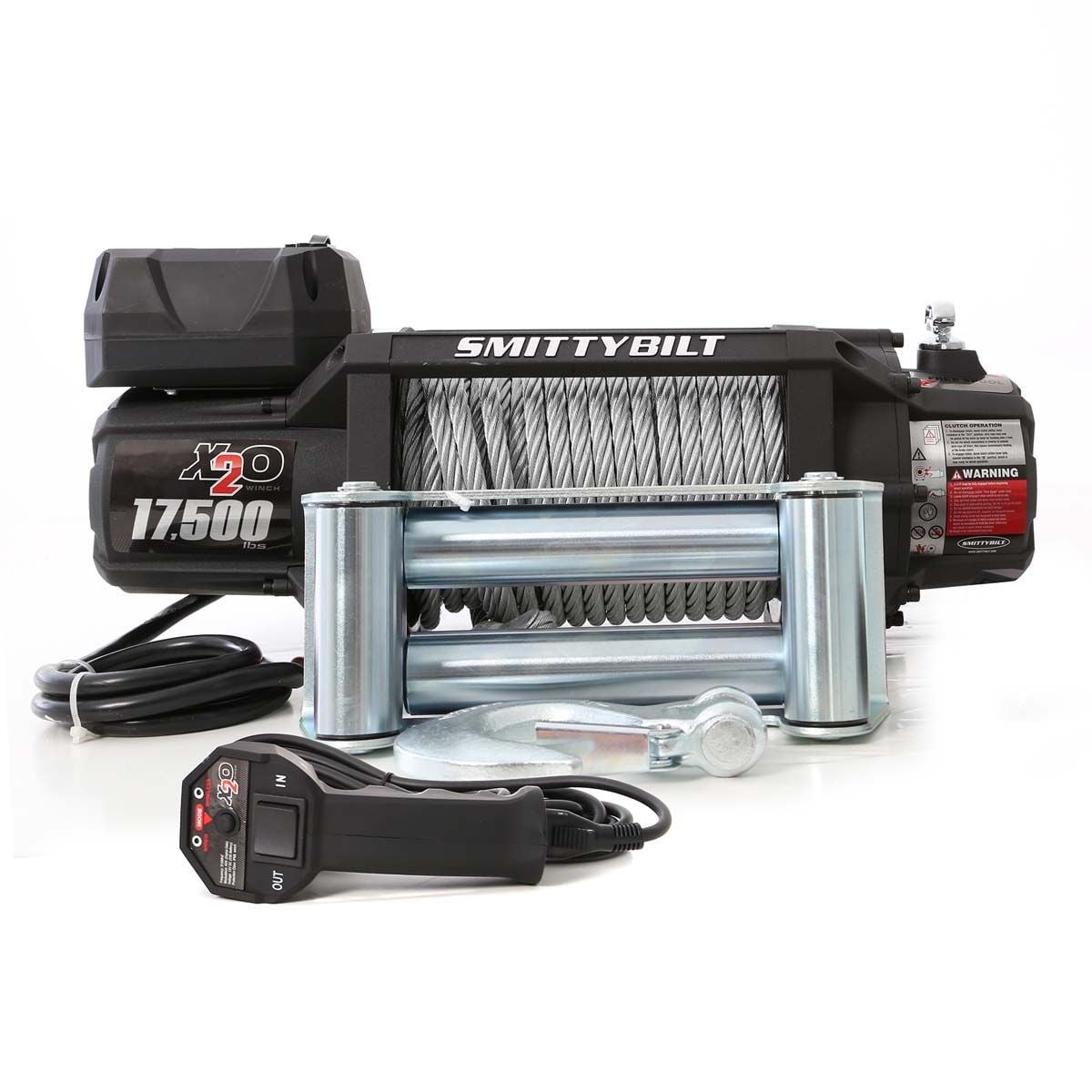

Smittybilt X2O Gen 2 Winch with Cable
The Smittybilt X2O Gen 2 Winches have been enhanced in almost every area for increased performance and trouble-free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O line features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that are lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.
| Part # | Description |
|---|---|
| SMB-97517 | Smittybilt X2O Gen 2 17,500 lb Winch with Steel Cable |
| SMB-98510 | Smittybilt X2O Gen 2 10,000 lb Comp Winch with Synthetic Rope |
The Smittybilt X2O Gen 2 Winches have been enhanced in almost every area for increased performance and trouble-free operation. Every X2O winch features a Series Wound 6.6 HP motor that is completely sealed, as well as a 3-Stage Planetary Gear System. The X2O line features a completely waterproof 500 AMP solenoid pack that can be mounted in 2 different locations, depending on your application needs. They also include a new controller that can be wired to the winch or unplugged for trouble-free wireless operation. The X2O also features optimized gear ratios that are lightning-fast line speeds. If you're looking for something more versatile, check out the X2O Comp Series, which includes all of the features and benefits of the original series, and adds a synthetic winch rope. And finally, all X2O winches are covered by the Smittybilt Lifetime Warranty, providing peace of mind as well as unparalleled performance. With all of these features, you can count on the X2O winch to be there every time, in every situation.
SMB-97517 (17,500 lb)
Features:
- Battery Leads: 25mm2, 72”(1.83m)1
- Finish: Textured Black
- Gear Ratio: 430:1
- Motor: 6.6hp Series Wound
- Mounting Bolt Pattern: 10.0” x 4.50”
- Cable Type: Steel, 98.5’ 3/8” Diameter
- 5-Year Electrical / Limited Lifetime Mechanical Warranty
- Brake: Automatic Out-Of-Drum
- Rated Line Pull: 17,500Lbs (7,954kgs) Single Line
- Remote Control: Included
- Recommended Battery: 650CCA Minimum for Winching
- Control: Remote Switch, 12’ (3.7m) lead
- Weight: 150.0Lbs (45.0Kgs)
- Waterproofing: IP68 Rating
- Fairlead: 4-Way Roller
- Drum Size: Diameter 3.45”
- Overall Dimensions: (L x W x H) 22.3” x 7.5” x 10.7”
- Clutch: Sliding Ring Gear
- Gear Train: 3-Stage Planetary
SMB-98510 (10,000 lb)
Features:
- Cable: 98.5’ 3/8” Diameter
- Drum Size: Diameter 2.5”
- Remote Control: Included
- Control: Remote Switch, 12’ (3.7m) lead
- Gear Ratio: 218:1
- Clutch: Sliding Ring Gear
- Overall Dimensions: (L x W x H) 22.3” x 5.4” x 9.4”
- Mounting Bolt Pattern: 10.0” x 4.50”
- Brake: Automatic Out-Of-Drum
- Recommended Battery: 650CCA Minimum for Winching
- Rated Line Pull: 10,000Lbs (4,545kgs) Single Line
- Battery Leads: 25mm2, 72”(1.83m)1
- Cable Type: Synthetic Rope
- Gear Train: 3-Stage Planetary
- Waterproofing: IP68 Rating
- Finish: Textured Black
- Fairlead: Hawse
- Weight: 67.0Lbs (30.4Kgs)
- Motor: 6.6hp Series Wound
- 5-Year Electrical / Limited Lifetime Mechanical Warranty
