Warn ZEON S Premium Winches
CALL TO ORDER
Please call/email to place an order for WARN products, current lead times can be extremely lengthy. 02/08/2022
| Part # | Model |
|---|---|
| WRN-89305 | ZEON 8-S Premium |
| WRN-89611 | ZEON 10-S Premium |
| WRN-95950 | ZEON 12-S Premium |

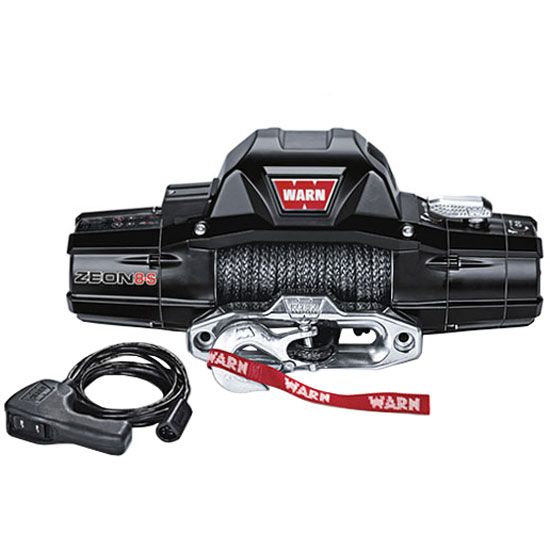

ZEON 8-S Premium (WRN-89305)
Don't let the good looks fool you. We've packed the ZEON 8-S winch with all the performance features off-roaders said they needed most. From a heat-dissipating brake down to an incredibly smooth planetary gear train, this winch is ready to hit the trail. The 8,000 lb. pulling capacity, combined with a fast line speed make this winch the perfect choice for Jeep and SUV trail rigs.
- 8,000 lb. (3630 kg) single-line pulling capacity
- Includes 100' of 3/8" WARN Spydura synthetic rope, which includes a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a matte aluminum hawse fairlead.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately*).
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty
Control Pack Relocation Kit Required to mount control box remotely from winch. WRN-89970 (Short kit) or WRN-89960 (Long kit)
Specifications:- Part number: 89305
- Rated line pull: 8000 lbs. (3630 kg) single-line
- Motor: 12V DC, series wound
- Electrical controls: Contactor
- Remote Control: Remote switch, 12' (3.7m) lead
- Geartrain: 3-stage planetary
- Gear ratio: 162:1
- Clutch (freespooling): Rotating ring gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
- Weight (kit shipping): 75 lbs. (34 kg)
- Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic
- Fairlead: Hawse
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 25mm gauge, 72" (1.83m)
- Finish: Satin-black powder coat
- Warranty: Limited lifetime
| Line Pull Lbs. (Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
|---|---|---|---|
| 0 | 35 (12.8) | 63 amps | 1/8000 (3629) |
| 2000 (910) | 17.2 (5.2) | 167 amps | 2/6777 (3074) |
| 4000 (1810) | 11.7 (3.6) | 255 amps | 3/5878 (2666) |
| 6000 (2720) | 8.5 (2.6) | 335 amps | 4/5189 (2353) |
| 8000 (3630) | 6.2 (1.9) | 413 amps |
Instruction Manual
Zeon 8-S Premium Specifications Guide
ZEON 10-S Premium (WRN-89611)
Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 lbs. single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.
- 10,000 lb. (4536 kg) single-line pulling capacity.
- Includes 100' of 3/8" WARN Spydura synthetic rope, a temperature-resistant sleeve on the first layer, a ballistic nylon sliding sleeve for abrasion resistance, and a matte aluminum hawse fairlead
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks. (Relocation kit required and sold separately*)
- Updated planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
- Satin-black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion. Improved winch sealing to keep the elements out.
- Large diameter winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Backed by the WARN Limited Lifetime Warranty
Control Pack Relocation Kit Required to mount control box remotely from winch. WRN-89970 (Short kit) or WRN-89960 (Long kit)
Specifications:- Part number: 89611
- Rated line pull: 10,000 lbs. (4536 kg) single-line
- Motor: 12V DC, series wound
- Electrical controls: Contactor
- Remote Control: Remote switch, 12' (3.7m) lead
- Geartrain: 3-stage planetary
- Gear ratio: 216:1
- Clutch (freespooling): Rotating ring gear
- Brake: Automatic mechanical cone
- Drum diameter/Length: 3.15"/9.0" (80mm/229mm)
- Weight (kit shipping): 75 lbs. (34 kg)
- Rope: 3/8" x 100' (9.5mm x 30.5m) Spydura synthetic
- Fairlead: Hawse
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72" (1.83m)
- Finish: Satin-black powder coat
- Warranty: Limited lifetime
| Line Pull Lbs. (Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
|---|---|---|---|
| 0 | 33 (10.27) | 62 amps | 1/10000 (4536) |
| 2000 (910) | 14.9 (4.5) | 144 amps | 2/8245 (3740) |
| 4000 (1810) | 11.2 (3.4) | 215 amps | 3/7014 (3181) |
| 6000 (2720) | 8.5 (2.6) | 280 amps | 4/6103 (2768) |
| 8000 (3630) | 6.5 (2.0) | 353 amps | |
| 10000 (4536) | 4.8 (1.5) | 409 amps |
Instruction Manual
Zeon 10-S Premium Specifications Guide
ZEON 12-S Premium (WRN-95950)
The WARN ZEON® has proven itself in the field, and among off roaders. Now you can get the 12,000 pound capacity ZEON winch with Spydura® Pro synthetic rope. The new ZEON 12-S winch trims weight but keeps plenty of muscle for the big jobs, and the toughest rescues. And the light, easy-to-handle synthetic rope makes any winching situation a bit easier. It's the perfect choice for heavily loaded off road vehicles.
- Legendary WARN reliability and performance; 12,000 lb. (5443 kg) capacity - perfect for the bigger vehicles.
- Unique exterior styling and symmetrical design give this winch a look that is advanced, capable, and strong.
- New-design planetary gear train and series-wound motor deliver fast, quiet, and reliable pulling power.
- Flat black powder-coated finish with stainless steel fasteners and clutch lever looks great and inhibits corrosion.
- Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks.
- Aluminum winch drum reduces rope wear, is light weight, and has an integrated rope anchor for easy rope installation.
- Robust aluminum structure is durable and helps dissipate heat.
- Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
- Contactor control for extreme reliability and weather resistance.
- Automatic mechanical cone brake holds the full rated load and offers excellent control while winching.
- Ultra-durable metal-reinforced rubberized corded remote with 12' lead.
- Includes 80' of 3/8" Spydura Pro synthetic rope and aluminum hawse failead with powder-coat finish.
- Proprietary and strongest-in-class Spydura Pro synthetic rope is found on many military vehicles. This rope features a urathane-coated 12-strand braid, heat treated under tension. A 20 ft. Nomex™ heat sleeve protects the rope on the layer nearest the drum.
Control Pack Relocation Kit Required to mount control box remotely from winch. WRN-89970 (Short kit) or WRN-89960 (Long kit)
Specifications- Part number: 95950
- Rated line pull: 12,000 lbs. (5443 kgs)
- Motor: 12V DC, Series Wound
- Electrical controls: Solenoid
- Remote Control: Remote switch, 12' (3.7m) Lead
- Geartrain: 3-Stage Planetary
- Gear ratio: 216:1
- Clutch (freespooling): Sliding Ring Gear
- Brake: Automatic Direct Drive Cone
- Drum diameter/Length: 2.5"/9.0" (6.4cm/23cm)
- Weight (kit shipping): 80 lbs. (36.3 kgs)
- Rope: 3/8" x 80' (9.52mm x 24.38m) Spydura Pro™ synthetic
- Fairlead: Aluminum hawse with powder-coat finish
- Recommended Battery: 650 CCA minimum for winching
- Battery leads: 2 gauge, 72" (1.83m)
- Finish: Powder coat over primer undercoating
- Warranty: Limited Lifetime
| Line Pull Lbs. (Kgs.) |
Line Speed FT./min(M/min.) |
Motor Current |
Pull by layer layer/Lbs(Kgs.) |
|---|---|---|---|
| 0 | 28.1 (8.6) | 66 amps | 1/12000 (5440) |
| 2000 (910) | 14.2 (4.3) | 141 amps | 2/9894 (4488) |
| 4000 (1810) | 9.3 (2.8) | 209 amps | 3/8117 (3682) |
| 6000 (2720) | 7.8 (2.4) | 272 amps | 4/7324 (3322) |
| 8000 (3630) | 6.4 (2.0) | 335 amps | |
| 10000 (3630) | 4.3 (1.3) | 401 amps | |
| 12000 (3630) | 3.3 (1.0) | 469 amps |
