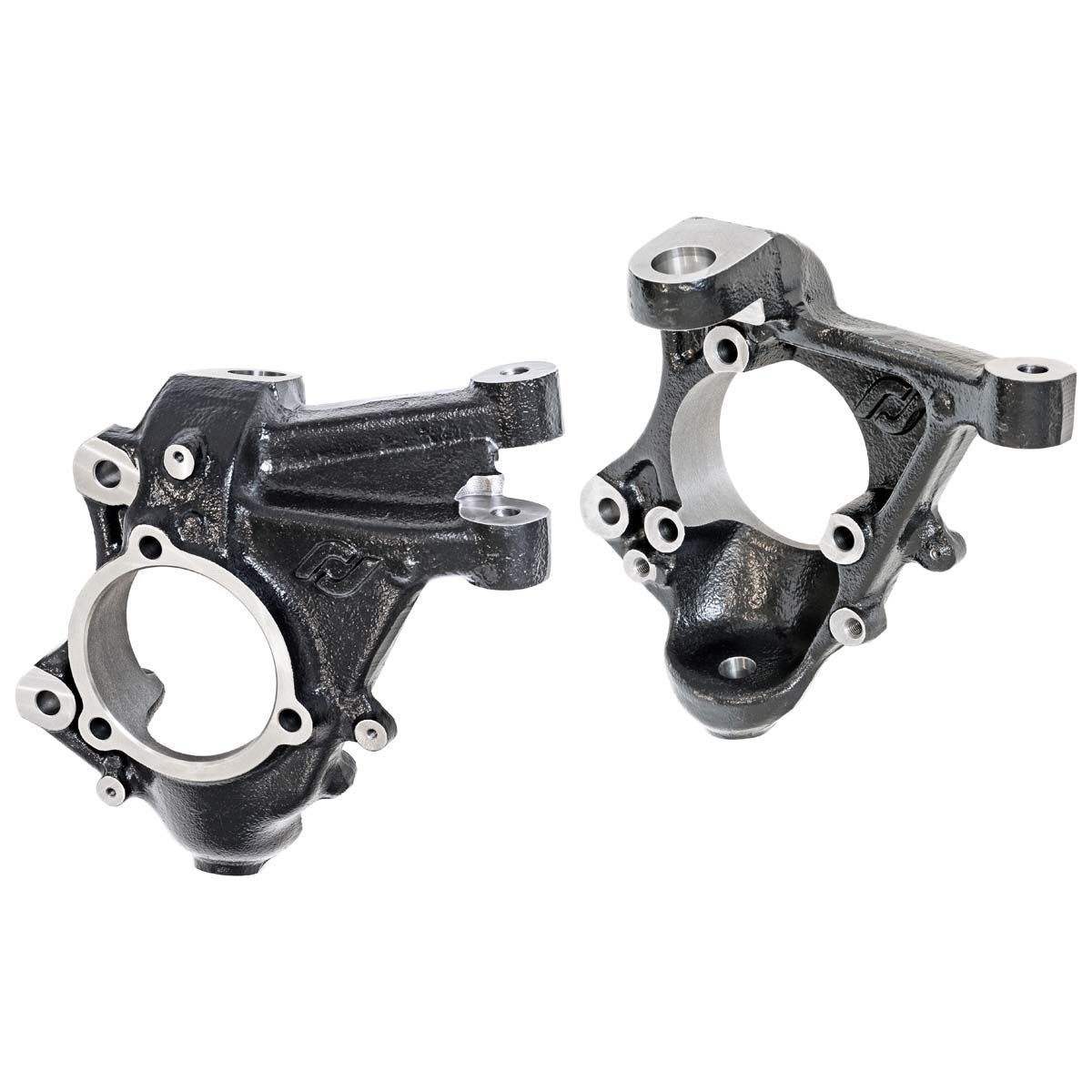

RockJock High-Steer Knuckles for Jeep JL / JT

The RockJock® High Steer Knuckles for all Jeep® JL & JT models are a game changer! Simply installing these knuckles raises your tie rod 2 3/4" and your drag link 2 1/2"!

These knuckles, for use on factory axles or axles that retain factory inner “C” knuckles, are intended for use with RockJock's other high steer components, to give you a package that provides all the necessary components to accommodate the higher steering location, adjust all geometry points and allow you to easily install a hydraulic assist steering ram, or to reinstall your stabilizer shock!

RockJock's knuckles are manufactured to greater than OEM standards in every way. Features include premium iron castings, gloss black finish and precise machining for a component that installs just like factory. Additionally, we've provided extra threaded steering stop bolt holes ahead of the axle to allow for a second set of stops to be added, giving you firm steering lock stops on both wheels at all times, easing strain on other components.

For best results, it is highly recommended that these knuckles be used in conjunction with one of RockJock's knuckle kits that include all of the other components to make this installation easy. RockJock's CE- 440000-101 kit includes RockJock's forged, high articulation Drag Link, RockJock's 42mm chromoly Tie Rod, as well as the bracket and clamp kits to allow you to install a hydraulic assist steering ram. RockJock also offer RockJock's CE- 440001-101 kit that includes the same Drag Link & Tie Rod, as well as the bracket and clamp kits to allow you to reinstall your steering stabilizer shock at a much higher, protected height.

Additionally, RockJock recommend the use of RockJock's CE-9120FJL forged, “T-shaped” front trac bar, so that all components nest together for maximum up travel as RockJock have intended.

Fitment:

• Jeep Wrangler JL Unlimited (4-door)
• Jeep Wrangler JL (2-door)
• Jeep Gladiator JT
• Fits all listed vehicles below, granted they retain the factory front differential, or any aftermarket differential that features factory spec. inner “C” knuckles.

Fitment Notes:

• For use on any factory JL or JT front differential, or any aftermarket replacement axle that features factory specification inner “C” knuckles
• Retains factory unit bearings, axle shafts, ball joints, steering stop bolts & brakes with dust shields.
• Intended to be used with a minimum of a 17” diameter wheel and up to a 6” wheel backspacing.
• A minimum of a 2.2” bump stop extension is mandatory to keep components from crashing under full articulation range conditions. See RockJock's CE- 107101-101 adjustable front bump stop kit for an easy to use solution.

Kit Includes:

• Left side high steer steering knuckle
• Right side high steer steering knuckle

Notes:

• For optimum performance of these knuckles, RockJock recommend purchasing them in one of RockJock's kits that provide the balance of the components for ease of use. See: CE- 440000-101 & CE- 440001-101
