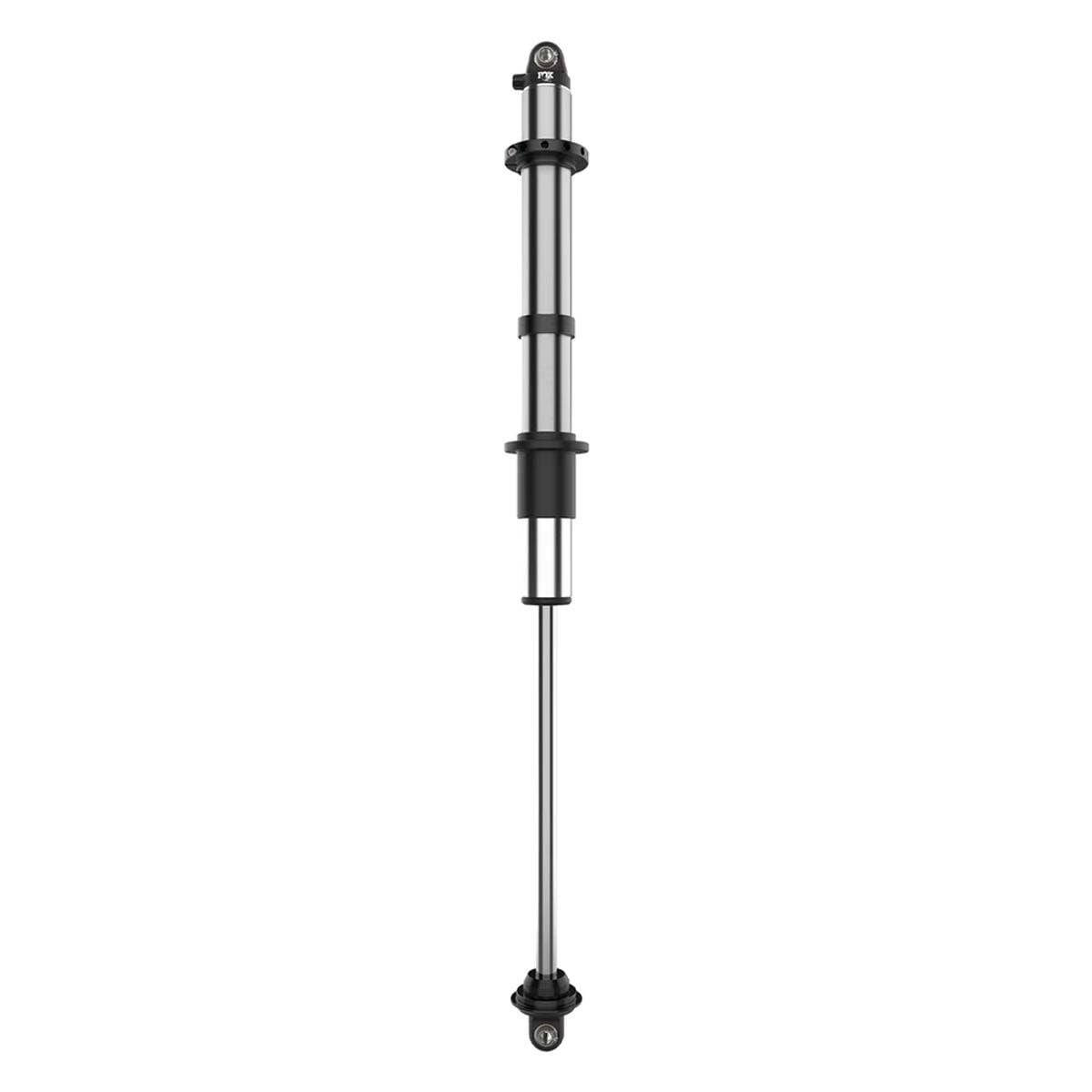

Fox 2.0" Performance Elite Coilover Emulsion Shocks, 5/8" Shaft

Coil-over shocks are the foundation of off-road suspension, providing a primary means to suspend the vehicle paired with adjustable preload and dual-rate spring crossover rings to dial in the perfect ride.

Fox's new Performance Elite Series 2.0 coil-overs deliver race-proven damping in a budget-conscious shock package, available in emulsion, piggyback, and remote reservoir configurations.

Specs:

• COATING - Clear Zinc Plated
• SHAFT - 5/8” Hard Chrome Plated 4130 Chromoly Steel
• PISTON - 8-Port Sintered Iron-Copper Graphite High-Flow Piston
• SEALS - Standard Buna Seal Kit
• HEIMS - -8 PFTE lined, heat treated spherical bearings
• FAV (Fox Air Valve) - Black Plastic FAV Cap

All coil-over shocks come with required spring hardware, including lower spring retainer and upper preload adjuster. Dual rate shocks also include the spring slider/divider and dual rate cross over rings.

Poly Performance stocks shocks as below, if you require anything different, we would be happy to assist you, please contact us.

• 1.25" mounting width with 1/2" bolt
• Uses 2.5" ID springs (Sold separately)
• Sold Individually, not as a pair or set
