SPC Jeep JL / JT Camber Sleeves

SPC-23400

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

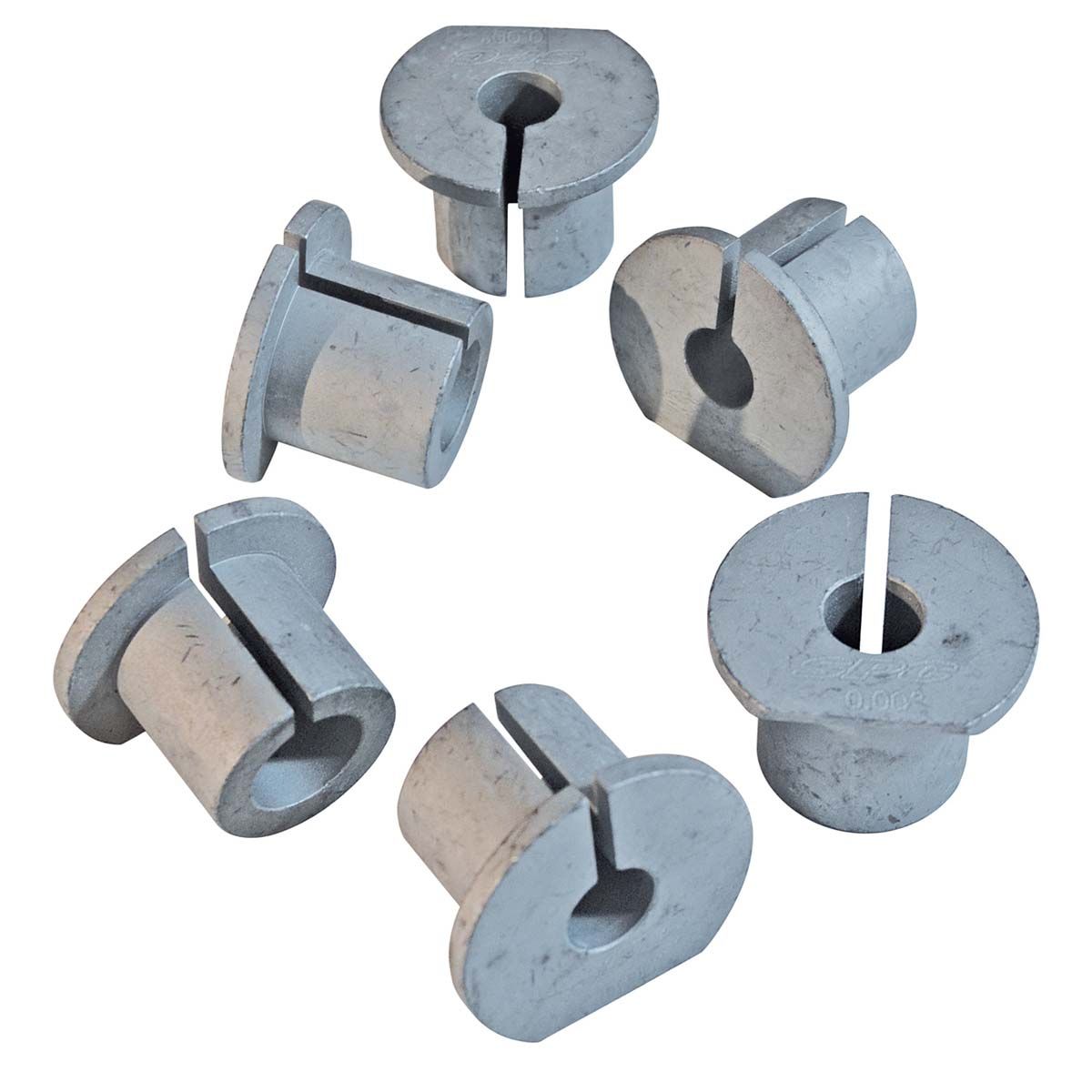

Camber Sleeve Set (6) – 1 each of: SPC-23401, SPC-23402, SPC-23403, SPC-23404, SPC-23405, SPC-23409

Includes:

• (1) SPC-23401 - +.25° (1/4°) Camber Sleeve
• (1) SPC-23402 - +.5° (1/2°) Camber Sleeve
• (1) SPC-23403 - +.75° (3/4°) Camber Sleeve
• (1) SPC-23404 - +1.0° (1°) Camber Sleeve
• (1) SPC-23405 - +1.25° (1-1/4°) Camber Sleeve
• (1) SPC-23409 - 0.0° (0°) Camber Sleeve

Front Adjustment Range: Camber 0°, +.25°, +.5°, +.75°, +1.0°, +1.25°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions

SPC-23401

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. This is a .25° sleeve. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

Front Adjustment Range: Camber +.25°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions

SPC-23402

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. This is a .50° sleeve. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

Front Adjustment Range: Camber +.5°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions

SPC-23403

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. This is a .75° sleeve. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

Front Adjustment Range: Camber +.75°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions

SPC-23404

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. This is a +1.00° sleeve. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

Front Adjustment Range: Camber +1.0°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions

SPC-23405

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. This is a 1.25° sleeve. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

Front Adjustment Range: Camber +1.25°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions

SPC-23409

Fix front camber issues on your Jeep Wrangler (JL / JT) by replacing the camber sleeve that links the upper ball joint to knuckle. This is a 0.0° sleeve. Simply determine what degree offset sleeve is already in the knuckle and replace it with a new offset. Most JL / JT’s are coming off the line with a +.25° sleeve, which means, for example, if you need .5° more camber and have a factory +.25° sleeve you will want to use the +.75° sleeve (p/n SPC-23403) to get in spec. If you work on a lot of Jeeps or are not sure what you will need, get the six (6) piece set, which includes one of each sleeve. SPC's camber sleeves feature a hex chromate-free finish certified to a 700 hour salt spray test.

Front Adjustment Range: Camber 0°
Installation time: .5 hr/side
Required: 1 kit per wheel

Installation Instructions
