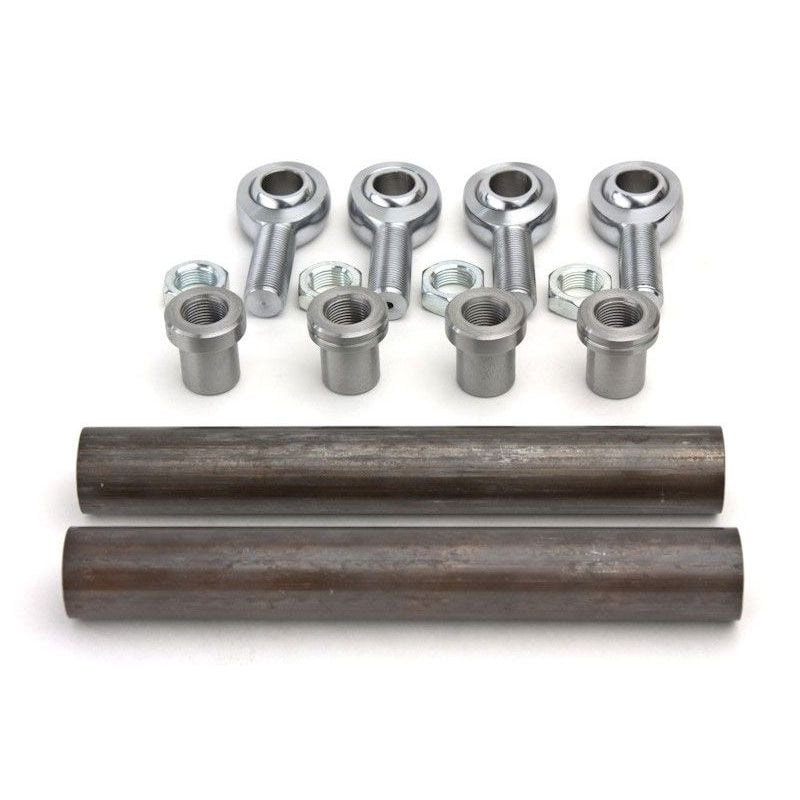

PSC Double Ended Cylinder Link Kit

These kits include everything needed to build Tie Rod Links for a full hydraulic steering installation.

You will need the PSC-SC16 Clevis Joint Kit to complete the connection at the steering cylinder.

KIT INCLUDE:

• (2) .5" OD X 1.0" ID X 10.0" Long DOM Tubing
• (4) Rod Ends; 2 Left, 2 Right
• (4) Tube Adapters; 2 Left, 2 Right
• (4) Jam Nuts; 2 Left, 2 Right

Some installations may require longer 14" length DOM Tubing, contact us to order.

TR120HD incudes:

• (2) REXMR12, 3/4" Right Hand Shank Rod Ends with 3/4" Bore Diameter
• (2) REXML12, 3/4" Left Hand Shank Rod Ends with 3/4" Bore Diameter
• (2) TA750-16R, 3/4" Right Hand Tube Adapters
• (2) TA750-16L, 3/4" Left Hand Tube Adapters
• (2) 3/4" Right Jam Nuts
• (2) 3/4" Left Jam Nuts
• (2) 1.5" OD X 1.0" ID X 10.0" Long DOM Tubing

 TR120XD includes:

• (2) REXMR12-14, 7/8" Right Hand Shank Rod Ends with 3/4" Bore Diameter
• (2) REXML12-14, 7/8" Left Hand Shank Rod Ends with 3/4" Bore Diameter
• (2) TA875-14R 7/8" Right Hand Tube Adapters
• (2) TA875-14L 7/8" Left Hand Tube Adapters
• (2) 7/8" Right Jam Nuts
• (2) 7/8" Left Jam Nuts
• (2) 1.5" OD X 1.0" ID X 10.0" Long DOM Tubing
