PSC Serpentine Power Steering Pump Pulley

Note: Actual product may differ from image shown.

PSC-PP3400

• 3.125" 15% Reduction Crankshaft Pulley for SBGM
• Included with following RACE USE Power Steering Kits:
• PSC-RK415B-P1
• PSC-RK415-P2

PSC-PP3401

3.9" 30% Reduction 6 Rib Serpentine Crankshaft Pulley for SBGM

Included with following RACE USE Power Steering Kits:

• RK430
• PSC-RK430B-13CP1
• PSC-RK430B-P1
• PSC-RK430H-13CP1
• PSC-RK530B-13CP1

PSC-PP2465

• This 4.5" diameter Billet Aluminum Overdrive Press-Fit 4 RIB Pulley will fit Type II/TC/CBR/CBX power steering pumps with a 5/8" driveshaft.
• Use this pulley with most Suzuki and Toyota applications to improve low engine RPM steering performance.
• 4.5 Inch Diameter
• 4 Rib Serpentine
• Fits Type II/TC/CBR/CBX power steering pumps with a 5/8" driveshaft

PSC-PP2401

• This 4.5" diameter Billet Aluminum Overdrive Press-Fit 6 Rib Serpentine Pulley will fit Type II/TC/CBR/CBX power steering pumps with a 5/8 Inch driveshaft.
• This pulley will benefit 1990-2006 Jeep 4.0L applications to improve low engine RPM steering performance.
• 4.5 Inch Diameter
• 6 Rib Serpentine
• Fits Type II/TC/CBR/CBX power steering pumps with a 5/8" driveshaft

PSC-PP2402

• This 5.5" diameter Billet Aluminum Overdrive Press-Fit 6 Rib Serpentine Pulley will fit Type II/TC/CBR/CBX power steering pumps with a 5/8 Inch driveshaft.
• This pulley will benefit 2012-18 Jeep 3.6L Pentastar to improve low engine RPM steering performance.
• Also, use with Jeep with GM LS1/LS2 engine conversion applications.
• 5.5 Inch Diameter
• 6 Rib Serpentine
• Fits Type II/TC/CBR/CBX power steering pumps with a 5/8" driveshaft

PSC-PP2450

• This 5.6" diameter Billet Aluminum Overdrive Press-Fit 6 Rib Serpentine Pulley will fit Saginaw "P" power steering pumps with a 3/4 Inch driveshaft.
• This pulley will benefit pre-Vortec (mid-1980s) GM serpentine systems to improve low engine RPM steering performance.
• 5.6 Inch Diameter
• 6 Rib Serpentine
• Fits Saginaw "P" power steering pumps with a 3/4 Inch driveshaft

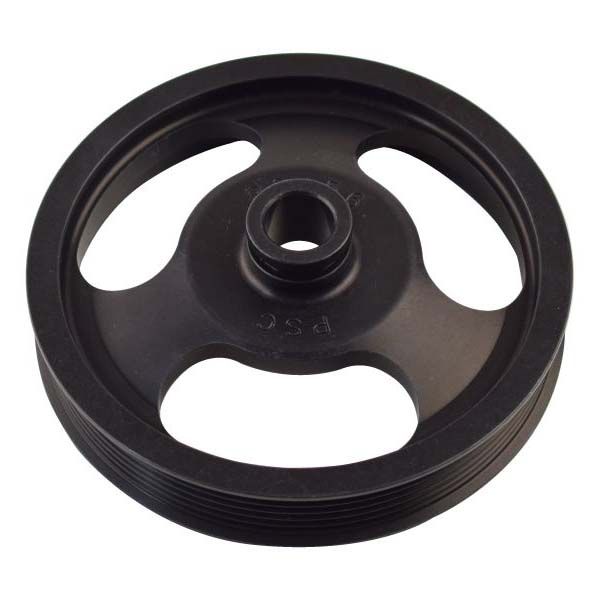

PSC-PP2456

• This 5.75" diameter Billet Aluminum Overdrive Press-Fit 6 RIB Pulley will fit Saginaw "P" power steering pumps with a 3/4 Inch driveshaft.
• Use this pulley with most GM Vortec applications to improve low crank RPM steering performance.
• 5.75 Inch Diameter
• 6 Rib Serpentine
• Fits Saginaw "P" power steering pumps with a 3/4 Inch driveshaft

PSC-PP3608

This 6.0" diameter Billet Aluminum Overdrive Press-Fit 6 Rib Serpentine Pulley will fit Type II/TC/CBR/CBX power steering pumps with a 5/8 Inch driveshaft.

This pulley will benefit LS engine conversion applications to improve low crank RPM steering performance.

• Billet Aluminum
• Spoke design for easy access to mounting bolts
• 6.0 Inch Diameter
• 6 Rib Serpentine
• 0.815 Inch Offset*
• Fits Type II/TC/CBR/CBX power steering pumps with a 5/8" driveshaft

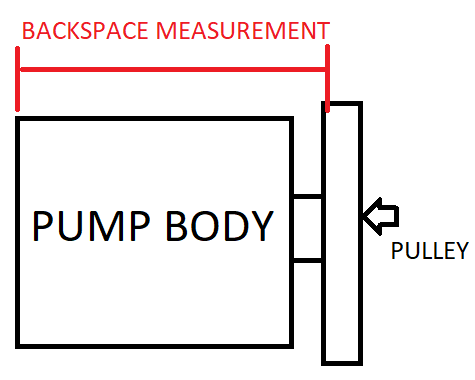

*Offset is calculated from edge of pump backplate to the FIRST groove of the pulley, as shown:

PSC-PP2444A

The Problem:

You have a project with a GM LS based truck engine (5.3L, 5.7L, 6.0L, or 6.2L) and the low engine RPM power steering performance is suffering. Also, it is a time-consuming pain to install a pulley on the pump after the pump has been installed in the vehicle...there is no room to get a pulley installer tool in that tight space.

The Solution:

This 6.0" diameter Billet Aluminum Overdrive Press-Fit TWO PIECE 6 Rib Serpentine Pulley will fit Saginaw "P" power steering pumps with a 3/4 Inch driveshaft. TWO PIECE construction allows the pump to be installed with a hub already pressed onto the pump driveshaft and then the pulley body simply bolts onto the hub. No more fighting with a pulley installer tool after the pump is mounted in the vehicle.

• 6.0 Inch Diameter
• 6 Rib Serpentine, TWO PIECE Construction
• Saginaw "P" power steering pumps with a 3/4 Inch driveshaft
