Longacre Steering Wheel Quick Disconnects

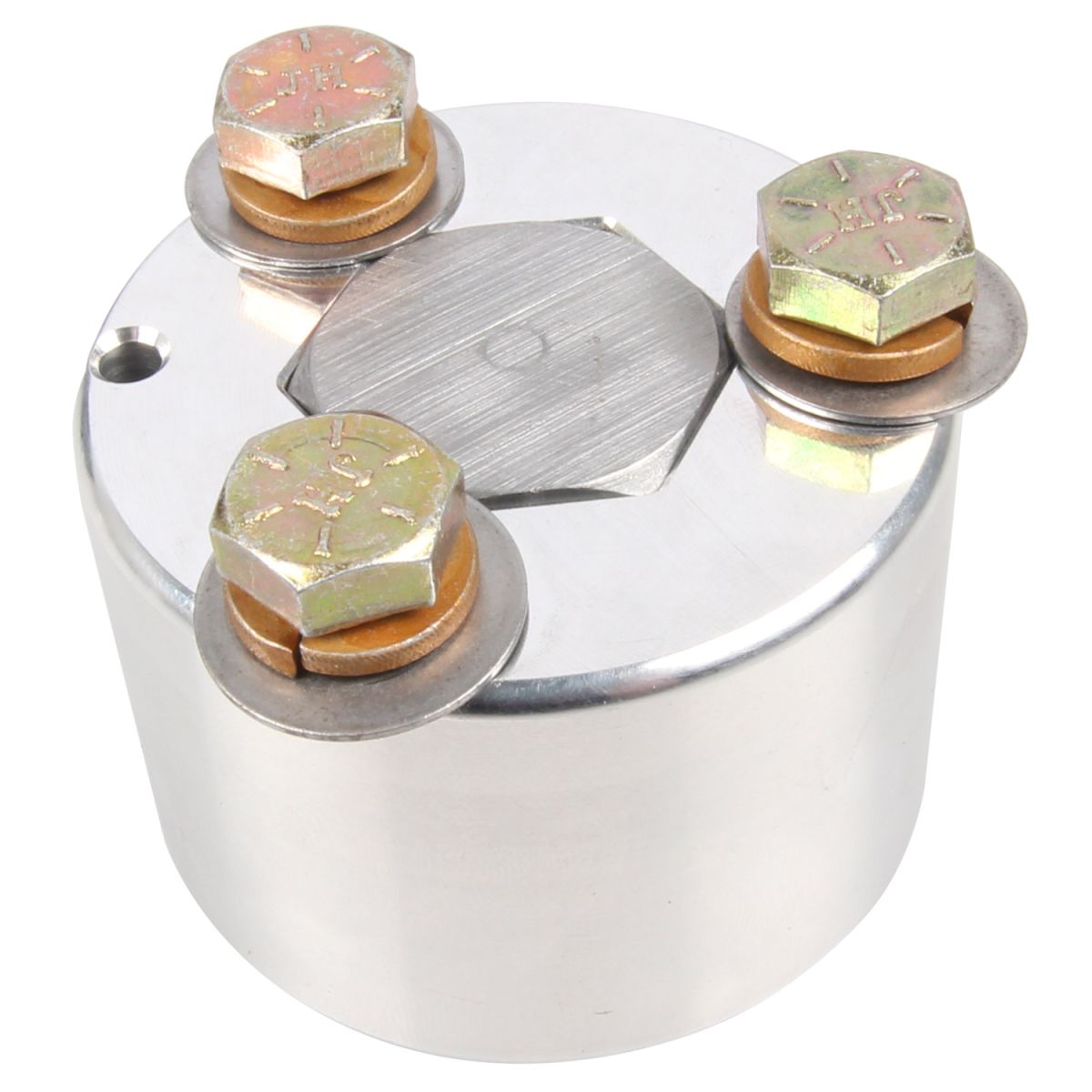

Hex Hub Quick Disconnect (LON-56600)

• Hex Hub - push button release
• Welds to 3/4" or 5/8" steering shaft
• Aluminum hub
• Includes a second safety groove
• 3 bolt pattern - 1.5" center bolt to center bolt

• Style: Hex
• Material: Aluminum
• Release Type: Push button
• Diameter of Face: 2.221"
• Bolt Pattern: 3 bolt
• Spacing Between Bolts: 1.5" center bolt to center bolt
• Bolt Size: 5/16"-18 x .75"
• Distance Center Bolt to Center Hub: .88"
• Weight: .85 lbs including bolts and shaft

• Style: Hex
• Material: Steel
• Safety Grooves: 2
• Length: 1.824"
• Diameter: 1.138" at widest part of hex

Precision Fit Splined Hub Quick Disconnect(LON-56605)

Precision fit splined hub for better steering control

Any play in the steering - including the hub - takes away control by the driver letting the car 'wander around'. This precision hub has a micro-finished spud and Hard Anodized splined hub for a super tight fit, yet is easy to remove and install.

Plus, there are multiple sets of mounting holes so you can 'clock' your wheel 3 times closer.

For safety there are 2 sets of retaining grooves. If you don't get the ring engaged it will catch on the second safety groove rather than come off on the track.

The steel 'spuds' can be installed on both 3/4" and also 5/8" shafts.

• Spline hub - pull ring release with double safety grooves
• Welds to 3/4" or 5/8" steering shaft
• Aluminum hub
• 3 bolt pattern - 1.5" center bolt to center bolt

Weight: .85 lbs. including bolts
