Timbren SES Suspension Enhancement System Rear Kit for 2002-2026 Dodge Ram 1500/2500/3500

Part #	Description
TBN-DR1500DQ	Timbren SES Suspension Enhancement System for 2009+ RAM 1500 Crew Cab & Quad Cab  - Rear Kit
TBN-DR2500CA	Timbren SES Suspension Enhancement System for 2002-2013 Dodge Ram 1500/2500 - Rear Kit
TBN-DR2500D	Timbren SES Suspension Enhancement System for 2014-2026 RAM 2500 - Rear Kit
TBN-DR3500CA	Timbren SES Suspension Enhancement System for 2003-2026 Dodge Ram 3500 - Rear Kit
TBN-DRTT1500	Timbren SES Suspension Enhancement System for 2009-2025 Dodge Ram 1500 - Rear Severe Service Kit



TBN-DR1500DQ

Unstable loads while towing and hauling don’t just make for an uncomfortable ride. Difficult handling, rear sag, and corner sway create dangerous driving conditions — for you, your passengers, and other vehicles.

Whether you’re towing your RV across the country or hauling hay down the highway, Timbren's Timbren RAM 1500 SES kit provides a simple, effective solution to improve load stability and ride quality. Designed for 2009-present RAM 1500 crew cab and quad cab models, this suspension upgrade eliminates sag and enhances control for a smoother, safer ride.

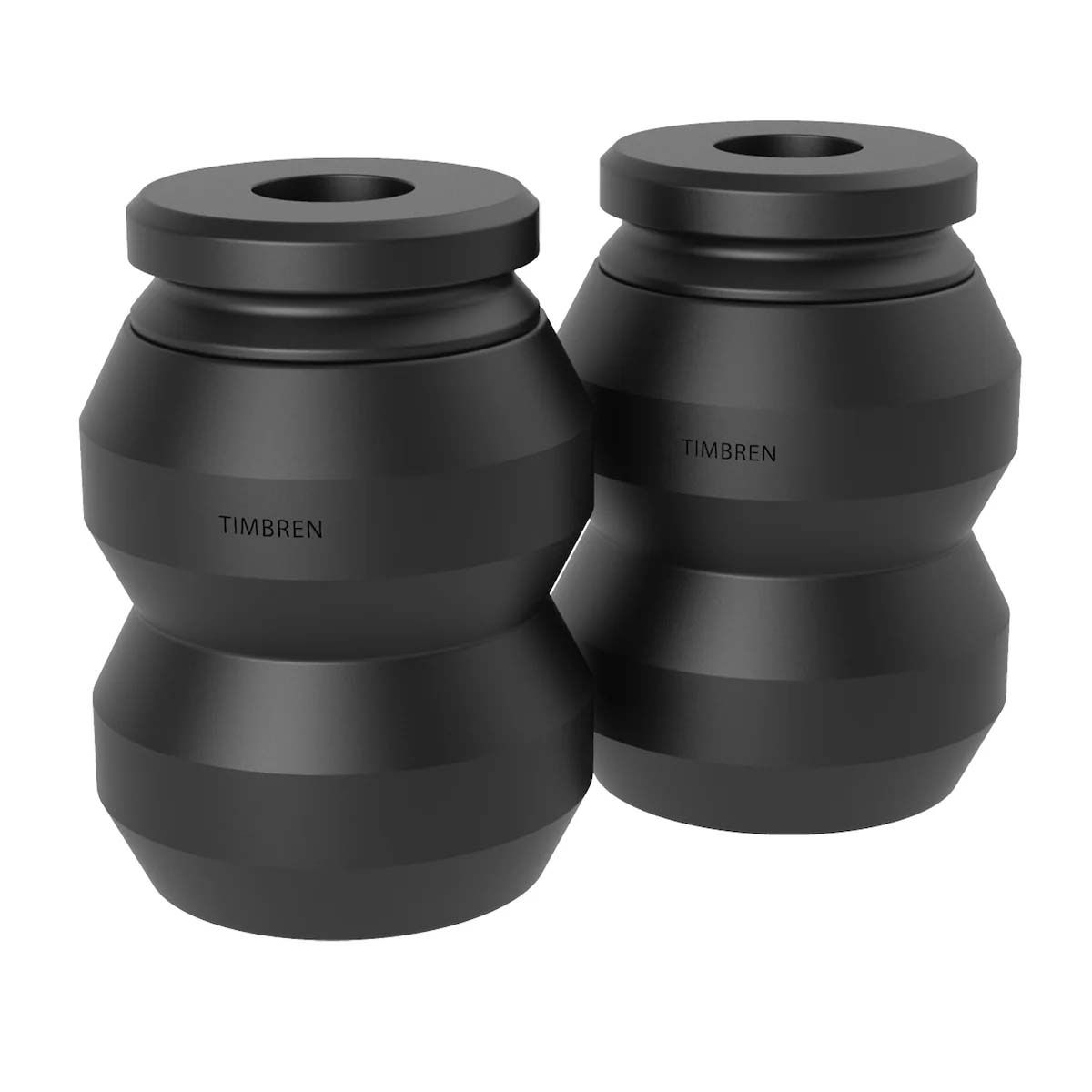

How? Timbren's Aeon® rubber springs deliver a progressive spring rate. As load increases, Timbren's rubber springs push back harder, eliminating squat, sway, and roll. After installation, there should be a ½” to 1 ½” gap between the rubber spring and vehicle’s frame — meaning you’ll enjoy a comfortable unloaded ride, too.

What makes Timbren SES kits different from other RAM 1500 suspension enhancement systems? Unlike air bags, Timbren's kits require zero post-installation maintenance. And unlike other systems, you can install and haul in under 30 minutes, right from your driveway.

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 8600 lbs
• Overall kit height = 5.5”

Fitment:

• 2009-2010 Dodge RAM 1500 2WD/4WD Crew Cab, Quad Cab
• 2011-2026 RAM 1500 2WD/4WD Crew Cab, Quad Cab
• 2019-2025 RAM 1500 Classic 2WD/4WD Crew Cab, Quad Cab

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.
• Does not fit the following RAM models with factory air ride suspension
• RAM 1500-All New (2019- Present)- Regular, Crew Cab & Quad Cab
• RAM 1500 Classic (2019- Present)- Regular, Crew Cab & Quad Cab
• RAM 1500 (2009-2018)- Regular, Crew Cab & Quad Cab

---

TBN-DR2500CA

Unstable loads while towing and hauling don’t just make for an uncomfortable ride. Difficult handling, rear sag, and corner sway create dangerous driving conditions — for you, your passengers, and other vehicles.

Whether you’re towing your RV across the country or hauling hay down the highway, Timbren's Timbren SES kits level your load, making for a safe, controlled ride so smooth, you might forget you’re towing altogether.

How? Timbren's Aeon® rubber springs deliver a progressive spring rate. As load increases, Timbren's rubber springs push back harder, eliminating squat, sway, and roll. After installation, there should be a ½” to 1 ½” gap between the rubber spring and vehicle’s frame — meaning you’ll enjoy a comfortable unloaded ride, too.

What makes Timbren SES kits different from other suspension enhancement systems? Unlike air bags, Timbren's kits require zero post-installation maintenance. And unlike other systems, you can install and haul in under 30 minutes, right from your driveway.

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated for 6000lbs
• Kit height without 1” spacer = 6.35”
• Kit height with 1” spacer = 7.35”

Fitment:

• 2002-2005 Dodge RAM 1500 2WD/4WD Mega Cab
• 2003-2010 Dodge RAM 2500 2WD/4WD Laramie, ST, STL, SXT
• 2003-2010 Dodge RAM 2500 4WD Power Wagon
• 2011-2013 RAM 2500 2WD/4WD Laramie, Tradesman
• 2011-2013 RAM 2500 4WD Power Wagon

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.

---

TBN-DR2500D

Unstable loads while towing and hauling don’t just make for an uncomfortable ride. Difficult handling, rear sag, and corner sway create dangerous driving conditions — for you, your passengers, and other vehicles.

Whether you’re towing your RV across the country or hauling hay down the highway, Timbren's Timbren SES kits level your load, making for a safe, controlled ride so smooth, you might forget you’re towing altogether.

How? Timbren's Aeon® rubber springs deliver a progressive spring rate. As load increases, Timbren's rubber springs push back harder, eliminating squat, sway, and roll. After installation, there should be a ½” to 1 ½” gap between the rubber spring and vehicle’s frame — meaning you’ll enjoy a comfortable unloaded ride, too.

What makes Timbren SES kits different from other suspension enhancement systems? Unlike air bags, Timbren's kits require zero post-installation maintenance. And unlike other systems, you can install and haul in under 30 minutes, right from your driveway.

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 8600 lbs
• Kit height without 1” spacer = 5.75”
• Kit height with 1” spacer = 6.75”

Fitment:

• 2014-2016 RAM 2500 2WD/4WD Big Horn, Laramie, Limited, Tradesman
• 2014-2016 RAM 2500 4WD Power Wagon
• 2016-2026 RAM 2500 2WD/4WD Limited
• 2021-2026 RAM 2500 2WD/4WD Limited Longhorn
• 2023-2026 RAM 2500 2WD/4WD Rebel

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.

---

TBN-DR3500CA

Unstable loads while towing and hauling don’t just make for an uncomfortable ride. Difficult handling, rear sag, and corner sway create dangerous driving conditions — for you, your passengers, and other vehicles.

Whether you’re towing your RV across the country or hauling hay down the highway, Timbren's Timbren SES kits level your load, making for a safe, controlled ride so smooth, you might forget you’re towing altogether.

How? Timbren's Aeon® rubber springs deliver a progressive spring rate. As load increases, Timbren's rubber springs push back harder, eliminating squat, sway, and roll. After installation, the rubber spring will be in contact with the vehicle’s frame. This contact won’t affect ride quality — you’ll still enjoy a comfortable unloaded ride, too.

What makes Timbren SES kits different from other suspension enhancement systems? Unlike air bags, Timbren's kits require no post-installation maintenance. And unlike other systems, you can install and haul in under 30 minutes, right from your driveway.

Features:

• Reduces sag, sway, and roll when towing and hauling
• Comfortable ride, loaded or unloaded
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 8600 lbs
• Kit height without 1” spacer = 6.43”
• Kit height with 1” spacer = 7.43”

Fitment:

• 2003-2010 Dodge RAM 3500 2WD/4WD
• 2003-2010 Dodge RAM 3500 2WD/4WD Cab & Chassis
• 2011-2026 Dodge RAM 3500 2WD/4WD
• 2011-2026 Dodge RAM 3500 2WD/4WD Cab & Chassis

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.

---

TBN-DRTT1500

Maybe you’ve been there: white knuckles gripping the steering wheel while your truck camper sways back and forth down the highway. Add in some cross-winds, and keeping your vehicle centered on the road just became the kind of drive that makes you second-guess your trip altogether.

Hauling top-heavy loads like truck campers or salt spreaders requires more stability than other towing or hauling solutions. This is when you need Timbren's Timbren SES severe service kits.

So what’s the difference between Timbren's severe service kits and classic Timbren SES kits?

Both products feature the progressive spring rate of Timbren's Aeon® rubbers springs. As load increases, Timbren's rubber springs push back harder, eliminating squat, sway, and roll.

But Timbren's Timbren SES severe service kits use a single-convoluted Aeon® spring. Designed exclusively for truck campers, these springs resist weight more aggressively to keep your vehicle level and your ride smooth. The result? No more white-knuckling it down the highway — you get a safe, stable handling of your top-heavy load.

After installation, there should be a ½” to 1 ½” gap between the rubber spring and vehicle’s frame — meaning you’ll enjoy a comfortable unloaded ride.

What makes Timbren SES kits different from other suspension enhancement systems? Unlike air bags, Timbren's kits require zero post-installation maintenance. Unlike foam, these are durable enough to last under all your loads, in any weather. And unlike other systems, you can install and haul in under 30 minutes, right from your driveway.

Features:

• Made exclusively for top-heavy applications that require maximum stability, like truck campers or salt spreaders
• Reduces sag, sway, and roll when hauling top-heavy loads
• Comfortable unloaded ride
• DIY installation
• Zero post-installation maintenance

Specs:

• Rated Capacity: 7000 lbs
• Overall kit height = 5.75”

Fitment:

• 2009-2010 Dodge RAM 1500 2WD/4WD Crew Cab, Quad Cab, Regular Cab,
• 2011-2026 RAM 1500

Notes:

• Even though you’re increasing the spring rate by adding this upgrade, this does not increase the GVWR (Gross Vehicle Weight Rating). Please make sure that the load does not exceed the GVWR set by the manufacturer.
• Does not fit the following RAM models with factory air ride suspension
• RAM 1500-All New (2019- Present)- Regular, Crew Cab & Quad Cab
• RAM 1500 Classic (2019- Present)- Regular, Crew Cab & Quad Cab
• RAM 1500 (2009-2018)- Regular, Crew Cab & Quad Cab
