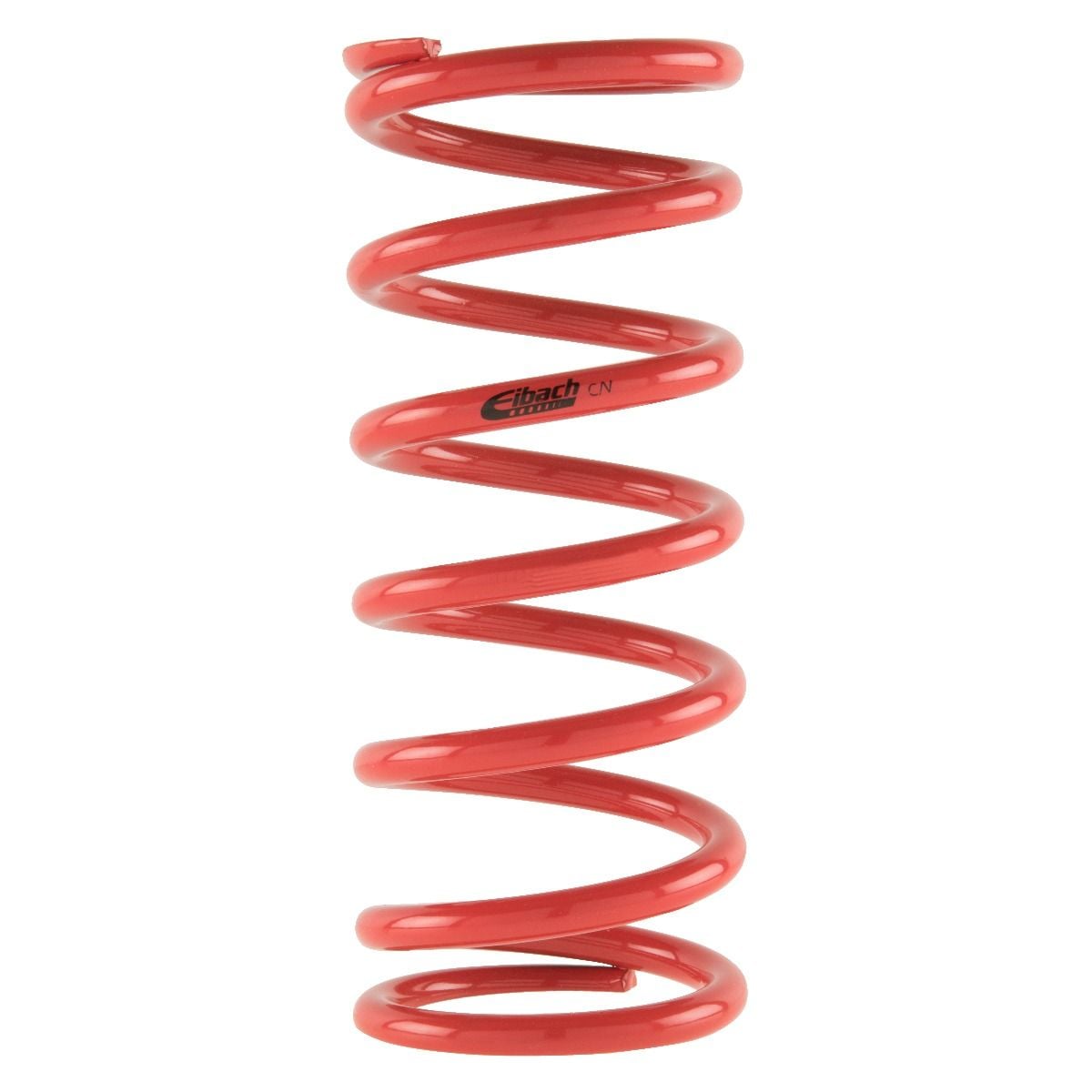

Eibach 10" Long 2.5" ID Coil Springs (Red)

Name: Eibach 10" Long 2.5" ID Coil Springs (Red)
Brand: Eibach Springs
Price: 85.00 USD
Availability: OutOfStock

From $85.00

Only %1 left

SKU

16793_PARENT_ITEM

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated
Part numbers ending 'S' = Silver Finish

<---->

Part #	Length inch/mm		Inside Diameter inch/mm		Rate lbs/inch kg/mm N/mm			Block Height inch/mm		Travel inch/mm		Load at Block Height lbs/N
1000.250.0100	10.00	254	2.50	64	100	1.79	18	3.28	83	6.72	171	671	2,985
1000.250.0150	10.00	254	2.50	64	150	2.68	26	3.52	89	6.48	165	972	4,324
1000.250.0162	10.00	254	2.50	64	162	2.89	28	3.61	92	6.39	162	1,035	4,604
1000.250.0175	10.00	254	2.50	64	175	3.13	31	3.32	84	6.68	170	1,169	5,200
1000.250.0200	10.00	254	2.50	64	200	3.57	35	3.39	86	6.61	168	1,323	5,885
1000.250.0225	10.00	254	2.50	64	225	4.02	39	3.39	86	6.61	168	1,487	6,614
1000.250.0250	10.00	254	2.50	64	250	4.46	44	3.72	94	6.28	160	1,569	6,979
1000.250.0275	10.00	254	2.50	64	275	4.91	48	3.77	96	6.23	158	1,715	7,629
1000.250.0300	10.00	254	2.50	64	300	5.36	53	3.85	98	6.15	156	1,844	8,202
1000.250.0325	10.00	254	2.50	64	325	5.80	57	3.94	100	6.06	154	1,971	8,767
1000.250.0350	10.00	254	2.50	64	350	6.25	61	4.02	102	5.98	152	2,092	9,306
1000.250.0375	10.00	254	2.50	64	375	6.70	66	4.11	104	5.89	150	2,208	9,822
1000.250.0400	10.00	254	2.50	64	400	7.14	70	4.24	108	5.76	146	2,302	10,240
1000.250.0450	10.00	254	2.50	64	450	8.04	79	4.16	106	5.84	148	2,630	11,699
1000.250.0500	10.00	254	2.50	64	500	8.93	88	4.43	113	5.57	141	2,786	12,393
1000.250.0550	10.00	254	2.50	64	550	9.82	96	4.43	113	5.57	141	3,061	13,616
1000.250.0600	10.00	254	2.50	64	600	10.71	105	4.74	120	5.26	134	3,158	14,047
1000.250.0650	10.00	254	2.50	64	650	11.61	114	4.77	121	5.23	133	3,401	15,128
1000.250.0700	10.00	254	2.50	64	700	12.50	123	4.80	122	5.20	132	3,644	16,209
1000.250.0750	10.00	254	2.50	64	750	13.39	131	4.85	123	5.15	131	3,860	17,170
1000.250.0800	10.00	254	2.50	64	800	14.29	140	4.91	125	5.09	129	4,074	18,122
