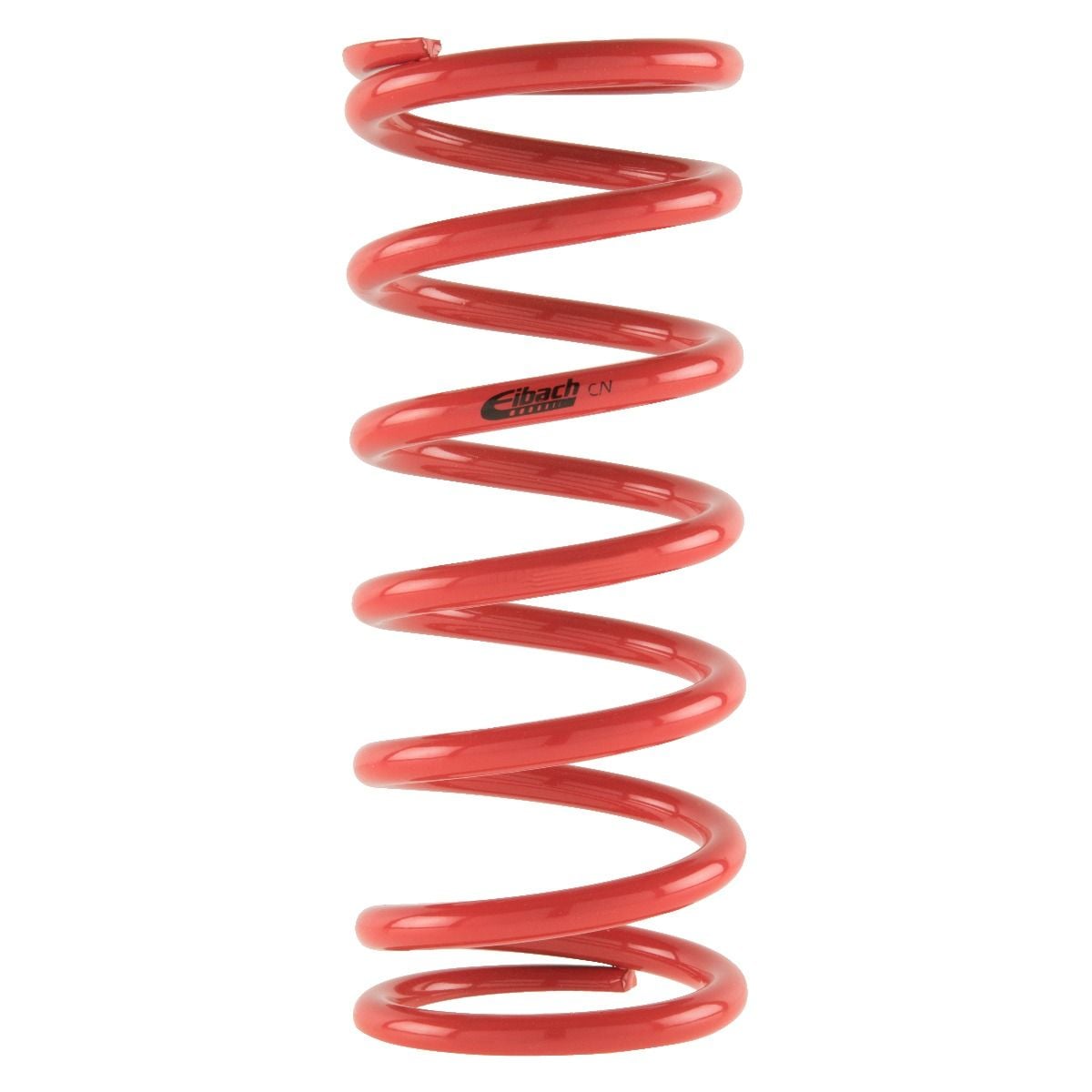

Eibach 6" Long 2.5" ID Coil Springs (Red)

Name: Eibach 6" Long 2.5" ID Coil Springs (Red)
Brand: Eibach Springs
Price: 80.00 USD
Availability: OutOfStock

Eibach6" Long 2.5" ID Coil Springs (Red)

From $80.00

Only %1 left

SKU

108_PARENT_ITEM

Ultra-lightweight for reduced unsprung mass
Maximum deflection, in combination with smallest block heights
Exceptional block resistance and durability
Precision plan parallel and square end configurations under unloaded and loaded conditions
Lowest side loads with load center ideally located relative to spring axis
Precision tolerances--the tightest in the industry
Highest linearity and guaranteed rate consistency
Each spring individually tested and rated

Part #	Length inch/mm		Inside Diameter inch/mm		Rate lbs/inch kg/mm N/mm			Block Height inch/mm		Travel inch/mm		Load at Block Height lbs/N
0600.250.0400	6.00	152	2.50	64	400	7.14	70	2.40	61	3.60	91	1,439	6,401
0600.250.0450	6.00	152	2.50	64	450	8.04	79	2.39	61	3.61	92	1,624	7,224
0600.250.0500	6.00	152	2.50	64	500	8.93	88	2.38	60	3.62	92	1,809	8,047
0600.250.0550	6.00	152	2.50	64	550	9.82	96	2.44	62	3.56	90	1,960	8,718
0600.250.0600	6.00	152	2.50	64	600	10.71	105	2.68	68	3.32	84	1,990	8,852
0600.250.0650	6.00	152	2.50	64	650	11.61	114	2.69	68	3.31	84	2,149	9,559
0600.250.0700	6.00	152	2.50	64	700	12.50	123	2.57	65	3.43	87	2,397	10,662
0600.250.0725	6.00	152	2.50	64	725	12.94	127	2.5	64	3.5	89	2,534	11,273
0600.250.0750	6.00	152	2.50	64	750	13.39	131	2.65	67	3.35	85	2,510	11,165
0600.250.0800	6.00	152	2.50	64	800	14.29	140	2.71	69	3.29	84	2,634	11,717
0600.250.0900	6.00	152	2.50	64	900	16.07	158	2.87	73	3.13	80	2,820	12,544
0600.250.1000	6.00	152	2.50	64	1,000	17.86	175	2.92	74	3.08	78	3,076	13,683
0600.250.1100	6.00	152	2.50	64	1,100	19.64	193	3.00	76	3.00	76	3,295	14,657
0600.250.1150	6.00	152	2.50	64	1,150	20.54	201	3.11	79	2.89	73	3,318	14,759
0600.250.1200	6.00	152	2.50	64	1,200	21.43	210	3.03	77	2.97	75	3,562	15,844
0600.250.1300	6.00	152	2.50	64	1,300	23.22	228	3.19	81	2.81	71	3,634	16,165
