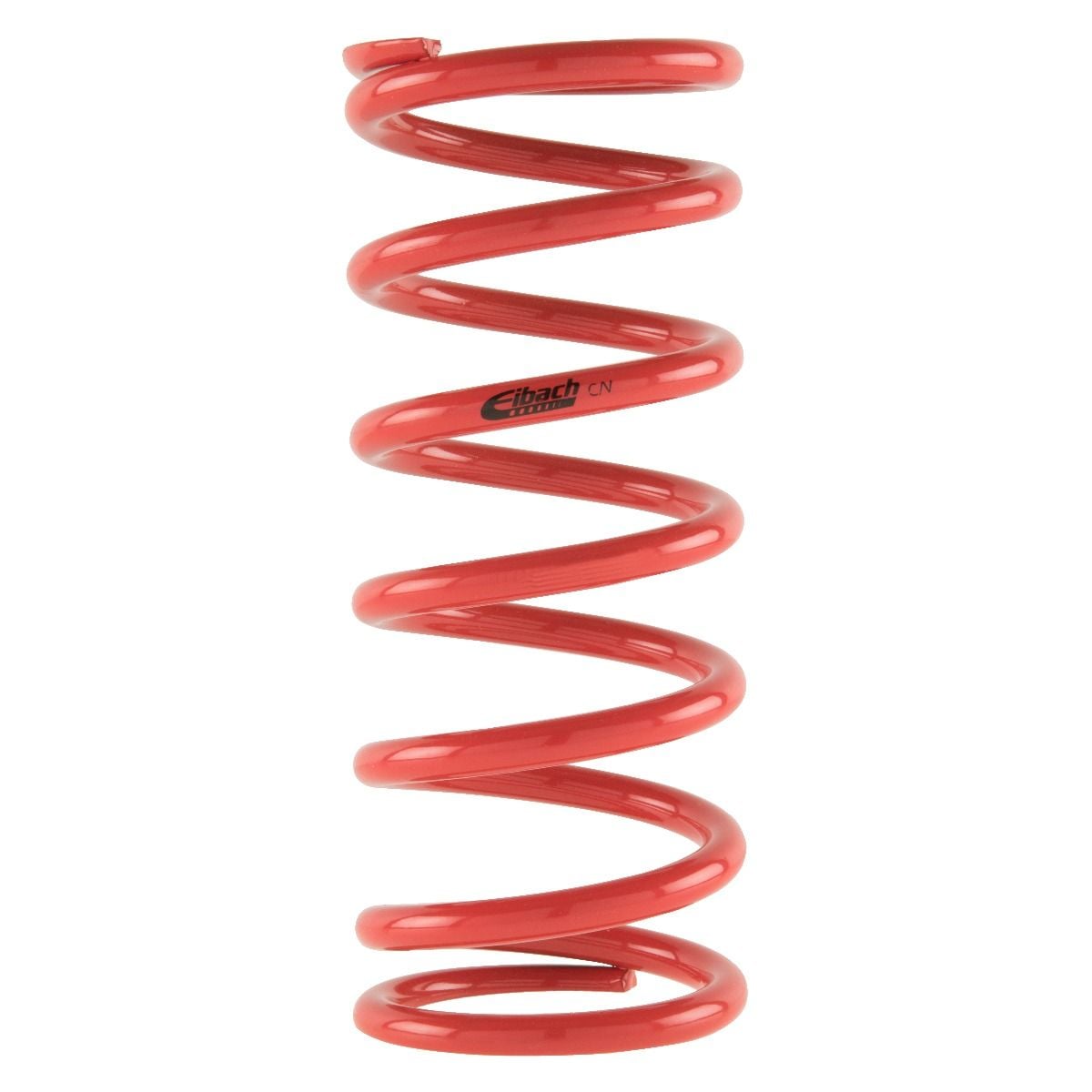

Eibach 7" Long 2.5" ID Coil Springs (Red)

Name: Eibach 7" Long 2.5" ID Coil Springs (Red)
Brand: Eibach Springs
Price: 85.00 USD
Availability: OutOfStock

Eibach7" Long 2.5" ID Coil Springs (Red)

From $85.00

Only %1 left

SKU

16785_PARENT_ITEM

Ultra-Lightweight for Reduced Unsprung Mass
Maximum Deflection in Combination with Smallest Block Heights
Exceptional Block Resistance and Durability
Precision Tolerances - The Tightest in the Industry
Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
Each Spring Individually Tested and Rated

<---->

Part #	Length inch/mm		Inside Diameter inch/mm		Rate lbs/inch kg/mm N/mm			Block Height inch/mm		Travel inch/mm		Load at Block Height lbs/N
0700.250.0275	7.00	178	2.50	64	275	4.91	48	2.54	65	4.46	113	1,226	5,453
0700.250.0300	7.00	178	2.50	64	300	5.36	53	2.48	63	4.52	115	1,356	6,032
0700.250.0325	7.00	178	2.50	64	325	5.80	57	2.54	65	4.46	113	1,449	6,445
0700.250.0350	7.00	178	2.50	64	350	6.25	61	2.65	67	4.35	110	1,525	6,784
0700.250.0400	7.00	178	2.50	64	400	7.14	70	2.81	71	4.19	106	1,675	7,451
0700.250.0450	7.00	178	2.50	64	450	8.04	79	2.81	71	4.19	106	1,884	8,380
0700.250.0500	7.00	178	2.50	64	500	8.93	88	2.81	71	4.19	106	2,096	9,323
0700.250.0550	7.00	178	2.50	64	550	9.82	96	3.07	78	3.93	100	2,161	9,613
0700.250.0600	7.00	178	2.50	64	600	10.71	105	3.09	78	3.91	99	2,348	10,444
0700.250.0650	7.00	178	2.50	64	650	11.61	114	3.15	80	3.85	98	2,504	11,138
0700.250.0700	7.00	178	2.50	64	700	12.50	123	3.20	81	3.80	97	2,660	11,834
0700.250.0750	7.00	178	2.50	64	750	13.39	131	3.23	82	3.78	96	2,813	12,511
0700.250.0800	7.00	178	2.50	64	800	14.29	140	3.35	85	3.65	93	2,918	12,978
0700.250.0900	7.00	178	2.50	64	900	16.07	158	3.51	89	3.49	89	3,142	13,978
0700.250.1000	7.00	178	2.50	64	1,000	17.86	175	3.52	89	3.48	88	3,481	15,484
