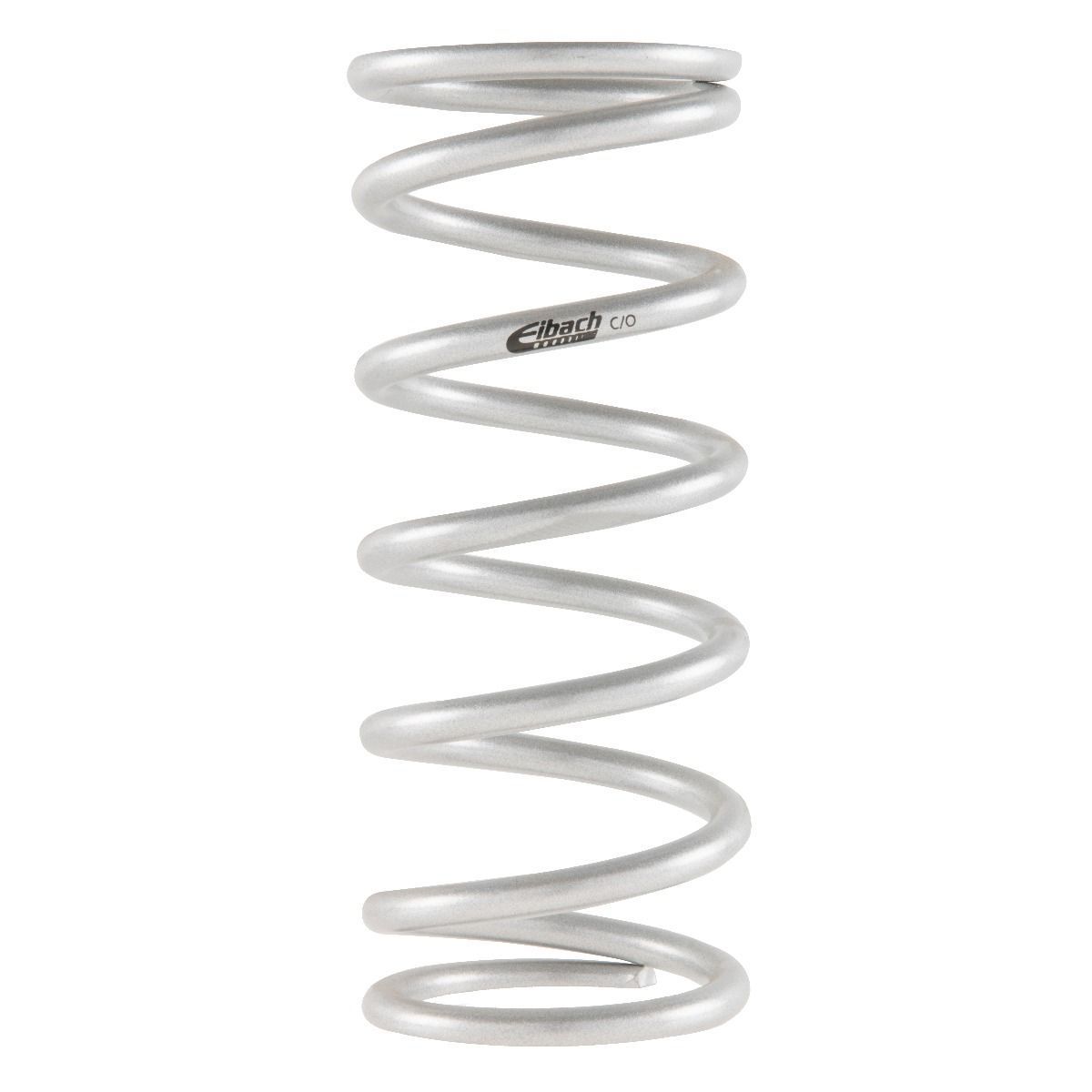

Eibach 8" Long 3.75" ID Coil Springs (Silver)
Eibach8" Long 3.75" ID Coil Springs (Silver)
From $121.00
Only %1 left
SKU
ERS-0800-375S_PARENT_ITEM
- Ultra-Lightweight for Reduced Unsprung Mass
- Maximum Deflection in Combination with Smallest Block Heights
- Exceptional Block Resistance and Durability
- Precision Tolerances - The Tightest in the Industry
- Precision Planparallel and Square End Configurations Under Unloaded and Loaded Conditions to ± Degree
- Lowest Side Loads with Load Center Ideally Located Relative to Spring Axis
- Highest Linearity and Guaranteed Rate Consistency Within 2% Of Advertised Rate
- Each Spring Individually Tested and Rated
| Part # | Length inch/mm |
Inside Diameter inch/mm |
Rate lbs/inch kg/mm N/mm |
Block Height inch/mm |
Travel inch/mm |
Load at Block Height lbs/N |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0800-375-0150S | 8.00 | 203 | 3.75 | 95 | 150 | 2.68 | 26 | 1.89 | 48 | 6.11 | 155 | 1.98 | 0.90 |
| 0800-375-0200S | 8.00 | 203 | 3.75 | 95 | 200 | 3.57 | 35 | 2.12 | 54 | 5.88 | 149 | 2.40 | 1.09 |
| 0800-375-0250S | 8.00 | 203 | 3.75 | 95 | 250 | 4.46 | 44 | 2.54 | 65 | 5.46 | 139 | 2.67 | 1.21 |
| 0800-375-0300S | 8.00 | 203 | 3.75 | 95 | 300 | 5.36 | 53 | 2.40 | 61 | 5.59 | 142 | 3.06 | 1.40 |
| 0800-375-0350S | 8.00 | 203 | 3.75 | 95 | 350 | 6.25 | 61 | 2.49 | 63 | 5.51 | 140 | 3.30 | 1.50 |
| 0800-375-0400S | 8.00 | 203 | 3.75 | 95 | 400 | 7.14 | 70 | 2.76 | 70 | 5.24 | 133 | 3.96 | 1.80 |
