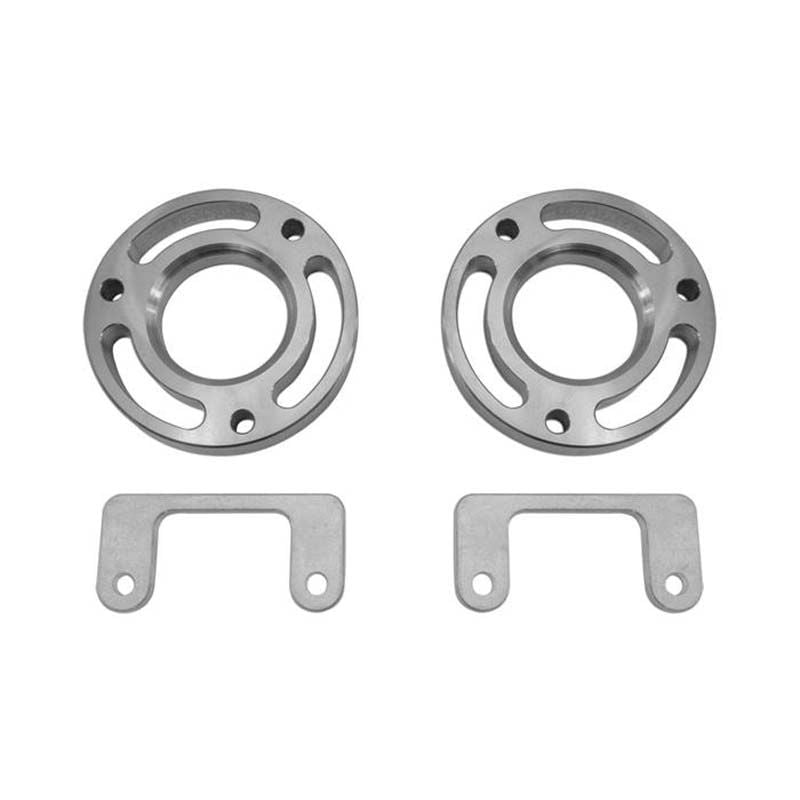

ICON 2007+ GM 1500 Billet Front Spacer Kit

The ICON Alloys GM 1500 spacer kit is perfect for the budget-minded customer looking to raise the front of their truck to provide clearance for larger/more aggressive wheel and tire combinations without breaking the bank. This ICON Alloys Leveling Suspension kit is constructed from 6061 billet aluminum and consists of top mounted strut spacers along with lower strut extensions to provide varying combinations of lift heights depending on the configuration used.

IVD-IVD1100B

• ICON 2007-2018 GM 1500 2.25" Billet Front Spacer Kit

Installation Instructions

IVD-IVD1135B

• Option #1 - Top mount spacer ONLY = .875" of lift
• Option #2 - Lower strut extension ONLY = 1.125" of lift
• Option #3 - Top mount spacer & lower strut extension = 2.00" of lift

Features:

• CNC machined 6061 billet aluminum construction
• 3 configurable lift height options
• Mounting hardware included
• ICON Alloys Limited Lifetime Warranty

Notes:

• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 w/ 4.75” BS / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9 w/ 5.00” BS / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9 w/ 5.00” BS / 0mm Offset
• Recommended Aftermarket Tires : 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
• Not compatible with Trail Boss or AT4 trims
• Not compatible with Magnetic Ride Control or Adaptive Ride Control systems
