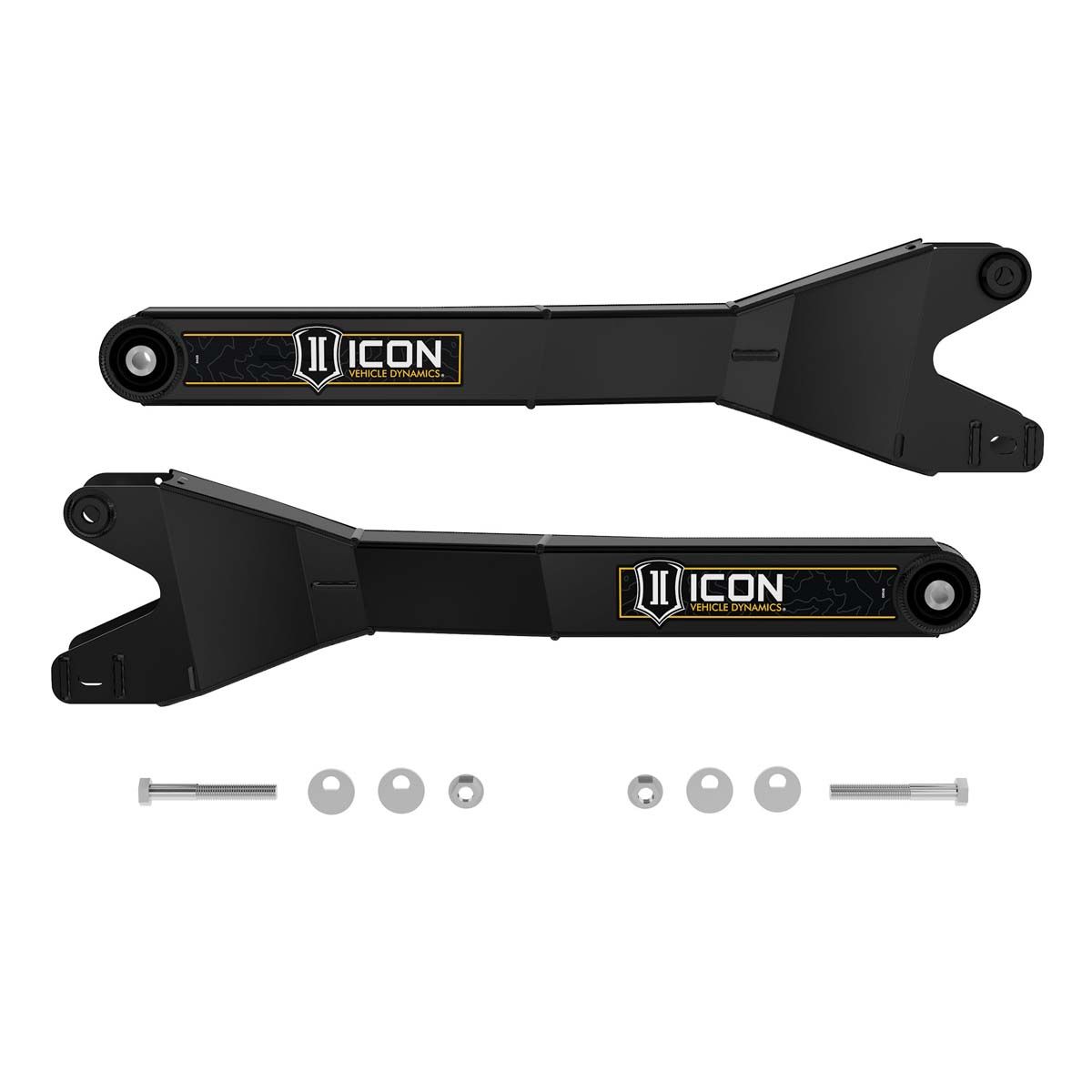

ICON 2005+ Ford Super Duty Radius Arm System
The ICON Vehicle Dynamics Ford 2005-2023 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, they're fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
From $1,700.35
Only %1 left
SKU
IVD-05FSDRA_PARENT
The ICON Vehicle Dynamics Ford 2005-2023 F-250 and F-350 Super Duty 4WD Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot, eliminating the need for caster bushings. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, they're fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
| Part # | Description |
|---|---|
| IVD-64041 | ICON 2005-2022 Ford Super Duty Radius Arm System |
| IVD-64042 | ICON 2023 Ford Super Duty Radius Arm System |
IVD-64041
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
Notes:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: Up to a 37" x 12.50"
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
- Compatible with 0-3" front lift height without need for caster bushings
- Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # IVD-64040, IVD-64045, or, IVD-64055)
IVD-64042
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
Notes:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: Up to a 37" x 12.50"
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25” Backspace / 6mm Offset
- Compatible with 0-3" front lift height without need for caster bushings
CALIFORNIA RESIDENTS - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
