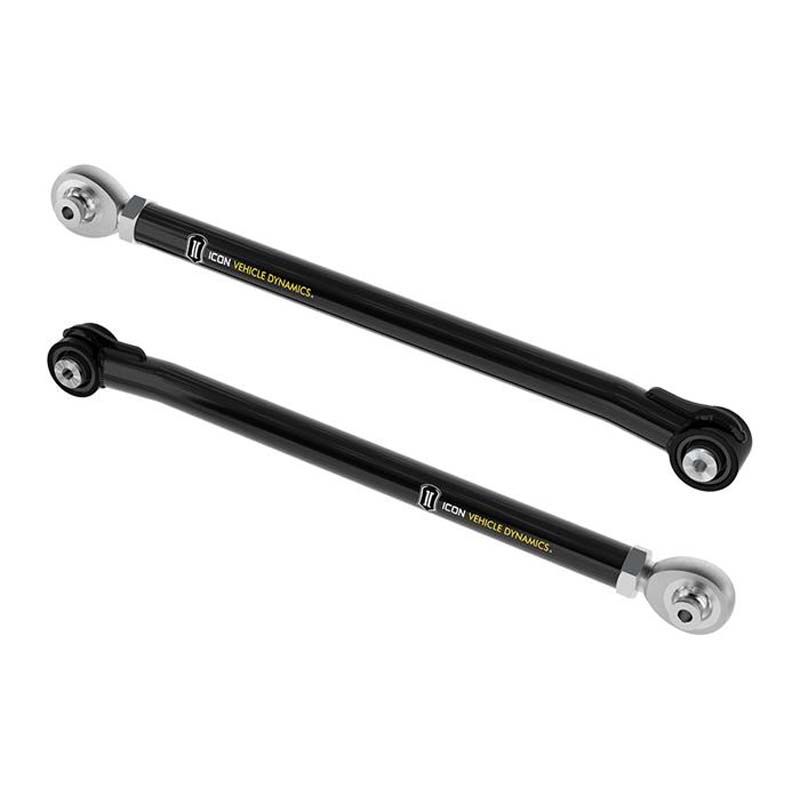

ICON 2022-2023 Tundra / 2023 Sequoia / 2024 Tacoma Tubular Rear Upper/Lower Link Kits

IVD-54002T

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2022-2024 Toyota Tundra, 2023-2024 Toyota Sequoia, and 2024 Toyota Tacoma to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Features:

• Adjustable for various lift heights & driveline angles
• Help free rear suspension bind compared to OE links
• High clearance Lower Link design for reduced contact with obstacles
• CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
• Multi durometer bushings for noise free operation and maximum angularity
• No grease required for life of bushings
• Quality JM16T PTFE-lined FK Rod Ends
• Fabricated components covered under ICON's Limited Lifetime Warranty

Notes:

• Will not fit 2024 Toyota Tacoma TRD PreRunner

IVD-54102T

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2022-2024 Toyota Tundra, 2023-2024 Toyota Sequoia, and 2024 Toyota Tacoma to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These upper links are designed with massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Features:

• Adjustable for various lift heights & driveline angles
• Help free rear suspension bind compared to OE links
• CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
• Multi durometer bushings for noise free operation and maximum angularity
• No grease required for life of bushings
• Quality JM16T PTFE-lined FK Rod Ends
• Fabricated components covered under ICON's Limited Lifetime Warranty

Notes:

• Tundra/Sequoia equipped with Load-leveling Rear Height Control Air Suspension and/or automatic leveling headlights also require part number 55153
• Compatible with ICON 2022-2023 Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers
• Will not fit 2024 Toyota Tacoma TRD PreRunner
