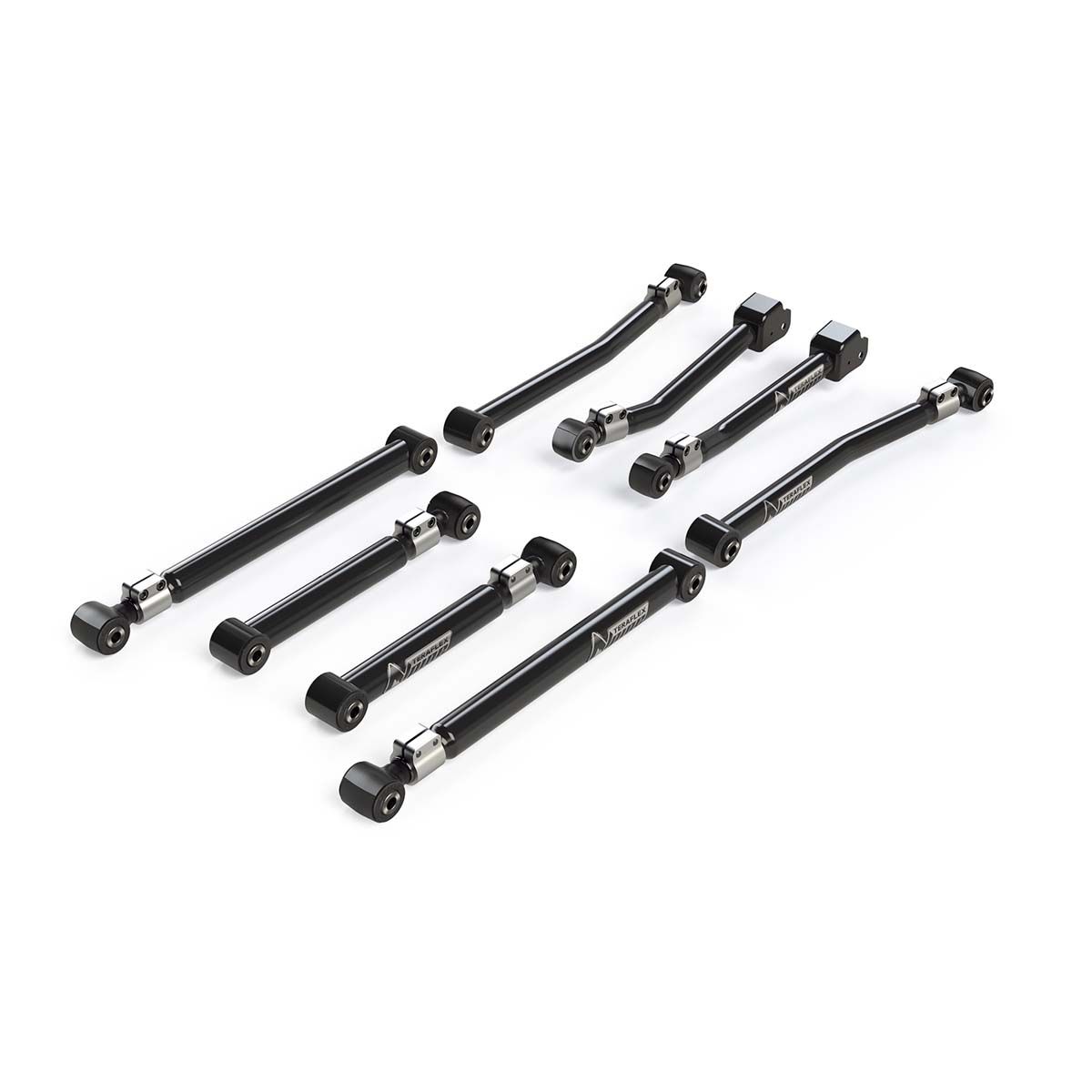

TeraFlex Jeep JT Gladiator Alpine Control Arm Kit - 8-Arm Adjustable (0-4.5" Lift)

TeraFlex JT: Alpine Control Arms provide complete alignment adjustability for maximum performance on JT Gladiator models with 0-4.5” lifts. Uses factory control arm brackets. Features dependable, maintenance-free, factory-style bushings. Can be added to any existing suspension lift.

Fits:

• JT Gladiator (pickup)
• 0-4.5” Lift

Includes:

Alpine Control Arms – Adjustable:

• Front Upper (# 1416520) – pair
• Front Lower (# 1416500) – pair
• Rear Upper (# 1417530) – pair
• Rear Lower (# 1417540) – pair

Features & Benefits:

• Durable 42mm x 4mm wall DOM (Drawn Over Mandrel) tube provides maximum strength
• Adjustable Alpine Control Arms optimize caster angle and tune anti-squat geometry for proper suspension alignment
• Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
• Full range of movement will not restrict articulation or flex off-road
• High-quality, dependable, maintenance-free, factory-style bushings provide excellent noise, vibration, and harshness (NVH) damping and ride quality characteristics
• Zero maintenance forged threaded joints for smooth quiet flex
• Premium black e-dipped coating provides superior durability and corrosion resistance on tube and forged rod end housing
• Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
• TeraFlex Lifetime Warranty against defects

Control Arm Specs:

JL | JT: Alpine Control Arm Kit – Front Upper Adjustable – (# 1416520):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 20.185”
• Min. Length = 20”
• Max. Length = 21”
• Both Ends = 14mm Bolt

JL | JT: Alpine Control Arm Kit – Front Lower Adjustable – (# 1416500):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length: 24”
• Min. Length: 24”
• Max. Length: 25.25”
• Both Ends: 16mm Bolt

JT: Alpine Control Arm Kit – Rear Upper Adjustable – (# 1417530):

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 16-3/8”
• Min. Length = 16-1/8”
• Max. Length = 17-3/8”
• Both Ends = 16mm Bolt

JT: Alpine Control Arm Kit – Rear Lower Adjustable – (# 1417540)

• Tube Diameter & Wall = 42mm x 4mm
• Factory Length = 23-3/4”
• Min. Length = 23-1/2”
• Max. Length = 24-3/4”
• Both Ends = 16mm
• Both Bushings = # 611011

Note(s):

• Alignment required.
