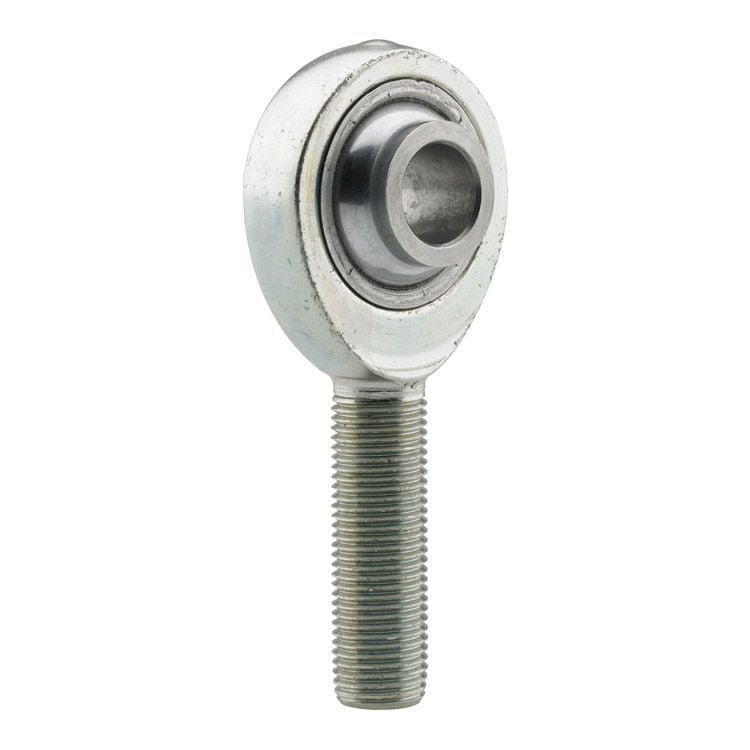

FK Rod Ends HJMX - High Misalignment Rod End
HJMX - High Misalignment Rod End
From $45.00
Only %1 left
SKU
15_PARENT_ITEM
- 4340 Body
- Heat Treated
- Zinc Plated
- PTFE Race
| Part # | Bore Size | Thread | Load Rating |
|---|---|---|---|
| HJMX6T | .375" | 3/8-24 | 11,390 lb |
| HJMX7T | .4375" | 7/16-20 | 15,716 lb |
| HJMX8T | .500" | 1/2-20 | 23,703 lb |
| HJMX10T | .625" | 5/8-18 | 28,109 lb |
| HJMX12T | .750" | 3/4-16 | 38,701 lb |
Male Rod Ends | B Dia. | D Dia. | W Width | T Width | Ball Dia. | A Length | N Thd. | C Length | O Dia. | a Mis. Aangle | Ult. Static Radial Load (lbs) | Approx. Weight (lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right Hand Part # | Left Hand Part # | +.0000 -.0005 | +.010 -.010 | +.000 -.005 | +.005 -.005 | REF. | +.015 -.015 | UNF 3A | +.031 -.031 | REF. | REF. | ||
| HJMX6T | HJMXL6T | .3750 | 1.150 | .813 | .355 | .781 | 2.125 | 3/8-24 | 1.281 | .512 | 22 | 11,390 | .12 |
| HJMX7T | HJMXL7T | .4375 | 1.337 | .875 | .355 | .875 | 2.438 | 7/16-20 | 1.468 | .618 | 21 | 15,716 | .23 |
| HJMX8T | HJMXL8T | .5000 | 1.525 | .937 | .411 | 1.000 | 2.625 | 1/2-20 | 1.562 | .730 | 19 | 23,703 | .33 |
| HJMX10T | HJMXL10T | .6250 | 1.775 | 1.200 | .577 | 1.250 | 2.875 | 5/8-18 | 1.687 | .856 | 19 | 28,109 | .57 |
| HJMX12T | HJMXL12T | .7500 | 2.025 | 1.280 | .630 | 1.375 | 3.375 | 3/4-16 | 2.000 | .970 | 18 | 38,701 | .82 |
|
Notes:
*A trade mark of E.I. Dupont de Nemours & Co., Inc.
