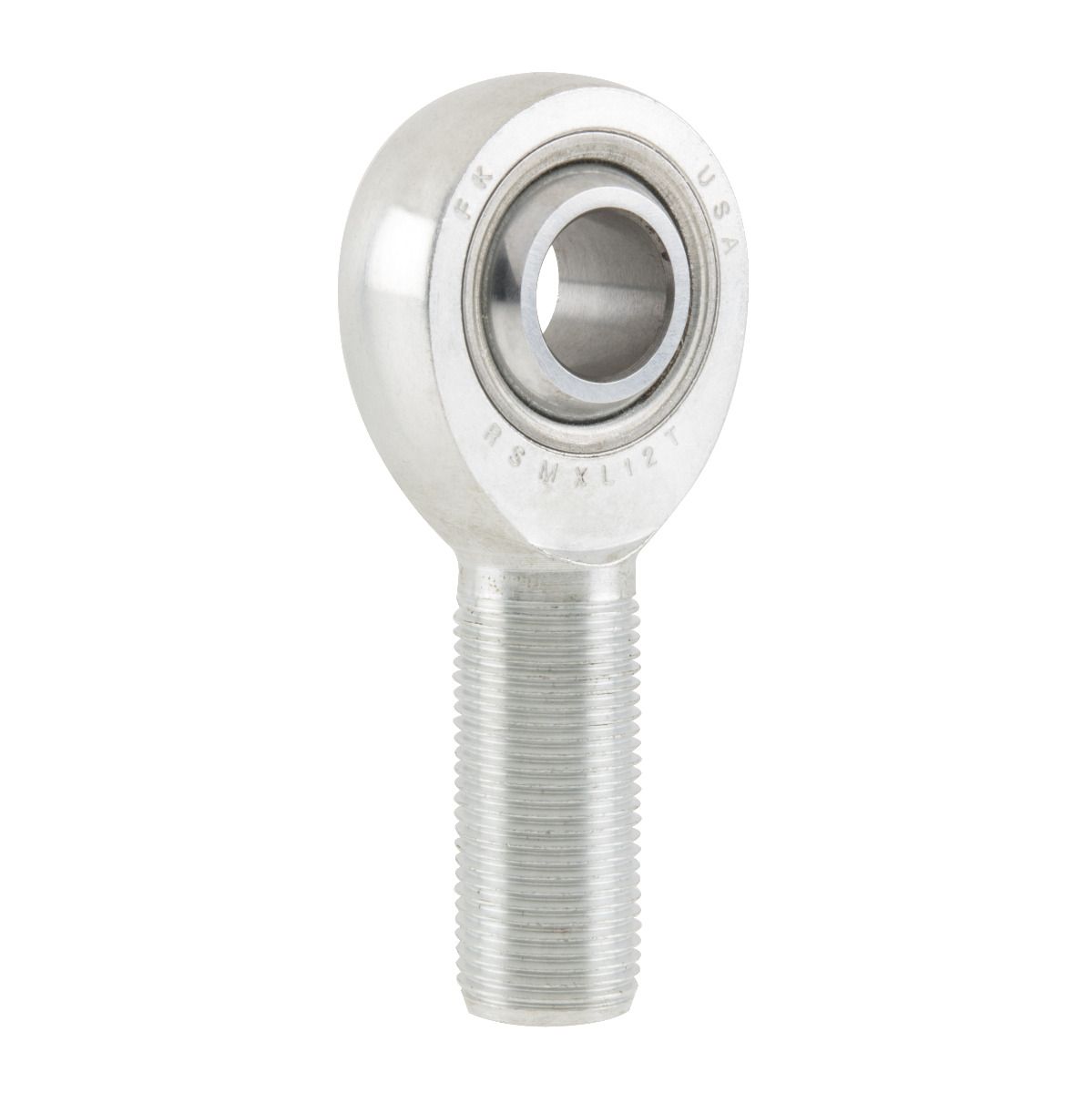

FK Rod Ends RSMX - High Strength Heavy Duty Shank Rod End

• Steel Alloy Body
• Heat Treated
• Heavy Duty Shank
• Zinc Plated
• PTFE Lined

Part #	Bore Size	Thread	Load Rating
RSMX4T	.25"	5/16-24	8,471 lbs
RSMX5T	.3125"	3/8-24	13,012 lbs
RSMX6T	.375"	7/16-20	17,610 lbs
RSMX7T	.4375"	1/2-20	23,470 lbs
RSMX8T	.500"	5/8-18	31,420 lbs
RSMX10T	.625"	3/4-16	40,590 lbs
RSMX10-8T	.500"	3/4-16	40,590 lbs
RSMXL12T	.750"	7/8-14	55,696 lbs
RSMX14T	.875"	1-14	63,096 lbs

Male Rod Ends		B Dia.	D Dia.	W Width	T Width	Ball Dia.	A Length	N Thd.	C Length	a Mis. Angle	Ult. Static Radical Load (lbs)
Right Hand Part #	Left Hand Part #	+.0015 -.0005	+.010 -.010	+.005 -.005	+.005 -.005	REF.	+.015 -.015	UNF 3A	+.062 -.031	REF.
RSMX3T	RSMXL3T	.1900	.750	.312	.250	.437	1.562	1/4-28	1.000	10	5,270
RSMX4T	RSMXL4T	.2500	.875	.375	.281	.500	1.875	5/16-24	1.250	13	8,471
RSMX5T	RSMXL5T	.3125	1.000	.437	.344	.625	1.938	3/8-24	1.250	12	13,012
RSMX6T	RSMXL6T	.3750	1.125	.500	.406	.719	2.125	7/16-20	1.375	10	17,610
RSMX7T	RSMXL7T	.4375	1.312	.562	.437	.812	2.438	1/2-20	1.500	12	23,470
RSMX8T	RSMXL8T	.5000	1.500	.625	.500	.937	2.625	5/8-18	1.625	10	31,420
RSMX10-8T	RSMXL10-8T	.5000	1.750	.750	.562	1.125	2.875	3/4-16	1.750	13	40,590
RSMX10T	RSMXL10T	.6250	1.750	.750	.562	1.125	2.875	3/4-16	1.750	13	40,590
RSMX12T	RSMXL12T	.7500	2.000	.875	.687	1.312	3.375	7/8-14	1.875	12	55,696
RSMX14T**	RSMXL14T**	.8750	2.312	.875	.765	1.375	3.800	1-14	2.375	12	63,096

** Race is 17-4PH stainless steel, heat treated / Ball is 440C stainless steel or 52100 steel (heat treated) - Manufacturer's Option

Ball 52100 Steel Rc 56 Min. Hard Chrome Plated Race Steel Allot Heat Treated Zinc Plated Chromite Treated Body Low Carbon Steel Zinc Plated Chromite Treated Liner *PTFE Fabric

Note:Male rod ends load ratings based on no lubrication fitting
*A trademark of E.I. Dupont de Nemours & Co., Inc
