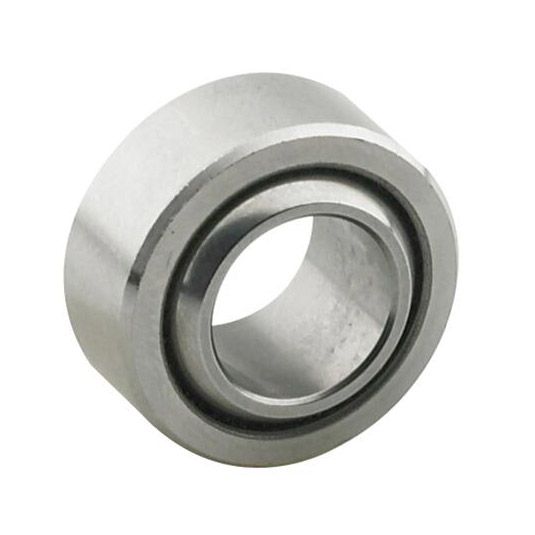

FK Rod Ends AIN Heavy Duty Precision Series Spherical Bearings
AIN Heavy Duty Precision Series Spherical Bearings
From $42.00
Only %1 left
SKU
FKB-AIN_PARENT_ITEM
| BEARING PART # | B DIA. | D DIA. | W WIDTH | T WIDTH | O DIA. | BALL DIA. | F CHAMFER | a° MIS ANG. | ULT. STATIC RADIAL LOAD (lbs.) | APPROX. WEIGHT (lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| +.0015 -.0005 | +.0000 -.0005 | +.005 -.005 | +.005 -.005 | REF. | REF. | REF. | REF. | |||
| AIN14T-770 | .8750 | 1.6250 | .875 | .750 | 1.061 | 1.375 | .035 | 6 | 58,650 | .350 |
| AIN16T | 1.0000 | 2.1250 | 1.375 | 1.000 | 1.275 | 1.875 | .060 | 15 | 90,000 | .788 |
Note: PTFE Teflon liner included. Units with PTFE liners have no lubrication holes or grooves in race.
| MATERIALS | |
|---|---|
| BALL | RACE |
| 52100 STEEL | ALLOY STEEL |
| HEAT TREATED | HEAT TREATED |
| HARD CHROME PLATED | OIL COATED |
