Raise the height of your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
5 Inch Block w/ 2 Leaf Main
FOX 2.0 PS
BDS-1537H
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
5 Inch Block w/ 2 Leaf Main
NX2 Nitro
BDS-1538FS
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
5 Inch Block w/ 3 Leaf Main
FOX 2.0 PS
BDS-1538H
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
5 Inch Block w/ 3 Leaf Main
NX2 Nitro
BDS-1555FS
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
Leaf Springs
FOX 2.0 PS
BDS-1555H
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
Leaf Springs
NX2 Nitro
BDS-2227FPE
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
5 Inch Block w/ 2 Leaf Main
FOX 2.5 PE
BDS-2228FPE
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
5 Inch Block w/ 3 Leaf Main
FOX 2.5 PE
BDS-2232FPE
4 Inch Lift Kit | 4-Link Conversion | Ford F250 / F350 SD (2017-2019) 4WD | Diesel
Leaf Springs
FOX 2.5 PE
Raise the height of your 2017-2019 Ford F250 and F350 Super Duty diesel powered truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.

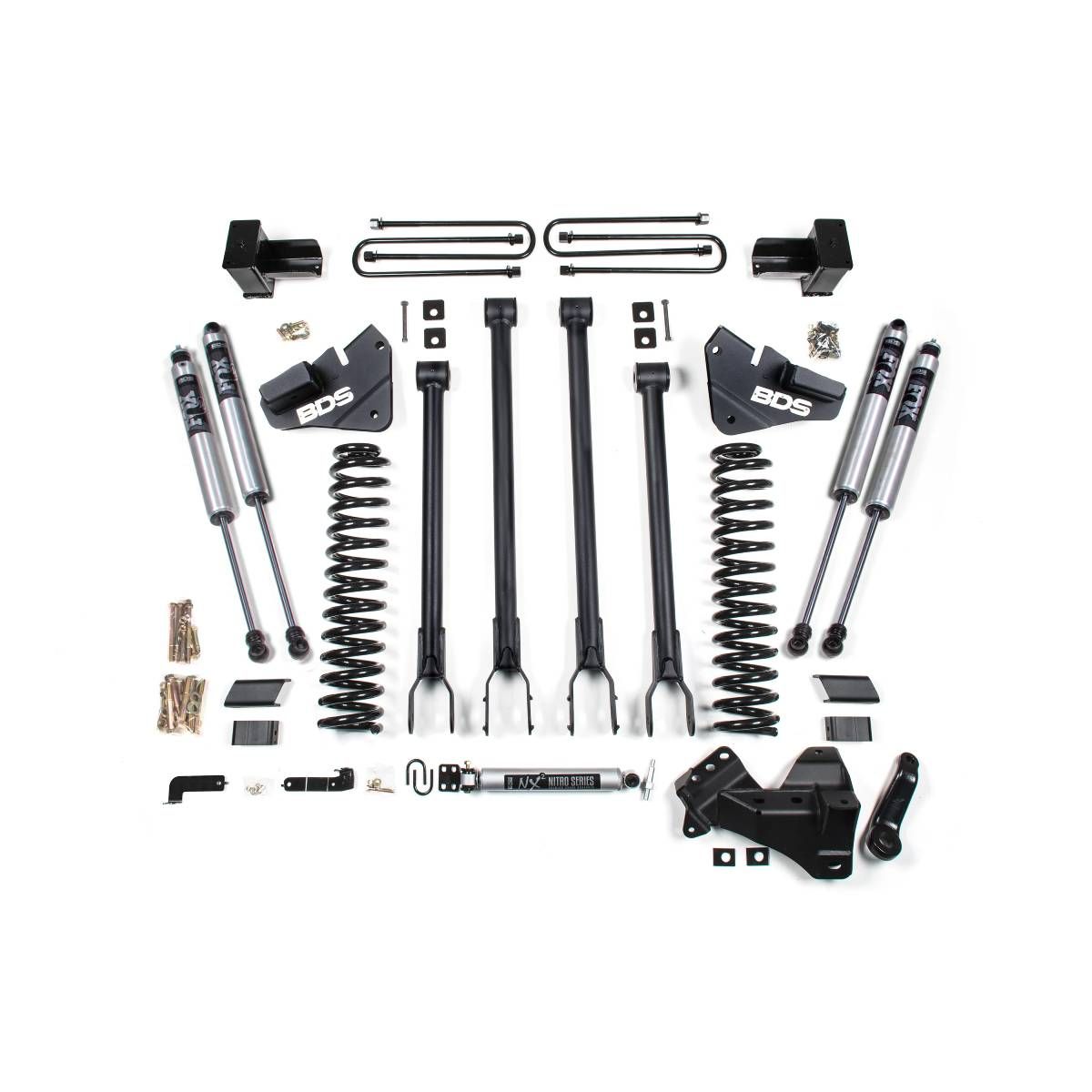

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts, brake line brackets and a matching set of NX2 Nitro or FOX Performance shocks.
4-Link Conversion
By converting the factory stamped steel radius arms over to the BDS 4-link design you are able to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4" steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel. These arms use large greaseable bushings and come finished in a durable textured black powder coat.
Features:
ProRide front dual-rate coil springs to achieve front lift height.
4-Link conversion offers additional strength and caster control during wheel travel.
Forged pitman arm and HD track bar bracket to correct steering angle and axle positioning.
Rear lift block or GlideRide rear leaf spring options to level out the stance and retain load capacity.
NX2 gas or FOX 2.0 IFP performance gas shocks to improve ride and offroad performance.
Specifications:
Front Lift Method : Coil Spring
Front Lift Height : 4"
Rear Lift Method : Block
Rear Lift Height : 5"
Shocks Included : Yes
Lift Height : 4-5.5"
Recommended Tires & Wheels (Trimming may be required)
37 x 12.5 with 17 x 9 and 5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5 in. Backspace
Rear Suspension Options
Rear Block: Rear lift comes from a high strength replacement lift block along with longer u-bolts to maintain a level stance while retaining the original spring rates.
Rear springs: The factory springs are swapped out in favor of a full replacement Glideride leaf pack designed for great on/off-road performance, increased load capacity with built in overload leaf.
Rear Lift Option:
5 Inch Block
Some F250/350 factory options increase the main leaf pack count from 2 to 3 leaf's (this is for top overload options only). Be sure to verify which factory leaf spring configuration your vehicle has and choose the appropriate option.
Leaf Springs
Reduces axle wrap and creates a more controlled and stable feel
Multi-leaf progressive design for smooth ride
Maintains factory payload weight ratings
Anti-friction pads provide a smooth and quiet ride
Shock Options:
NX2 Nitro Series
Nitrogen-charged
Twin-tube design
10-stage velocity-sensitive valving
Dual-welded ends for increased strength
1-3/8-inch high-flow piston
Self-lubricating seals
Silver powder coat finish
FOX 2.0 Performance Series
2-inch Impact extruded aluminum body
Internal floating piston (IFP) monotube design
CNC machined 6061-T6 aluminum mounting ends
Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
Race-developed high-flow piston design
Application-specific valving to maximize performance
Long-lasting clear anodized finish
FOX 2.5 Performance Elite Series
Increased off-road capabilities
Easily adjust your shock for terrain, load and speed
2.5-inch Impact extruded aluminum body
Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
External reservoir design separates shock oil from the high-pressure nitrogen
DSC - Dual Speed Compression Adjuster comes standard
Fully serviceable for a lifetime of use
1-year Manufacturer's Warranty
Notes:
If equipped with a 2-piece rear driveshaft, a Carrier Bearing Drop Kit may be required (BDS123402)
37 x 12.50 tires may require minor trimming.
Some models may be factory equipped with a 2-leaf main rear leaf spring pack and others a 3-leaf main. Be sure to order the correct option when customizing your kit.
If your truck is equipped with a factory rear sway bar add: 123005
