Carli 3.25" Leveling Pintop 2.5 System for 2013+ 3500 4x4, Diesel

Name: Carli 3.25" Leveling Pintop 2.5 System for 2013+ 3500 4x4, Diesel
Brand: Carli Suspension
SKU: CAR-CS-DPT25-1319-D
Price: 5070.00 USD
Availability: InStock

Be the first to review this product

Carli's most popular system, the Pintop kit boasts 2.5", Remote Reservoir King Shocks. Designed and tuned in house for the customer looking for substantial on-road and off-road performance improvement. Customers can expect a softer ride with more control and bottom-out resistance than the Backcountry.

$5,070.00

SKU

CAR-CS-DPT25-1319-D

Fabricated Radius Arms

Front Differential Guard

High Mount Stabilizer

Lifetime Ball Joint Set

Long Travel Airbags

Low Mount Stabilizer

Rear Leaf Springs

Sway Bar Options

Qty

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Front Lift	Rear Lift	Front Travel	Rear Travel	Shock Diameter	Tire Fitment
3.25"	0.5-2"	9.3"	13"	2.5"	37" x 12.5"

The Pintop is the Backcountry on steroids, take the description for the Backcountry and throw an exponent on it. This system is Carli's Jack-of-all-trades system from which every Ram owner would benefit. Raising the Ram platform then adding the 2.5" diameter shocks will support the argument that these trucks should come equipped with 2.5" shocks from the factory. This system is Carli's most popular, all around suspension system. It was tuned and rides best with Carli's Full Progressive Leaf Springs and 18" wheels with 37" tires. Both of the aforementioned are recommended.

The Details: This system boasts Carli specific, blueprinted, King 2.5" shocks on all four corners. In an effort to provide customers with the best product, Carli designed a custom piston to determine proper base flow rates to ensure the shock works well in the heavy duty truck platform; Carli then tuned the shocks around the custom pistons based on the only thing that matters to us, seat-of-the-pants feel. Carli round off ALL Carli's King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, Carli recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Your truck will sit 3"-3.5" higher in the front (cab configuration dependent) with 50% more suspension travel than the factory platform thanks to the taller, lighter rate coil springs. The rear is lifted 1"-2" via the customer’s choice of a Progressive Add-A-Pack or Full Progressive Leaf Pack. The Progressive Add-A-Pack maintains load capacity and replaces the factory overload with a 5-Leaf, progressive pack that changes the final rate of the spring pack keeping the rear planted while increasing traction and predictability. The optional Full Progressive Leaf Pack replaces the entire factory leaf spring assembly increasing travel and drastically increasing comfort (when compared to when compared to the factory springs or add-a-pack) throughout the entire usable travel stroke at the cost of a 15% payload reduction from a standard 2500.

When pairing added down-travel with the taller ride height, the position of the factory, front sway bar will need to be altered as well. For this, Carli offer two options; Billet Sway Bar Drop Brackets or the replacement Torsion Sway Bar. The Billet Drop Blocks shift the sway bar down and forward to ensure the factory end links cycle properly throughout the entire extended travel range. Carli’s optional Torsion sway bar removes the entire factory sway bar assembly replacing it with a torsion bar supported by fabricated drop brackets and delrin bushings. Fabricated sway bar arms and dual 5/8" FK heim end links round off the package. This is the single best bang for the buck, ride-quality upgrade offered by Carli Suspension.

When lifting the front end of a straight axle truck, the front axle is pulled off-center unless the proper linkages are addressed. Three inches of front lift equates to an axle shifted toward the driver’s side ¾" and, in the radius arm equipped Rams, lightened caster and slight rearward axle shift. This system includes an Adjustable Track Bar to push the axle back toward the passenger side and provide a stronger link with less deflection for the lifted application. Carli also include Radius Arm Drop Brackets to recenter your caster adjustment and shift the axle forward to its new center of travel. Everything is included to support flawless operation of all components.

Wheel and Tire: This system will fit up to a 37" tire when utilizing wheels that are no more than 9" wide with 5.75-6" of backspacing. A 12.5" wide should fit with no rubbing on the factory radius arm and only minor trimming required, while a 13.5" will require more trimming and slightly more offset to fit properly. 35" tires will fit with VERY minimal, if any trimming. Carli Recommend running an 18" diameter wheel for optimal ride quality (more rubber = better small bump compliance) on a 35"-37" E-rated tire running 45psi front, 40psi rear when unloaded.

Notes:

This system is NOT compatible with trucks equipped with the factory auto-leveling air assist.

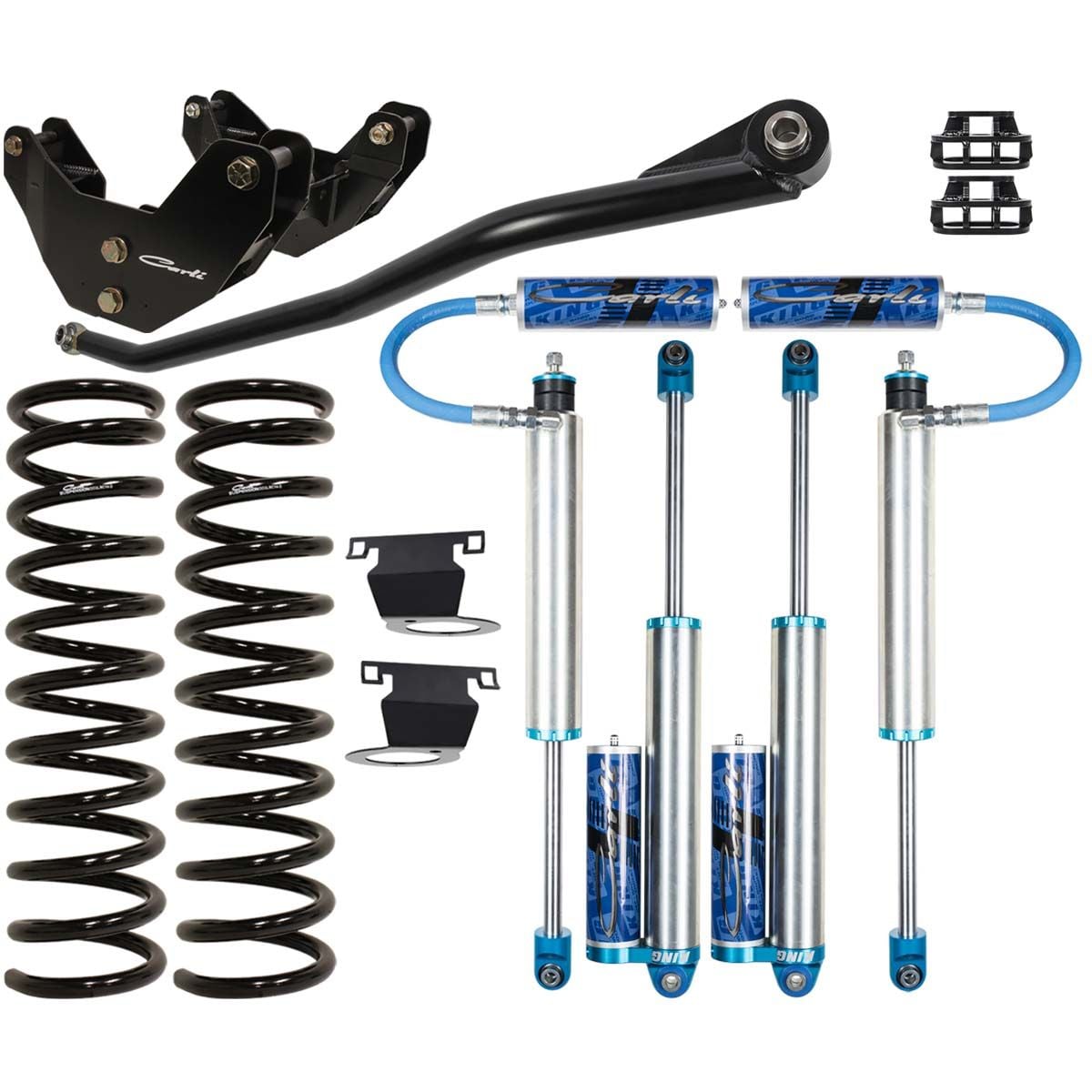

Base Kit:

(1) CS-DFBD-1 - Front Bump Drops
(1) CS-DLRC-14-D - Front Linear-Rate Coil Springs
(1) CS-DATB-1419 - Front Track Bar
(1) CS-DRAD-14 - Radius Arm Drops
(1) CS-DCM-20-HK - Transmission Crossmember, Extended Hardware Kit
(1) CS-DPT25SPKG-13-D - Carli Tuned King 2.5" Remote Reservoir Pintop Shock Package with Reservoir Mounts, Stainless Shafts

OPTIONS:

Progressive Add-A-Pack, Diesel, 1" Lift - CS-DPAP-03-D
