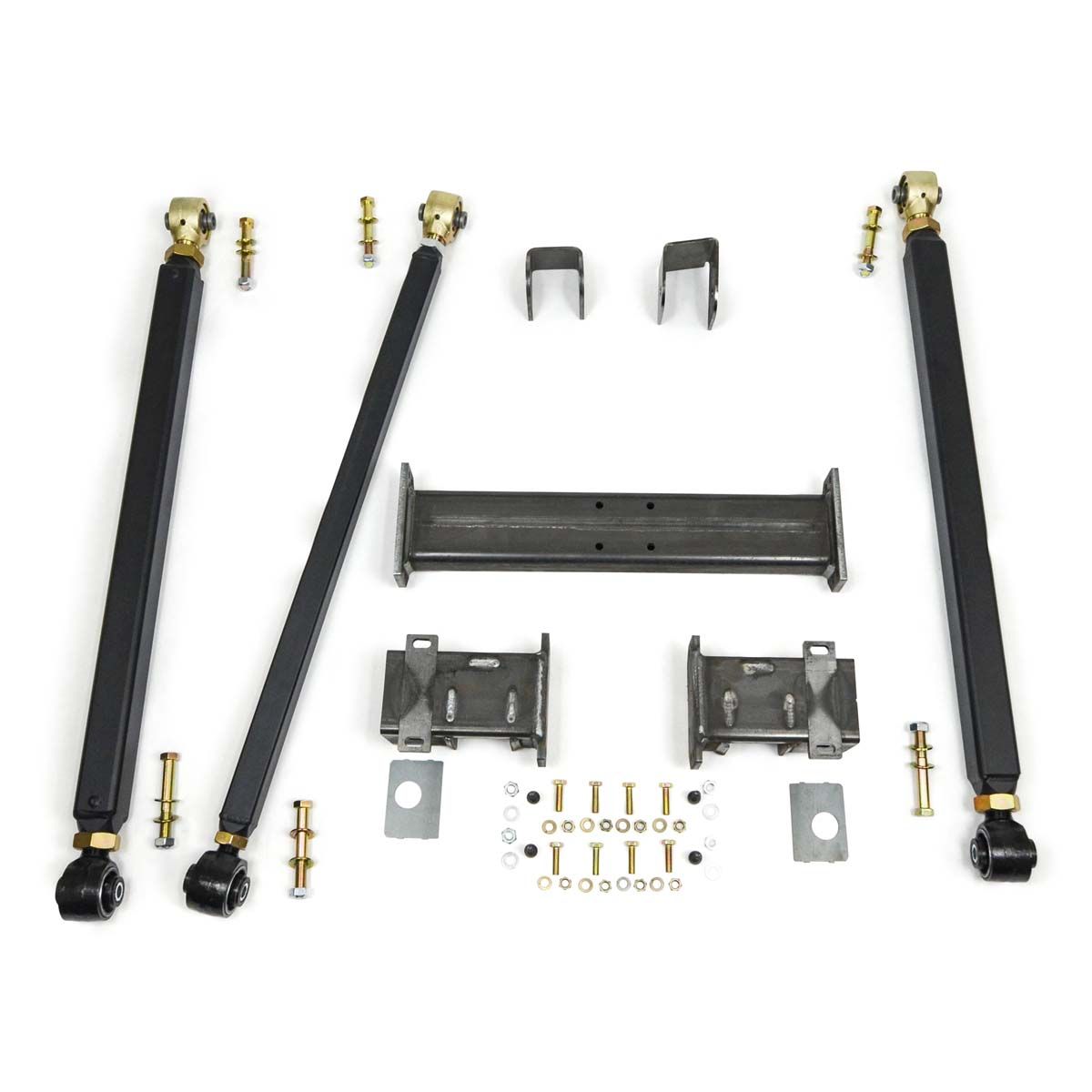

Clayton Off Road Jeep Cherokee Pro Series 3 Link Front Long Arm Upgrade Kit for 1984-2001 XJ

Clayton Off Road Inc. builds the ultimate 3 link suspension system.

Clayton start by using pro series arms. Pro series arms feature a forged johnny joint at one end and a dual durometer, maintenance free, self-centering GIIRO Joint at the other for maximum flex and adjustability. Clayton use the same 3 piece cross member used in all Clayton's long arm kits for easy access to your transmission. The 3 link version comes with a cross member and axle side bracket. Separate 3 link bracket MUST be welded fully before installing the cross member in the vehicle. If you are using a stock D30 front axle you can use the optional 3 link truss. This gives you a very strong mounting location to attach the top 3 link axle mount. This mount will NOT work on any aftermarket axle. Clayton will include a standard 3 link mount which you can to your axle or bridge depending on Clayton's axles configuration.

NOTE: Clayton recommend on Clayton's 3 Link kits a minimum of 6.5" of lift due to floor clearance!

Features:

• NEW Pocket Style Design
• 3 Piece Adjustable Cross Member
• Fits BOTH Auto AW4 & Manual AX-15
• Double Adjustable Control Arms
• Forged Johnny Joints
• Dual Durometer GIIRO Joints
• Lifetime Warranty*
• MADE IN THE USA!

Fitment:

• XJ - Cherokee 84-01
