Eibach PRO-TRUCK-LIFT System for 2024+ Toyota Tacoma 4WD

ERS-E86-82-105-01-22

Eibach's PRO-TRUCK-LIFT STAGE 2 combines Eibach's threaded height adjustable coilovers and sport shocks for fine tuning of ride height, delivering improved off-road performance.

Features:

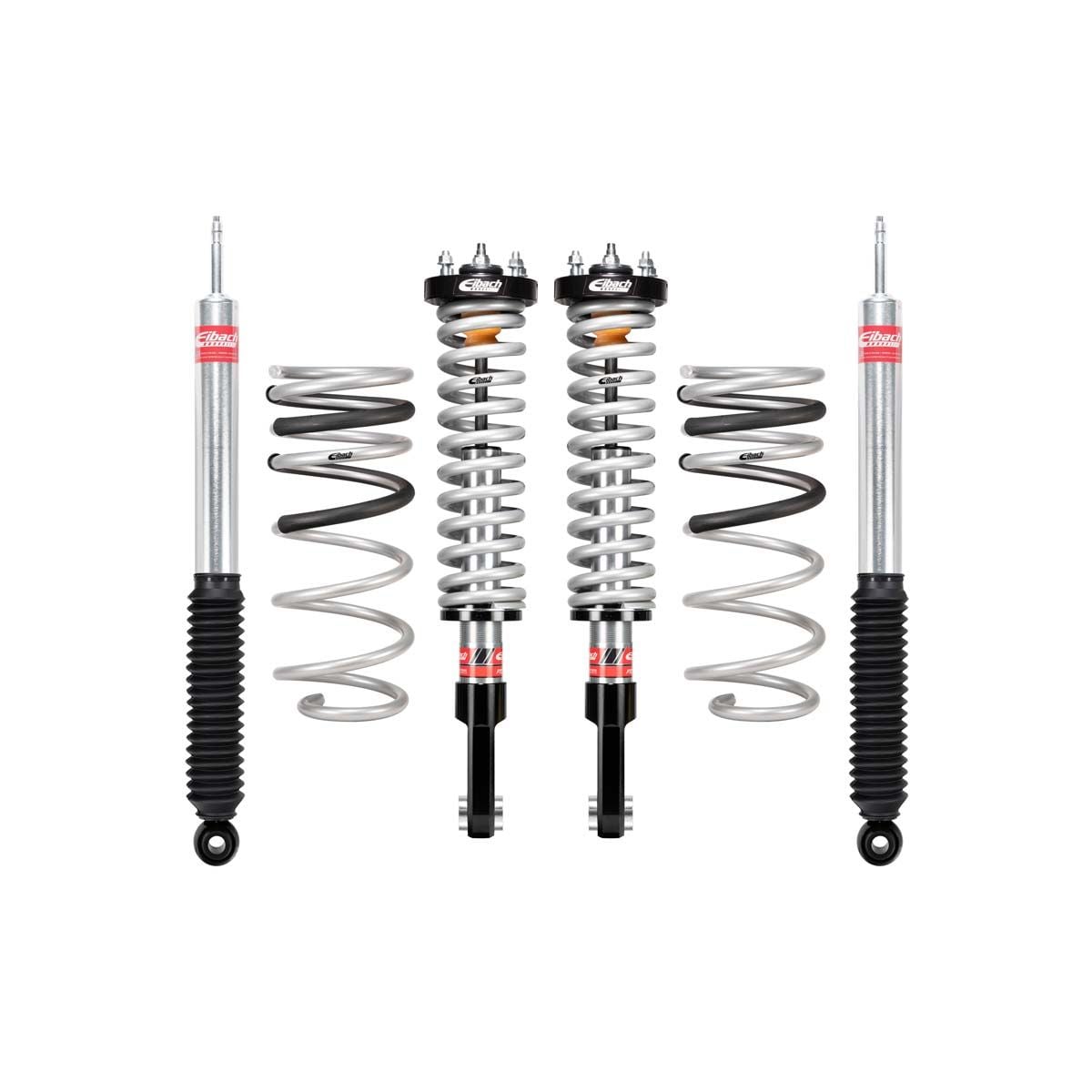

• Pair of Front Coilovers + Rear Shocks
• +0.5"-2.5" Front | +1" Rear
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Rear Sport Shocks
• Front Adjustable Threaded Spring Perch to Accommodate Increased Loads and Maximum Clearance. ERO Off-Road Race Spring Equipped and Compatible.
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.
• Limited Lifetime Warranty

Fitment:

• 2024-2025 Toyota Tacoma SR5, TRD SPORT, TRD Off-Road, Limited DOUBLE CAB 2.4L Turbo 4WD N400 | Excludes leaf spring, and Adaptive Variable Suspension (AVS) models

Notes:

• Exact lift heights may vary depending on exact packages and weight distributions of vehicle Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.
• Eibach do not guarantee fitment, height or warranties on unlisted applications.

ERS-E86-82-105-02-22

Eibach's PRO-TRUCK-LIFT STAGE 2R combines Eibach's threaded height adjustable coilovers and rear reservoir shocks for fine tuning of ride height and maximum off-road capability.

Features:

• Pair of Front Coilovers + Rear Reservoir Shocks
• +0.5-2.5 in Front | +1.0 in Rear
• Stage 2 system featuring Pro-Truck-Coilover 2.0's + Pro-Truck Reservoir Sport Shocks
• Height Adjustable Front Coilover and External Reservoir Rear Shocks for Increased Off-Road Performance
• Anodized 6061-T6 Billet Aluminum Coilover Mounts, 46mm Piston, Monotube Design with Nitrogen Filled Variable Force Valving.
• Individually Dyno Tested for Matched Performance and Reliability. Heavy Duty Bushing System also Cycle Tested.
• Engineered, Tested and Manufactured by Eibach in the U.S.A.
• Limited Lifetime Warranty

Fitment:

• 2024-2025 Toyota Tacoma SR5, TRD SPORT, TRD Off-Road, Limited DOUBLE CAB 2.4L Turbo 4WD N400 | Excludes leaf spring, and Adaptive Variable Suspension (AVS) models

Notes:

• Exact lift heights may vary depending on exact packages and weight distributions of vehicle Front out of the box height is set to be level with OE rear spring. Preload will need to be added to be level with Eibach rear spring.
• Eibach do not guarantee fitment, height or warranties on unlisted applications.
