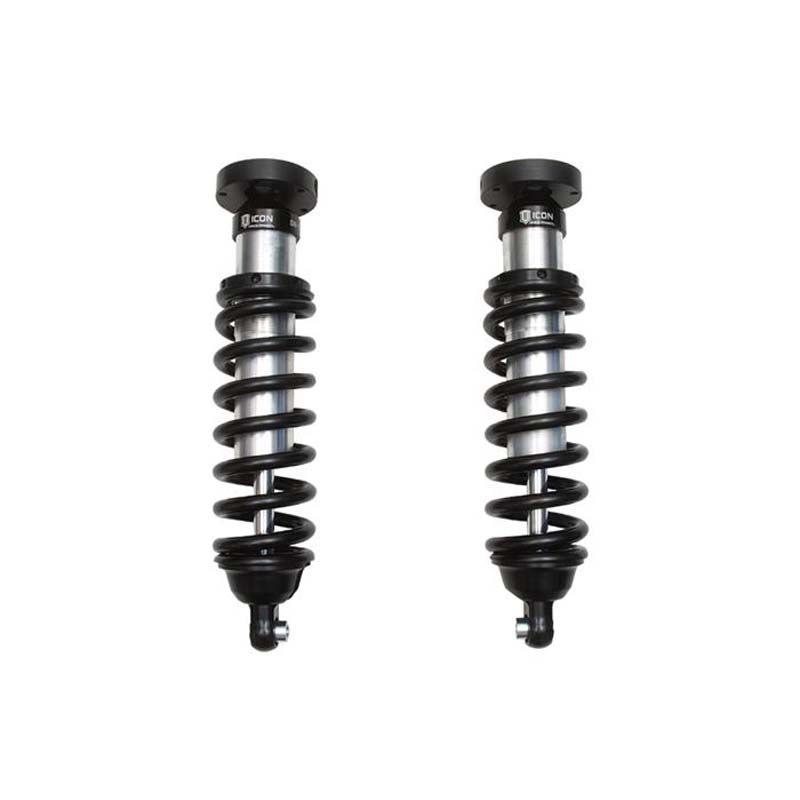

ICON 2.5 Front Coilover System for 2000-2006 Toyota Tundra
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your 2000-2006 Tundra's front suspension.
These adjustable coil-over shocks have proven their strength and longevity for years on end and they keep going. These shocks offer the best ride quality and handling. They increase suspension travel and dramatically increase the capabilities of your 2000-2006 Tundra's front suspension. These coil-over’s are meant to be installed with an aftermarket uniball upper control arm kit to ensure the proper amount of wheel travel and to prevent premature ball joint wear. Recommended tire size 285/75R16, wheel 16X8 with 4.5" back spacing.
- Adjustable ride height from 0" - 2.5"
- Race shock piston with flutter stack compression valving
- Cad-plated threaded body / Extreme Weather Plating Option Available
- Billet aluminum upper mount
- 5/8" PTFE-lined spherical bearing
- Completely re-buildable
- 2.5" shock diameter to prevent overheating
- Chrome-silicon spring
- 250 PSI nitrogen-charged internal reservoir
- 100% Made in the USA
- Nitro-steel shaft will not chip or rust like chrome shafts
| Part # | Description |
|---|---|
| IVD-58620 | 2000-2006 TUNDRA 2.5 VS IR COILOVER KIT |
| IVD-58625 | 2000-2006 TUNDRA EXT TRAVEL 2.5 VS IR COILOVER KIT |
| IVD-58620-700 | 2000-2006 TUNDRA / 2001-2007 SEQUOIA 2.5 VS IR COILOVER KIT 700LB |
| IVD-58625-700 | 2000-2006 TUNDRA / 2001-2007 SEQUOIA EXT TRAVEL 2.5 VS IR COILOVER KIT 700LB |
IVD-58620
Notes:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
IVD-58625
Notes:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Aftermarket front upper control arms required for installation
IVD-58620-700
Notes:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8"-9" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
IVD-58625-700
Notes:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 8"-9" wide wheel with 5" backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- Aftermarket front upper control arms required for installation
- 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
