ICON 05+ Toyota Hilux Suspension System
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 1 system provides a baseline level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature a internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing you to level the Hilux front to back, and install a larger tire when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
KEY FEATURES:- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Improved shock durability for the varying terrains and many uses this vehicle faces
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
- Aftermarket Tires: 32 x 11.50 Tall Tires
- Larger Tires May Fit but Fender Trimming and Modifications will be Required

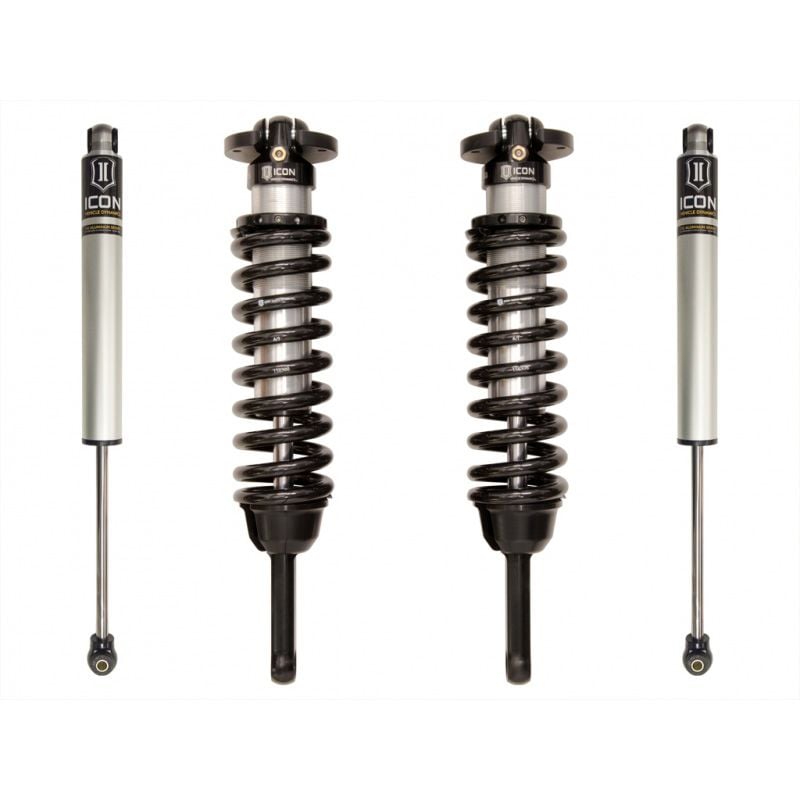

- 05-Up Toyota Hilux (0-3" Lift) 2.5" IFP Coilover Shocks
- 05-Up Toyota Hilux (0-3" Lift) 2.0 Aluminum Series Rear Shock
Stage 2 (IVD-K53142)
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 2 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature a internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON 2.0 Aluminum Series monotube rear shocks balance performance of the truck front to rear for a great all around feel on any terrain. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By utilizing a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
KEY FEATURES:- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
- Aftermarket Tires: 33 x 11.50 Tall Tires
- Larger Tires May Fit but Fender Trimming and Modifications will be Required
- 05-Up Toyota Hilux (0-3" Lift) 2.5" IFP Coilover Shocks
- 05-Up Toyota Hilux (0-3" Lift) 2.0 Aluminum Series Rear Shock
- 05-Up Toyota Hilux 1" Lift Rear Shackle
Stage 3 (IVD-K53143, IVD-K53143T)
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 3 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” coilover shocks feature a internal reservoir for exceptional cooling properties, and ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. These 2.5" coilovers are height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON 2.0 Aluminum Series remote reservoir rear shocks balance performance of the truck front to rear, and ensure optimum performance by increasing the duration of consistent damping by keeping the shocks at a cooler operating temperature during extended offroad use. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By utilizing a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. Tubular uniball upper control arms on the Hilux not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
KEY FEATURES:- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
- Aftermarket Tires: 33 x 11.50 Tall Tires
- Larger Tires May Fit but Fender Trimming and Modifications will be Required
- 05-Up Toyota Hilux (0-3" Lift) 2.5" IFP Coilover Shocks
- 05-Up Toyota Hilux (0-3" Lift) 2.0 Aluminum Series Remote Reservoir Rear Shock
- 05-UP Toyota Hilux Uni Ball Tubular or Billet UCA
- 05-Up Toyota Hilux 1" Lift Rear Shackle
Stage 4 (IVD-K53144, IVD-K53144T)
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 4 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” remote reservoir coilover shocks and ICON 2.0 Aluminum Series in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended offroad use. These 2.5" remote reservoir coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By using a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. Tubular uniball upper control arms on the Hilux not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
KEY FEATURES:- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear remote reservoir shocks for superior shock damping and control
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
- Aftermarket Tires: 33 x 11.50 Tall Tires
- Larger Tires May Fit but Fender Trimming and Modifications will be Required
- 05-Up Toyota Hilux (0-3" Lift) 2.5" Remote Reservoir Coilover Shocks
- 05-Up Toyota Hilux (0-3" Lift) 2.0 Aluminum Series Remote Reservoir Rear Shock
- 05-UP Toyota Hilux Uni Ball Tubular or Billet UCA
- 05-Up Toyota Hilux 1" Lift Rear Shackle
Stage 5 (IVD-K53145, IVD-K53145T)
ICON Vehicle Dynamics’ Toyota Hilux suspension systems have been designed with maximum performance and the serious driver in mind. The varying uses of this vehicle worldwide were acknowledged and catered to in ICON’s research and development process. The Hilux Stage 5 system provides a level of performance that will drastically improve on and off-road vehicle ride characteristics. ICON's Vehicle-specific tuned 2.5” remote reservoir w/ CDCV coilover shocks and ICON 2.0 Aluminum Series in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle “feel” throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended offroad use. These 2.5" remote reservoir w/ CDCV coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations when desired. ICON has taken into account the stiffer chassis of the Hilux, realizing a much more robust overall shock tune was required for sufficient damping ability across varying terrains and differing vehicle payloads. By using a shackle to lift the rear of the Hilux when the front is set to 3", factory payload rating is retained while allowing more suspension up-travel. Billet uniball upper control arms on the Hilux not only add strength and durability, but help retain factory alignment spec range allowing on vehicle adjustabilty. This attention to detail is why ICON Vehicle Dynamics performance suspension systems are the ultimate solution for the Toyota Hilux.
KEY FEATURES:- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear remote reservoir shocks for superior shock damping and control
- ICON CDCV equipped shocks front coilovers for fully adjustable tuneability of your shocks
- Adjustable coilovers from 0-3" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8 shaft
- FK rod end bearings for extended longevity and minimal deflection
- 2.0 aluminum body rear shock with 5/8" shaft
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Made in the USA
- OEM Wheels & Tires: Yes
- Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
- Aftermarket Tires: 33 x 11.50 Tall Tires
- Larger Tires May Fit but Fender Trimming and Modifications will be Required
- 05-Up Toyota Hilux (0-3" Lift) 2.5" Remote Reservoir Coilover Shocks w/ CDC
- 05-Up Toyota Hilux (0-3" Lift) 2.0 Aluminum Series Remote Reservoir Rear Shock
- 05-UP Toyota Hilux Uni Ball Tubular or Billet UCA
- 05-Up Toyota Hilux 1" Lift Rear Shackle
