ICON 2009-UP Dodge Ram 1500 4WD Suspension System

ICON Vehicle Dynamics Dodge Ram 1500 4wd suspension systems are designed with maximum performance and the serious driver in mind.  ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

IVD-K213001 - Stage 1 Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Wheel & Tire Fitment:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
• Aftermarket Tires: 33 x 11.50 Tall Tires
• (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

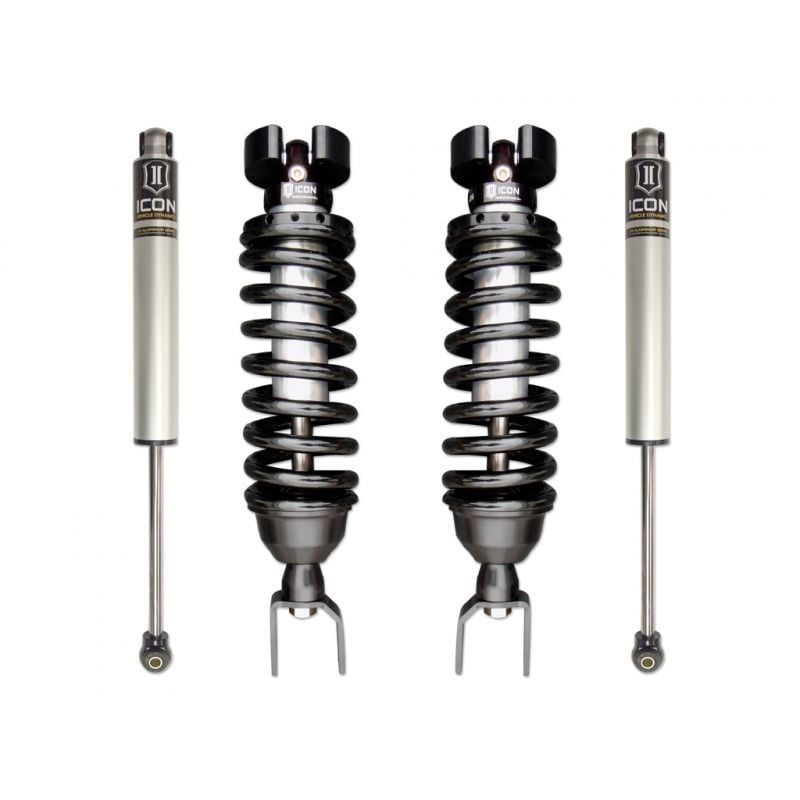

The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-UP Dodge Ram 1500 4wd Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

IVD-K213001 - Stage 2 Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Wheel & Tire Fitment:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
• Aftermarket Tires: 33 x 11.50 Tall Tires
• (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-UP Dodge Ram 1500 4wd Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well

IVD-K213003 - Stage 3 Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from .75-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock bodies with 7/8 shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Wheel & Tire Fitment:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
• Aftermarket Tires: 33 x 11.50 Tall Tires
• (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from .75-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-UP Dodge Ram 1500 4wd Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

IVD-K213004 - Stage 4 Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers from 0-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock bodies with 7/8 shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Wheel & Tire Fitment:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
• Aftermarket Tires: 33 x 11.50 Tall Tires
• (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-UP Dodge Ram 1500 4wd Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

IVD-K213005 - Stage 5 Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• ICON CDC Valve allows quick and easy end-user adjustability
• Adjustable coilovers from 0-2.5" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8 shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• Corrosion resistant CAD plated shock bodies with 7/8 shaft
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

Wheel & Tire Fitment:

• OEM Wheels & Tires: Yes
• Aftermarket Wheels: 8" - 9" Wide Wheel With 5" Backspace
• Aftermarket Tires: 33 x 11.50 Tall Tires
• (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

This system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-2.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-UP Dodge Ram 1500 4wd Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
