ICON 2007-2021 Toyota Tundra Complete Suspension Systems

Be the first to review this product

From $1,951.25

Only %1 left

SKU

IVD-07TUNCOMPLETE_PARENT_ITEM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Stage	Upper Control Arms
IVD-K53021	1	-
IVD-K53022	2	-
IVD-K53023	3	-
IVD-K53024	4	-
IVD-K53025	5	Billet
IVD-K53025T	5	Tubular
IVD-K53026	6	Billet
IVD-K53026T	6	Tubular
IVD-K53027	7	Billet
IVD-K53027T	7	Tubular

2007-2021 Toyota Tundra 0-3.5" Stage 1 Suspension System (IVD-K53021)

ICON Toyota Tundra Stage 1 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON 2007-UP Toyota Tundra Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.0 VS Aluminum Series with 5/8" polished nitro steel shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Kit Includes:

IVD-58650 - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Series IFP Coilover Kit
IVD-56506 - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.0 VS Aluminum Series Rear Shocks

2007-2021 Toyota Tundra 0-3.5" Stage 2 Suspension System (IVD-K53022)

ICON Toyota Tundra Stage 2 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 VS Aluminum Series monotube rear shocks utilize a vehicle-specific valving and then when combined with ICON's expansion pack give you the performance of the truck from front to rear. The ICON 2007-UP Toyota Tundra Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.0 VS Aluminum Series with 5/8" polished nitro steel shaft
1.5" Rear Exspansion pack for better ride quaility
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Kit Includes:

IVD-58650 - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Series IFP Coilover Kit
IVD-51200 - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
IVD-56506 - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.0 VS Aluminum Series Rear Shocks

2007-2021 Toyota Tundra 0-3.5" Stage 3 Suspension System (IVD-K53023)

ICON Toyota Tundra Stage 3 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Smooth Body Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON 2007-UP Toyota Tundra Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 VS Smooth Body Series with 7/8" polished nitro steel shaft
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Kit Includes:

IVD-58650 - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Series IFP Coilover Kit
IVD-51200 - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
IVD-57620P - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.5 VS Smooth Body Rear Shocks

2007-2021 Toyota Tundra 0-3.5" Stage 4 Suspension System (IVD-K53024)

ICON Toyota Tundra Stage 4 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 4 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Piggyback Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON 2007-UP Toyota Tundra Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 VS Piggyback Series with 7/8" polished nitro steel shaft
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Kit Includes:

IVD-58750 - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Remote Reservoir Coilover Kit
IVD-51200 - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
IVD-57720P - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.5 VS Piggyback Rear Shocks

2007-2021 Toyota Tundra 0-3.5" Stage 5 Suspension System (IVD-K53025 / IVD-K53025T)

ICON Toyota Tundra Stage 5 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 5 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Piggyback Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON 2007 - Up Toyota Tundra Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

This system features upper control arms with ICON's patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 VS Piggyback Series with 7/8" polished nitro steel shaft
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install

IVD-58750 - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Remote Reservoir Coilover Kit
IVD-K53025 Includes:
- IVD-58560DJ - 2007-2021 Toyota Tundra Delta Joint UCA's(Billet)
IVD-K53025T Includes:
- IVD-58460DJ - 2007-2021 Toyota Tundra Delta Joint Tubular UCA's
IVD-51200 - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
IVD-57720P - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.5 VS Piggyback Rear Shocks

2007-2021 Toyota Tundra 0-3.5" Stage 6 Suspension System (IVD-K53026 / IVD-K53026T)

ICON Toyota Tundra Stage 6 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 6 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties and includes our Compression Damping Control Valve (CDCV) for 10 clicks of tool free adjustment. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Piggyback Series rear shocks utilize our CDCV valving that makes your suspension tuneable front and rear. The ICON 2007-UP Toyota Tundra Stage 6 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
CDC tuned front and rear shocks for a custom tuneable ride
Adjustable coilovers from 0-3.5" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 VS Piggyback Series with 7/8" polished nitro steel shaft and CDC Valve
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Kit Includes:

IVD-58750C - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Remote Reservoir CDCV Coilover Kit
IVD-K53026 Includes:
- IVD-58560DJ - 2007-2021 Toyota Tundra Delta Joint UCA's(Billet)
IVD-K53026T Includes:
- IVD-58460DJ - 2007-2021 Toyota Tundra Delta Joint Tubular UCA's
IVD-51200 - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
IVD-57720CP - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.5 VS Piggyback CDCV Rear Shocks

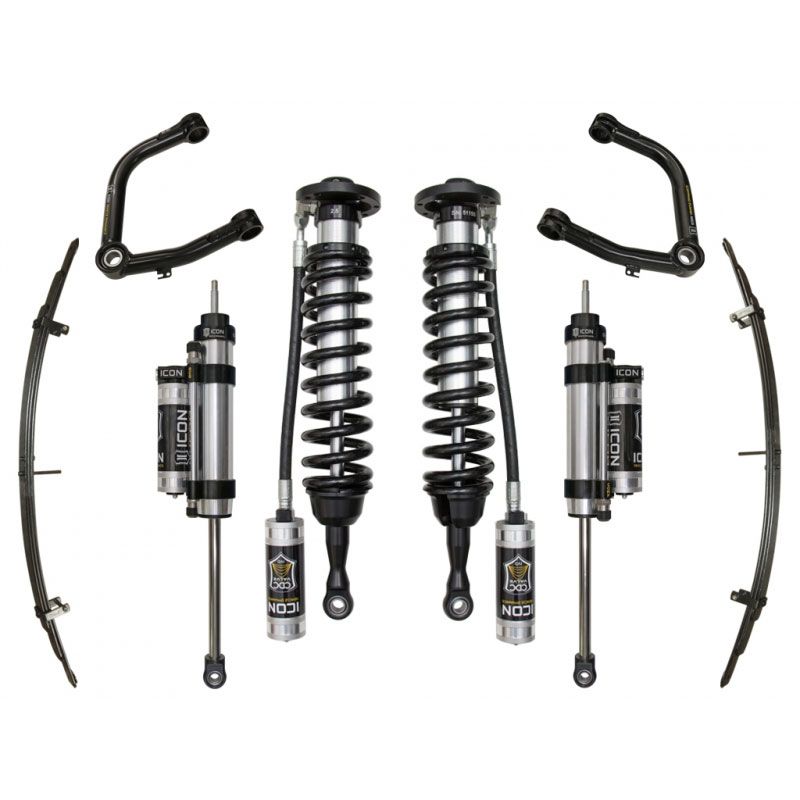

2007-2021 Toyota Tundra 0-3.5" Stage 7 Suspension System (IVD-K53027 / IVD-K53027T)

ICON Toyota Tundra Stage 7 suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 7 system includes vehicle-specific tuned 2.5” coilover shocks featuring a remote reservoir for exceptional cooling properties and includes our CDCV 10 way adjustable compression valve. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 VS Omega Series rear shocks utilize our Compression and rebouding tuning to make your suspension tuneable in the rear. The ICON 2007 - Up Toyota Tundra Stage 7 suspension system is an excellent choice for those drivers looking to tune the capabilities of their pickup on the road as well as in the dirt.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
CDC tuned front and rear shocks for a custom tuneable ride
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 VS Omega Series with 7/8" polished nitro steel shaft
Rear expansion pack for 1.5” of lift and better ride quality
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Made in the USA

Kit Includes:

IVD-58750C - 2007-2021 Toyota Tundra (0-3.5" Lift) 2.5 Remote Reservoir CDCV Coilover Kit
IVD-K53027 Includes:
- IVD-58560 - 2007-2021 Toyota Tundra UniBall UCA's(Billet)
IVD-K53027T Includes:
- IVD-58460 - 2007-2021 Toyota Tundra Uniball Tubular UCA's
IVD-51200 - 2007-2021 Toyota Tundra (1.5" Lift) Rear Expansion Pack
IVD-59920P - 2007-2021 Toyota Tundra (0-1.5" Lift) 2.5 VS Piggyback Omega Rear Shocks

Wheel and Tire Fitment Info:

OEM Wheels & Tires: Yes (Wheel spacers required to run factory wheels with an oversized tire)
Aftermarket Wheels: 8-9" Wide Wheel With 5.75" Backspace
Aftermarket Tires: 32" x 12.50" Tires (OEM Skid Plate Trimming Required for 35" Tire)

(Larger Tires May Fit but Fender Trimming and Modifications will be Required)
