ICON 2022+ Toyota Tundra 1.25-3.25" 3.0 Suspension System with Billet UCA

Name: ICON 2022+ Toyota Tundra 1.25-3.25" 3.0 Suspension System with Billet UCA
Brand: ICON Vehicle Dynamics
Price: 9335.81 USD
Availability: OutOfStock

Be the first to review this product

The ICON Vehicle Dynamics 3.0 complete suspension system for the 2022-UP Toyota Tundra builds upon the Stage 10 2.5 suspension system with the upgrade to 3.0 Series front coilovers. To compliment the 3.0 Series coilover shocks, 2.5 Aluminum Series CDCV rear remote reservoir shocks are included along with billet aluminum or tubular front upper control arms and a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires.

From $10,728.72

Only %1 left

SKU

IVD-22TUNDRA30SSB_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description
IVD-K53211	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 1 3.0 Suspension System Billet
IVD-K53211D	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 1 3.0 Suspension System Billet CDXS
IVD-K53212	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 2 3.0 Suspension System Billet
IVD-K53212D	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 2 3.0 Suspension System Billet CDXS
IVD-K53213	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 3 3.0 Suspension System Billet
IVD-K53213D	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 3 3.0 Suspension System Billet CDXS
IVD-K53213DS	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 3 3.0 Suspension System Billet CDXS (TRD)
IVD-K53213S	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 3 3.0 Suspension System Billet (TRD)
IVD-K53214	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 4 3.0 Suspension System Billet
IVD-K53215	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 5 3.0 Suspension System Billet
IVD-K53216	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 6 3.0 Suspension System Billet
IVD-K53216S	ICON 2022+ Toyota Tundra 1.25-3.25" Stage 6 3.0 Suspension System Billet (TRD)

IVD-K53211

Features:

Vehicle specific design for 2022-UP Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

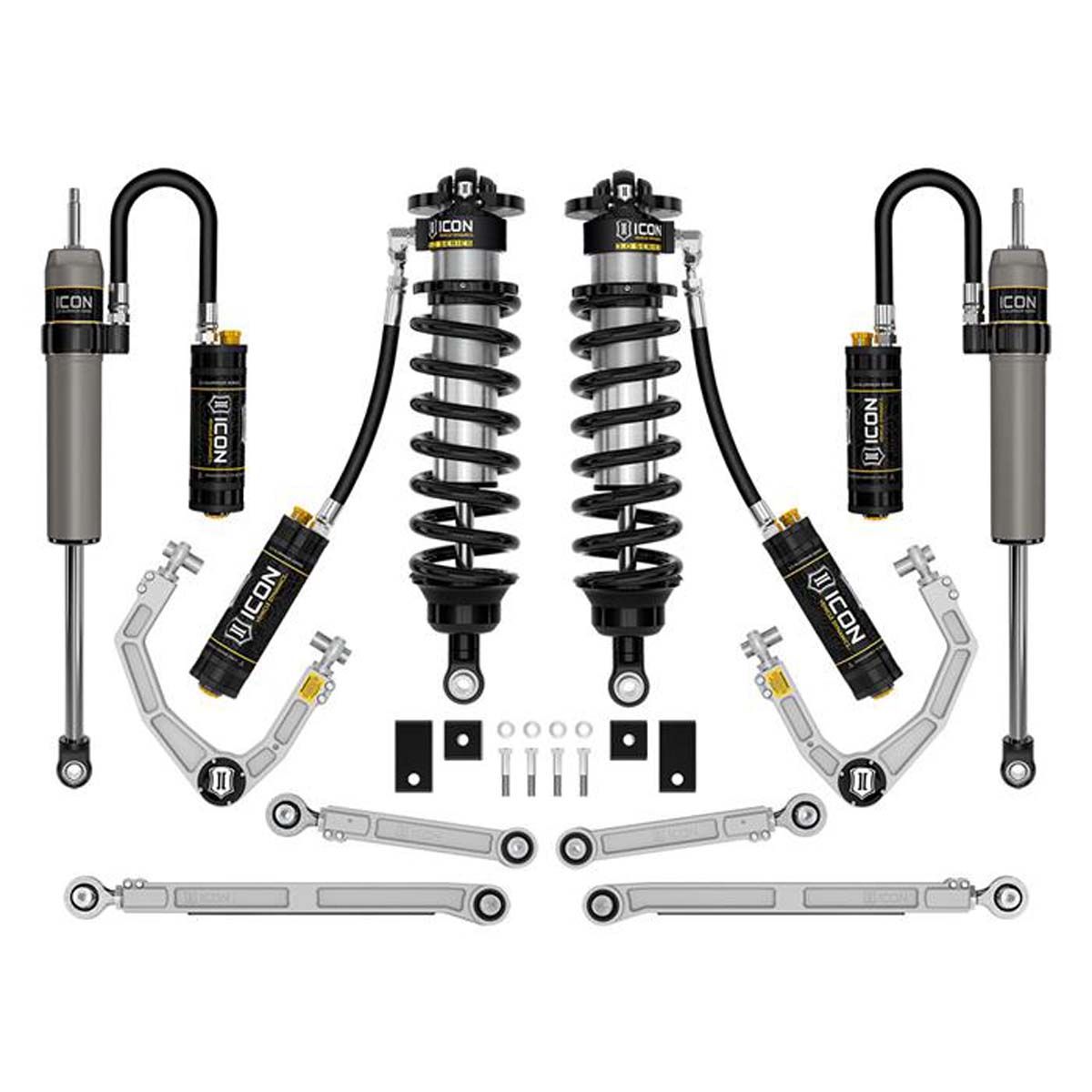

Includes:

58775C (QTY: 1) | 22-UP TUNDRA 3.0 VS RR CDCV COILOVER KIT
58561DJ (QTY: 1) | 22-UP TUNDRA BILLET UCA DJ PRO KIT
55154 (QTY: 1) | 22-UP TUNDRA SWAY BAR DROP KIT
54002 (QTY: 1) | 22-UP TUNDRA BILLET REAR LOWER LINK KIT
54102 (QTY: 1) | 22-UP TUNDRA BILLET REAR UPPER LINK KIT
57840CP (QTY: 1) | 22-UP TUNDRA 0-1" REAR 2.5 VS CDCV RR PAIR

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE SUSPENSION (AVS).
APPLICATION NOTE #144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
APPLICATION NOTE #145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.
APPLICATION NOTE #146: 22-UP TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 1.75-4"
Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.

IVD-K53211D with CDXS Shocks

3.0 Stage 1 includes our massive 3.0 Vehicle Series CDXS-enhanced front coilovers for increased fluid volume and surface area, yielding optimal performance for prolonged periods of rough terrain. Travel and articulation are maximized with ICON Delta Joint Pro equipped front UCAs as well as upper and lower rear links in either billet aluminum or tubular construction. Stage 1 includes our proven 2.5 VS CDXS-equipped rear shocks with internal bump zone. Sway bar drop brackets are included to optimize fitment.

IVD-K53212

Features:

Vehicle specific design for 2022-UP Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.252-3.5” of front lift over stock when used with included billet aluminum UCAs
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Includes:

58775C (QTY: 1) | 22-UP TUNDRA 3.0 VS RR CDCV COILOVER KIT
58561DJ (QTY: 1) | 22-UP TUNDRA BILLET UCA DJ PRO KIT
55154 (QTY: 1) | 22-UP TUNDRA SWAY BAR DROP KIT
54002 (QTY: 1) | 22-UP TUNDRA BILLET REAR LOWER LINK KIT
54102 (QTY: 1) | 22-UP TUNDRA BILLET REAR UPPER LINK KIT
57845CP (QTY: 1) | 22-UP TUNDRA REAR 3.0 VS RR CDCV PAIR

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #143: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH ADAPTIVE VARIABLE SUSPENSION (AVS).
APPLICATION NOTE #144: NOT COMPATIBLE WITH 22-UP TUNDRA TRD PRO.
APPLICATION NOTE #145: WILL NOT WORK WITH HYBRID EQUIPPED VEHICLES.
APPLICATION NOTE #146: 22-UP TUNDRA SR5 EQUIPPED WITH TRD SPORT PACKAGE LIFT RANGE WILL BE 1.75-4"
Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.

IVD-K53212D with CDXS Shocks

Stage 2 builds on the previous stage by including massive 3.0 Vehicle Series rear shocks, making your suspension all-around built for severe use through rough terrain, over the long haul. 3.0 Stage 2 is available in 2 - 3.25" lift height or 3-4.25" lift height including our triple rate rear coil springs.

IVD-K53213

Features:

Vehicle specific design for 2022-2023 Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # IVD-K53213S.
TECH NOTE: Tundras equipped with automatic leveling headlights also require part number IVD-55153

Includes:

IVD-58775C (QTY: 1) | 22-23 TUNDRA 3.0 VS RR CDCV COILOVER KIT
IVD-58561DJ (QTY: 1) | 22-23 TUNDRA BILLET UCA DJ PRO KIT
IVD-55154 (QTY: 1) | 22-23 TUNDRA SWAY BAR DROP KIT
IVD-54002 (QTY: 1) | 22-23 TUNDRA BILLET REAR LOWER LINK KIT
IVD-54102 (QTY: 1) | 22-23 TUNDRA BILLET REAR UPPER LINK KIT
IVD-54202 (QTY: 1) | 22-23 TUNDRA BILLET REAR ADJ TRACK BAR KIT
IVD-51210 (QTY: 1) | 22-23 TUNDRA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
IVD-57845CP (QTY: 1) | 22-23 TUNDRA REAR 3.0 VS RR CDCV PAIR

IVD-K53213D with CDXS Shocks / IVD-K53213DS with CDXS Shocks (TRD)

The ultimate CDXS-equipped suspension system for Toyota Tundra, 3.0 Stage 3 includes everything from the previous stage and adds ICON's billet adjustable rear track bar and our Triple Rate Rear Coil Springs. Stage 3 yields 1.25 - 3.25" suspension lift in a complete suspension system that's ready for extreme off-road performance.

IVD-K53213S (TRD)

Features:

Vehicle specific design for 2022-2023 Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
TECH NOTE: Included rear springs net .75" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 1.25" of rear lift. If lower rear ride heights are desired, consider ICON part # IVD-K53213.
TECH NOTE: Tundras equipped with automatic leveling headlights also require part number IVD-55153

Includes:

IVD-58775C (QTY: 1) | 22-23 TUNDRA 3.0 VS RR CDCV COILOVER KIT
IVD-58561DJ (QTY: 1) | 22-23 TUNDRA BILLET UCA DJ PRO KIT
IVD-55154 (QTY: 1) | 22-23 TUNDRA SWAY BAR DROP KIT
IVD-54002 (QTY: 1) | 22-23 TUNDRA BILLET REAR LOWER LINK KIT
IVD-54102 (QTY: 1) | 22-23 TUNDRA BILLET REAR UPPER LINK KIT
IVD-54202 (QTY: 1) | 22-23 TUNDRA BILLET REAR ADJ TRACK BAR KIT

IVD-K53214

Features:

Vehicle specific design for 2022+ Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
Billet UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
2.5 Aluminum Series rear remote reservoir shocks provide increased performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.
Tundras equipped with automatic leveling headlights also require part number 55153

Includes:

IVD-58775E (QTY: 1) | 22+ TUNDRA 3.0 VS RR CDEV COILOVER KIT
IVD-58561DJ (QTY: 1) | 22+ TUNDRA BILLET UCA DJ PRO KIT
IVD-55154 (QTY: 1) | 22+ TUNDRA SWAY BAR DROP KIT
IVD-54002 (QTY: 1) | 22+ TUNDRA BILLET REAR LOWER LINK KIT
IVD-54102 (QTY: 1) | 22+ TUNDRA BILLET REAR UPPER LINK KIT
IVD-57840EP (QTY: 1) | 22+ TUNDRA 0-1" REAR 2.5 VS CDEV RR PAIR
IVD-53508 (QTY: 1) | 22+ TUNDRA IIC INSTALL KIT

IVD-K53215

Features:

Vehicle specific design for 2022+ Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
Included rear shocks are compatible with 0-1" of rear lift over stock on models equipped with rear coil springs.
Tundras equipped with automatic leveling headlights also require part number 55153

Includes:

IVD-58775E (QTY: 1) | 22+ TUNDRA 3.0 VS RR CDEV COILOVER KIT
IVD-58561DJ (QTY: 1) | 22+ TUNDRA BILLET UCA DJ PRO KIT
IVD-55154 (QTY: 1) | 22+ TUNDRA SWAY BAR DROP KIT
IVD-54002 (QTY: 1) | 22+ TUNDRA BILLET REAR LOWER LINK KIT
IVD-54102 (QTY: 1) | 22+ TUNDRA BILLET REAR UPPER LINK KIT
IVD-57845EP (QTY: 1) | 22+ TUNDRA REAR 3.0 VS RR CDEV PAIR
IVD-53508 (QTY: 1) | 22+ TUNDRA IIC INSTALL KIT

IVD-K53216

Features:

Vehicle specific design for 2022-2023 Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Triple rate rear coil springs improve performance and ride quality while providing .5" of rear lift (non-TRD models)
On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
TECH NOTE: Included rear springs net .5" of rear lift on a Tundra without TRD Off-Road or TRD Sport suspension packages. A Tundra equipped with TRD Off-Road or TRD Sport packages will net 0" of lift, remaining at stock height in the rear. If taller rear ride heights are desired, consider ICON part # IVD-K53216S.
TECH NOTE: Tundras equipped with automatic leveling headlights also require part number IVD-55153

Includes:

IVD-58775E (QTY: 1) | 22-23 TUNDRA 3.0 VS RR CDEV COILOVER KIT
IVD-58561DJ (QTY: 1) | 22-23 TUNDRA BILLET UCA DJ PRO KIT
IVD-55154 (QTY: 1) | 22-23 TUNDRA SWAY BAR DROP KIT
IVD-54002 (QTY: 1) | 22-23 TUNDRA BILLET REAR LOWER LINK KIT
IVD-54102 (QTY: 1) | 22-23 TUNDRA BILLET REAR UPPER LINK KIT
IVD-54202 (QTY: 1) | 22-23 TUNDRA BILLET REAR ADJ TRACK BAR KIT
IVD-53508 (QTY: 1) | 22-23 TUNDRA IIC INSTALL KIT
IVD-51210 (QTY: 1) | 22-23 TUNDRA .5" LIFT TRIPLE RATE REAR COIL SPRING KIT
IVD-57845EP (QTY: 1) | 22-23 TUNDRA REAR 3.0 VS RR CDEV PAIR

IVD-K53216S (TRD)

Features:

Vehicle specific design for 2022-2023 Toyota Tundra
3.0 Series front coilovers with ICON’s multi-stage, tunable hydraulic “Bump Zone”
Adjustable front ride heights from 1.25-3.25” of front lift over stock when used with included billet aluminum UCAs
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Included sway bar drop brackets reduce bind in OE sway bar links
Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
Triple rate rear coil springs improve performance and ride quality while providing .75" of rear lift (TRD models)
On-vehicle adjustable rear track bar properly centers rear axle while also improve rear suspension performance
3.0 Series rear remote reservoir shocks provide maximum performance, 20% increase in wheel travel, and balanced tune with coilovers
All ICON shock absorbers are fully rebuildable and re-tunable

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5" w/ 5.75” Backspace / 25mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. LIFT HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE.
APPLICATION NOTE #85: ADVERTISED LIFT HEIGHT RANGES ARE FOR A STOCK EQUIPPED VEHICLE. INCREASING WEIGHT OF VEHICLE DUE TO ACCESSORIES WILL ALTER LIFT RANGE.
APPLICATION NOTE #142: NOT COMPATIBLE WITH TUNDRAS EQUIPPED WITH LOAD-LEVELING REAR HEIGHT CONTROL AIR SUSPENSION.
APPLICATION NOTE #144: NOT COMPATIBLE WITH TRD PRO
APPLICATION NOTE #149: FOR 4WD MODELS WITHOUT TRD OFF-ROAD PACKAGE ICON RECOMMENDS USING ICON DIFF DROP (PART# 55156) OR USING TOYOTA TRD AXLES (PART# 434200C020 DRIVER / 434100C020 PASS). FAILURE TO DO SO COULD RESULT IN FRONT AXLE DAMAGE. NOT REQUIRED FOR TRD PRO.
TECH NOTE: If upgrading a Tundra equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 1.25-3.25" over stock
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of .75-2.75" over stock
TECH NOTE: Tundra SR5 equipped with TRD Sport Suspension package will have lift height range of 2.25-4.25” over stock
TECH NOTE: Included rear springs net .75" of rear lift on a Tundra equipped with TRD Off-Road or TRD Sport suspension packages. A Tundra without TRD Off-Road or TRD Sport suspension packages will net 1.25" of rear lift. If lower rear ride heights are desired, consider ICON part # IVD-K53216.
TECH NOTE: Tundras equipped with automatic leveling headlights also require part number IVD-55153

Includes:

IVD-58775E (QTY: 1) | 22-23 TUNDRA 3.0 VS RR CDEV COILOVER KIT
IVD-58561DJ (QTY: 1) | 22-23 TUNDRA BILLET UCA DJ PRO KIT
IVD-55154 (QTY: 1) | 22-23 TUNDRA SWAY BAR DROP KIT
IVD-54002 (QTY: 1) | 22-23 TUNDRA BILLET REAR LOWER LINK KIT
IVD-54102 (QTY: 1) | 22-23 TUNDRA BILLET REAR UPPER LINK KIT
IVD-54202 (QTY: 1) | 22-23 TUNDRA BILLET REAR ADJ TRACK BAR KIT
IVD-53508 (QTY: 1) | 22-23 TUNDRA IIC INSTALL KIT
