ICON 2023+ Ford F250/F350 4-5.5" Coilover Conversion System with Expansion Packs

Name: ICON 2023+ Ford F250/F350 4-5.5" Coilover Conversion System with Expansion Packs
Brand: ICON Vehicle Dynamics
Price: 5412.87 USD
Availability: OutOfStock

Be the first to review this product

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This entry level system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads.

From $5,412.87

Only %1 left

SKU

IVD-23FSDSS-2_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description
IVD-K63171L	ICON 2023+ Ford F250/F350 4-5.5" Stage 1 Coilover Conversion System with Expansion Packs
IVD-K63172L	ICON 2023+ Ford F250/F350 4-5.5" Stage 2 Coilover Conversion System with Expansion Packs
IVD-K63173L	ICON 2023+ Ford F250/F350 4-5.5" Stage 3 Coilover Conversion System with Expansion Packs
IVD-K63174L	ICON 2023+ Ford F250/F350 4-5.5" Stage 4 Coilover Conversion System with Expansion Packs
IVD-K63175L	ICON 2023+ Ford F250/F350 4-5.5" Stage 5 Coilover Conversion System with Expansion Packs
IVD-K63176L	ICON 2023+ Ford F250/F350 4-5.5" Stage 6 Coilover Conversion System with Expansion Packs
IVD-K63177L	ICON 2023+ Ford F250/F350 4-5.5" Stage 7 Coilover Conversion System with Expansion Packs
IVD-K63178L	ICON 2023+ Ford F250/F350 4-5.5" Stage 8 Coilover Conversion System with Expansion Packs
IVD-K63179L	ICON 2023+ Ford F250/F350 4-5.5" Stage 9 Coilover Conversion System with Expansion Packs

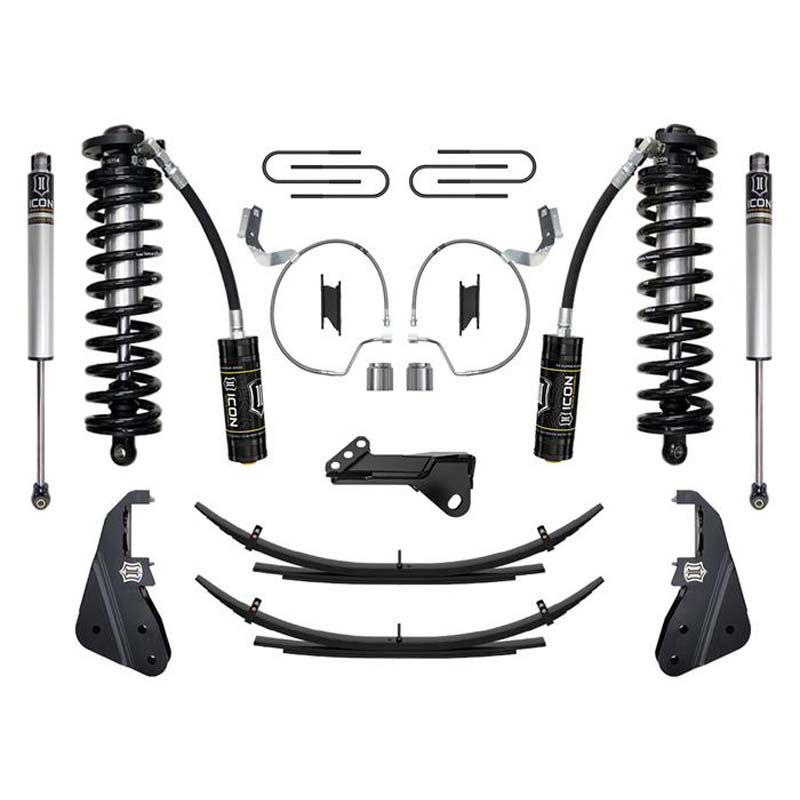

IVD-K63171L

ICON's 4-5.5" Lift Stage 1 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.0 Aluminum Series internal reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

This suspension system features high quality CNC machined, laser cut, and brake formed components and with the endless hours ICON has spent testing and tuning our suspension components and shock absorbers as a complete system, you can rest assured you have the best suspension solution on the market.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.0 Aluminum Series internal reservoir rear shocks
Increased wheel travel and ride quality over stock
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant anodized rear shock bodies with 5/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721 (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64046 (QTY: 1) | 23-24 FSD RADIUS ARM DROP KIT
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-66516 (QTY: 2) | 17-24 FSD REAR 0-2" 2.0 VS IR

IVD-K63172L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 2 system is perfect for on-road and towing use, as well as mild off-road use like job site duty and washboard gravel roads.

ICON's 4-5.5" Lift Stage 2 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. ICON's dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.0 Aluminum Series remote reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.0 Aluminum Series remote reservoir rear shocks
Increased wheel travel and ride quality over stock
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Dual steering stabilizer kit offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant anodized steering stabilizer and rear shock bodies with 5/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721 (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64046 (QTY: 1) | 23-24 FSD RADIUS ARM DROP KIT
IVD-65002 (QTY: 1) | 23-24 FSD DUAL STABILIZER KIT
IVD-36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-66516R (QTY: 2) | 17-24 FSD REAR 0-2" 2.0 VS RR

IVD-K63173L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 4 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5" Lift Stage 4 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics. ICON's dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Increased wheel travel and ride quality over stock
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
Dual steering stabilizer kit offers increased steering damping
Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721 (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
IVD-64046 (QTY: 1) | 23-24 FSD RADIUS ARM DROP KIT
IVD-65002 (QTY: 1) | 23-24 FSD DUAL STABILIZER KIT
IVD-36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-37705P (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB PAIR

IVD-K63175L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 5 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5" Lift Stage 5 Coilover Conversion System features 2.5 Series remote reservoir CDCV coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

ICON's Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series piggyback reservoir CDCV rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included ICON CDC Valves are externally adjustable valves that restrict oil flow into the reservoir which creates 10 levels of compression damping force ranges. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Front and rear shocks are ICON CDCV equipped for 10 settings of external compression damping adjustment
Increased wheel travel and ride quality over stock
Radius arm drop brackets correct geometry and caster for optimal alignment specs
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized steering stabilizer and rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721C (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
IVD-64046 (QTY: 1) | 23-24 FSD RADIUS ARM DROP KIT
IVD-65053 (QTY: 1) | 23-24 FSD 2.5 PB CENTERLINE STABILIZER KIT
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-37705CP (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB CDCV PAIR

IVD-K63176L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 6 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5" Lift Stage 6 Coilover Conversion System features 2.5 Series remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This "freeing up" of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

ICON's dual opposing steering stabilizer kit featuring ICON 2.0 Aluminum Series shocks improves steering damping to better control undesirable steering feedback caused by larger tires. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
Dual steering stabilizer kit offers increased steering damping
Corrosion resistant anodized steering stabilizer shock bodies with 5/8" shafts
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721 (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
IVD-64053 (QTY: 1) | 23-24 FSD 4-LINK FRAME BRACKET KIT
IVD-64052 (QTY: 1) | 23-24 FSD FRONT UPPER LINKS
IVD-164502 (QTY: 1) | 05-24 FSD FRONT LOWER LINKS
IVD-65002 (QTY: 1) | 23-24 FSD DUAL STABILIZER KIT
IVD-36511 (QTY: 2) | 99-24 FSD 4WD STABILIZER(DUAL OPPOSING) 2.0 VS IR
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-37705P (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB PAIR

IVD-K63177L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 7 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5" Lift Stage 7 Coilover Conversion System features 2.5 Series CDCV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To take advantage of the coilover's option to mount secondary shocks in the stock location, 2.5 Aluminum Series CDCV remote reservoir secondary front shocks are included, effectively doubling shock damping ability on the front of the vehicle. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This "freeing up" of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

ICON's Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series CDCV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. The included ICON CDC Valves are externally adjustable valves that restrict oil flow into the reservoir which creates 10 levels of compression damping force ranges. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
Front, front-secondary, and rear shocks are all ICON CDCV equipped for 10 settings of external compression damping adjustment
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized steering stabilizer, front-secondary, and rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721C (QTY: 1) | 05-24 FSD 4WD 4-5.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
IVD-64053 (QTY: 1) | 23-24 FSD 4-LINK FRAME BRACKET KIT
IVD-64052 (QTY: 1) | 23-24 FSD FRONT UPPER LINKS
IVD-164502 (QTY: 1) | 05-24 FSD FRONT LOWER LINKS
IVD-65053 (QTY: 1) | 23-24 FSD 2.5 PB CENTERLINE STABILIZER KIT
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-611003 (QTY: 1) | 2.5 RESI DOUBLER MOUNT 7.5" KIT
IVD-67811CP (QTY: 1) | 23-24 FSD 4.5" FRONT 2.5 VS RR CDCV PAIR
IVD-37705CP (QTY: 1) | 99-24 FSD 0-3" REAR 2.5 VS PB CDCV PAIR

IVD-K63178L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 8 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5" Lift Stage 8 Coilover Conversion System features 2.5 Series CDEV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. These bolt-in coilovers also allow the option to mount secondary shocks in the stock location, effectively doubling shock damping ability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This "freeing up" of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

ICON's Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series CDEV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized steering stabilizer and rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
An iOS operated device is required to run ICON Intelligent Control App
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required. If secondary shocks are CDEV equipped, part number 191207 is also required.
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721E (QTY: 1) | 17-24 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
IVD-64053 (QTY: 1) | 23-24 FSD 4-LINK FRAME BRACKET KIT
IVD-64052 (QTY: 1) | 23-24 FSD FRONT UPPER LINKS
IVD-164502 (QTY: 1) | 05-24 FSD FRONT LOWER LINKS
IVD-65053 (QTY: 1) | 23-24 FSD 2.5 PB CENTERLINE STABILIZER KIT
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-93502 (QTY: 1) | 23-24 FSD IIC INSTALL KIT
IVD-37705EP (QTY: 1) | 17-24 FSD 0-3" REAR 2.5 VS PB CDEV PAIR

IVD-K63179L

This ICON Vehicle Dynamics 4-5.5" coilover conversion system is a great way to lift your 4WD 2023+ Ford F-250/F-350 Super Duty while drastically improving ride quality and performance and allowing fitment of larger, more aggressive wheel and tire combinations. This Stage 9 system is perfect for on-road and towing use, as well as job site duty, washboard gravel roads, and more aggressive off-road adventures.

ICON's 4-5.5" Lift Stage 9 Coilover Conversion System features 2.5 Series CDEV remote reservoir coilovers that provide superb on-road comfort and off-road performance while at the same time allowing for end-user ride height adjustability. Their remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. To take advantage of the coilover's option to mount secondary shocks in the stock location, 2.5 Aluminum Series CDCV remote reservoir secondary front shocks are included, effectively doubling shock damping ability on the front of the vehicle. ICON Vehicle Dynamics Ford Super Duty 4-Link kit further improves performance by eliminating suspension bind commonly experienced with factory radius arms during articulation and allows on-vehicle caster angle adjustment. This "freeing up" of the front end and the ability of the 4-Link Kit to maintain positive caster through the range of travel equates to an unparalleled ride quality in all conditions. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. An adjustable track bar allows for on-vehicle adjustment to fine tune track alignment as well as eliminating the deflective OE track bar bushings for an overall more rigid unit to improve the vehicles handling characteristics.

ICON's Centerline steering stabilizer kit features a 2.5 Aluminum Series shock absorber with a piggyback reservoir for improved steering damping compared to ICON dual 2.0 steering stabilizers, better controlling undesirable steering feedback caused by larger tires while also improving ground clearance. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.5 Aluminum Series CDEV piggyback reservoir rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road with improved performance compared to 2.0 Aluminum Series shocks. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.

Features:

Fits 2023+ F-250 / F-350 4WD applications
Bolt-in system fits in OE coil bucket location
Ride height adjustable ICON 2.5 Series coilovers provide 4-5.5" of front lift
Vehicle-specific shock valving provides unparalleled ride quality and control
ICON 2.5 Aluminum Series remote reservoir secondary front shocks for increased damping ability and off-road performance
ICON 2.5 Aluminum Series piggyback reservoir rear shocks
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Increased wheel travel and ride quality over stock
ICON 4-Link system eliminates binding during articulation and maintains positive caster through the entire range of travel
Track bar drop bracket reduces track bar angle and corrects bump steer geometry
Adjustable track bar allows fine tuning of track alignment and improves handling characteristics
ICON 2.5 Centerline steering stabilizer kit with piggyback reservoir offers increased steering damping
Stainless steel braided front brake lines
Leaf spring expansion packs improve ride quality and provide 2" of rear lift
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Corrosion resistant hard anodized steering stabilizer, front-secondary, and rear shock bodies with 7/8" shafts
Shocks are fully rebuildable and re-tunable
Lifetime guarantee against coil spring breakage or sagging
Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Notes:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25" Backspace / 6mm Offset
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
APPLICATION NOTE #115: Lift heights based on 4WD crew cab diesel
APPLICATION NOTE #151: Fits single rear wheel models only
Will not fit 2024 models
Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
Will not fit F-350 Cab & Chassis models
An iOS operated device is required to run ICON Intelligent Control App
Reduction in rear spring rate may reduce accuracy of OnBoard Scales, if equipped
Due to tight clearances and varying placement of vehicle's wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.

Includes:

IVD-64051 (QTY: 1) | 23-24 FSD FRONT 4.5" BOX KIT
IVD-61721E (QTY: 1) | 17-24 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT
IVD-64039 (QTY: 1) | 08-24 FSD TRACK BAR BUMP STEER BRACKET KIT
IVD-64038 (QTY: 1) | 17-24 FSD ADJ TRACKBAR KIT
IVD-64053 (QTY: 1) | 23-24 FSD 4-LINK FRAME BRACKET KIT
IVD-64052 (QTY: 1) | 23-24 FSD FRONT UPPER LINKS
IVD-164502 (QTY: 1) | 05-24 FSD FRONT LOWER LINKS
IVD-65053 (QTY: 1) | 23-24 FSD 2.5 PB CENTERLINE STABILIZER KIT
IVD-168507 (QTY: 2) | 08-24 F250/F350 LEAF SPRING EXPANSION PACK
IVD-67003 (QTY: 1) | 11-24 FSD REAR 15" U-BOLT KIT
IVD-93502 (QTY: 1) | 23-24 FSD IIC INSTALL KIT
IVD-191207 (QTY: 1) | IIC CONTROLER ALT FUNCTION PLUG KIT
IVD-611003 (QTY: 1) | 2.5 RESI DOUBLER MOUNT 7.5" KIT
IVD-67811EP (QTY: 1) | 23-24 FSD 4.5" FRONT 2.5 VS RR CDEV PAIR
IVD-37705EP (QTY: 1) | 17-24 FSD 0-3" REAR 2.5 VS PB CDEV PAIR

Related Products
