ICON 2023 Ford F250/F350 Diesel 2.5" Suspension System

ICON Complete Suspension Systems for Ford Super Duty begin at Stage 1, featuring ICON Dual Stage Front Coil Springs and 2.0 Series Shock Absorbers. Rear shocks are ICON 2.0 Series Internal Reservoir Shocks. This basic kit provides 2.5" of front-end lift while improving ride and handling over stock.

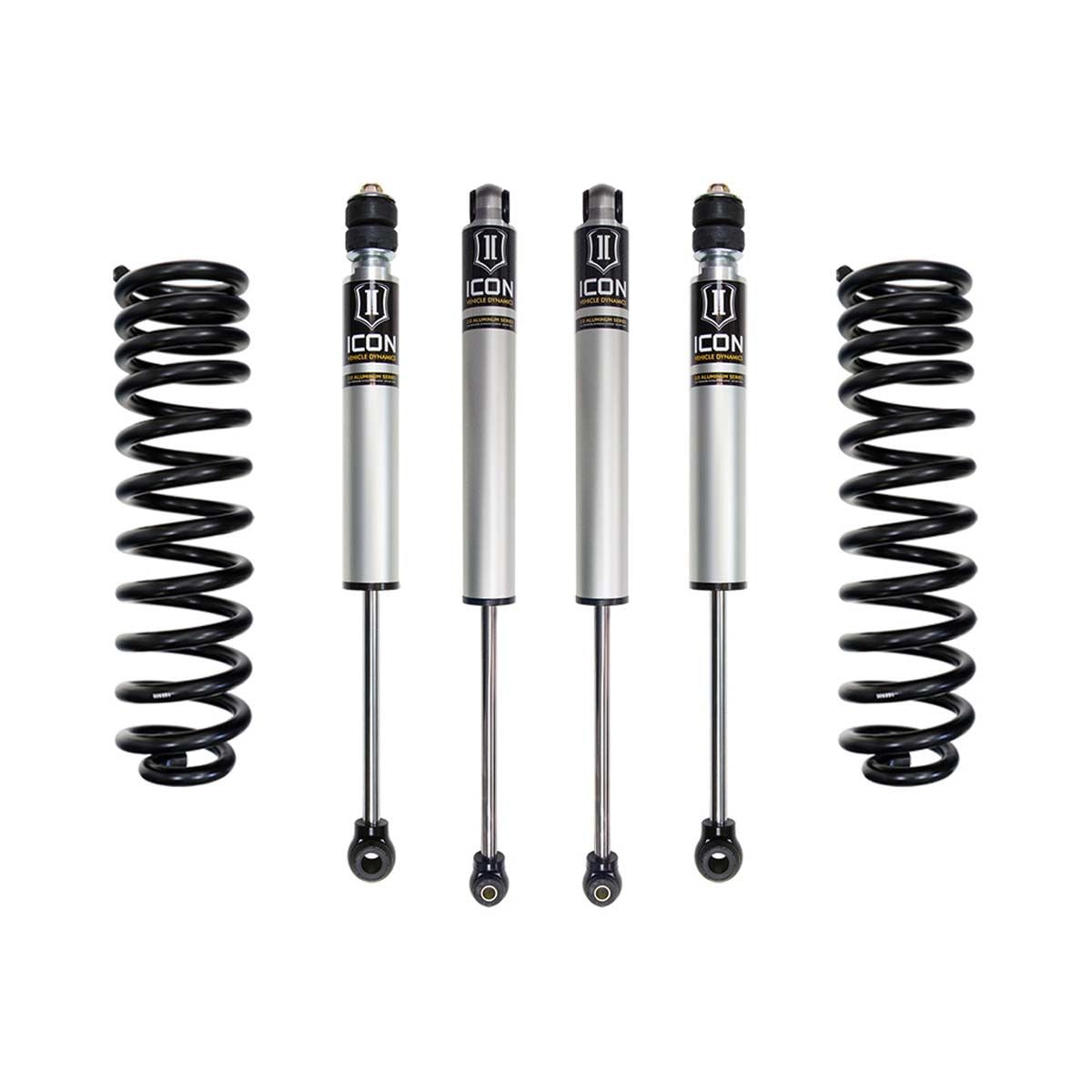

IVD-K62561 - Stage 1

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-66512 05-23 FSD 4WD 2.5" FRONT 2.0 VS IR (2)
• IVD-66516 17-23 FSD REAR 0-2" 2.0 VS IR (2)

IVD-K62561L - Stage 1 with Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-66512 05-23 FSD 4WD 2.5" FRONT 2.0 VS IR (2)
• IVD-66516 17-23 FSD REAR 0-2" 2.0 VS IR (2)
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT

Stage 2 builds on Stage 1 with 2.5 VS Front Shocks or Coilovers, with Reservoirs. Rear shocks are also upgraded to 2.5 VS with piggyback reservoirs. These upgrades provide improved damping performance with larger pistons and valves, as well as increased fluid volume and heat dissipation.

IVD-K62562 - Stage 2

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR

IVD-K62562L - Stage 2 with Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT

IVD-K62562R - Stage 2 with Radius Arms

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-64042 23 FSD RADIUS ARM SYSTEM

IVD-K62562RL - Stage 2 with Radius Arms/Expansion Pack

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM

Stage 3 adds ICON's Adjustable Front Track Bar to help improve front axle alignment and suspension flexibility.

IVD-K62563 - Stage 3

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT

IVD-K62563L - Stage 3 with Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT

IVD-K62563R - Stage 3 with Radius Arms

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM

IVD-K62563RL - Stage 3 with Radius Arms/Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67700P 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS PB PAIR
• IVD-37705P 99-23 FSD 0-3" REAR 2.5 VS PB PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM

Stage 4 provides customization of suspension performance with the addition of ICON's Compression Damping Control Valve system on all four shocks. CDCV provides ten levels of manually adjustable compression damping to optimize performance for any on- or off-road conditions. The Stage 4 Coilover Conversion System also gains ICON's Dual Steering Stabilizer Kit.

IVD-K62564 - Stage 4

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT

IVD-K62564L - Stage 4 with Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT

IVD-K62564R - Stage 4 with Radius Arms

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM

IVD-K62564RL - Stage 4 with Radius Arms/Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACK BAR KIT
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM

At Stage 5, the Coil Spring and Coilover Conversion systems part ways significantly. The Stage 5 Gas/Diesel Coil Spring Systems gain ICON's Dual Steering Stabilizer Kit and 2" Bump Stop Spacer Kit. And the Stage 5 Coilover Conversion System takes advantage of the coilover's packaging advantage to add an additional pair 2.5 VS front shocks with piggyback reservoirs and CDCV's for ultimate suspension performance.

IVD-K62565 - Stage 5

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACKBAR KIT
• IVD-65002 23 FSD DUAL STABILIZER KIT
• IVD-36511 99-23 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR (2)
• IVD-64037 05-23 FSD 2" BUMP STOP SPACER KIT

IVD-K62565L - Stage 5 with Expansion Packs

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACKBAR KIT
• IVD-65002 23 FSD DUAL STABILIZER KIT
• IVD-36511 99-23 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR (2)
• IVD-64037 05-23 FSD 2" BUMP STOP SPACER KIT
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT

IVD-K62565R - Stage 5 with Radius Arms

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACKBAR KIT
• IVD-65002 23 FSD DUAL STABILIZER KIT
• IVD-36511 99-23 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR (2)
• IVD-64037 05-23 FSD 2" BUMP STOP SPACER KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM

IVD-K62565RL - Stage 5 with Radius Arms/Expansion Pack

Includes:

• IVD-62512 23 FSD FRONT 2.5 DUAL RATE DIESEL SPRING KIT
• IVD-67800CP 05-23 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
• IVD-37705CP 99-23 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
• IVD-64038 17-23 FSD ADJ TRACKBAR KIT
• IVD-65002 23 FSD DUAL STABILIZER KIT
• IVD-36511 99-23 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR (2)
• IVD-64037 05-23 FSD 2" BUMP STOP SPACER KIT
• IVD-168507 08-23 F250/F350 LEAF SPRING EXPANSION PACK (2)
• IVD-67004 11-23 FSD REAR 12" U-BOLT KIT
• IVD-191201 1" CAST BLOCK KIT 3" WIDE
• IVD-61002 05-23 FSD 2" REAR BUMP STOP SPACER KIT
• IVD-64042 23 FSD RADIUS ARM SYSTEM
