ICON 2024+ Land Cruiser 250 Series Stage 1-7, 1.25-3" Lift Suspension System, Billet UCA

Be the first to review this product

From $2,538.47

Only %1 left

SKU

IVD-24LC250SS17B_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description
IVD-K53361	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 1 Suspension System NO UCA
IVD-K53362	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 2 Suspension System Billet
IVD-K53363	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 3 Suspension System Billet
IVD-K53364	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 4 Suspension System Billet
IVD-K53365	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 5 Suspension System Billet
IVD-K53366	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 6 Suspension System Billet
IVD-K53367	ICON 2024+ Land Cruiser 250 Series 1.25-3" Lift Stage 7 Suspension System Billet

ICON is proud to introduce a range of performance suspension components and complete systems for the new 2024 Toyota Landcruiser 250. Together, these components yield 1.25" to 3" of suspension lift and leveling, to fit up to 34" tires* (or larger with some trimming). Performance is built in, with increased suspension travel and improved ride and handling characteristics both on- and off-road. Individual components include 2.5 Vehicle Series front coilovers and rear shocks, billet or tubular upper control arms featuring the incredible Delta Joint Pro, and ICON custom 2" Dual Rate Rear Coil Springs. To assist Landcruiser owners in building the suspension system to meet their needs we have pre-configured 12 Stages of our Complete Suspension Systems.

ICON Upper Control Arms for Landcruiser 250 feature the high performance Delta Joint PRO for unmatched range of motion, strength and durability. They're also easily serviceable/rebuildable. Delta Joint PRO is featured in both the tubular and billet versions of ICON's UCA, which are available on their own or as part of ICON's Complete Suspension Systems in Stage 2 and up.

IVD-K53361 NO UCA

Features:

Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Includes:

IVD-58691 24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-56520 24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

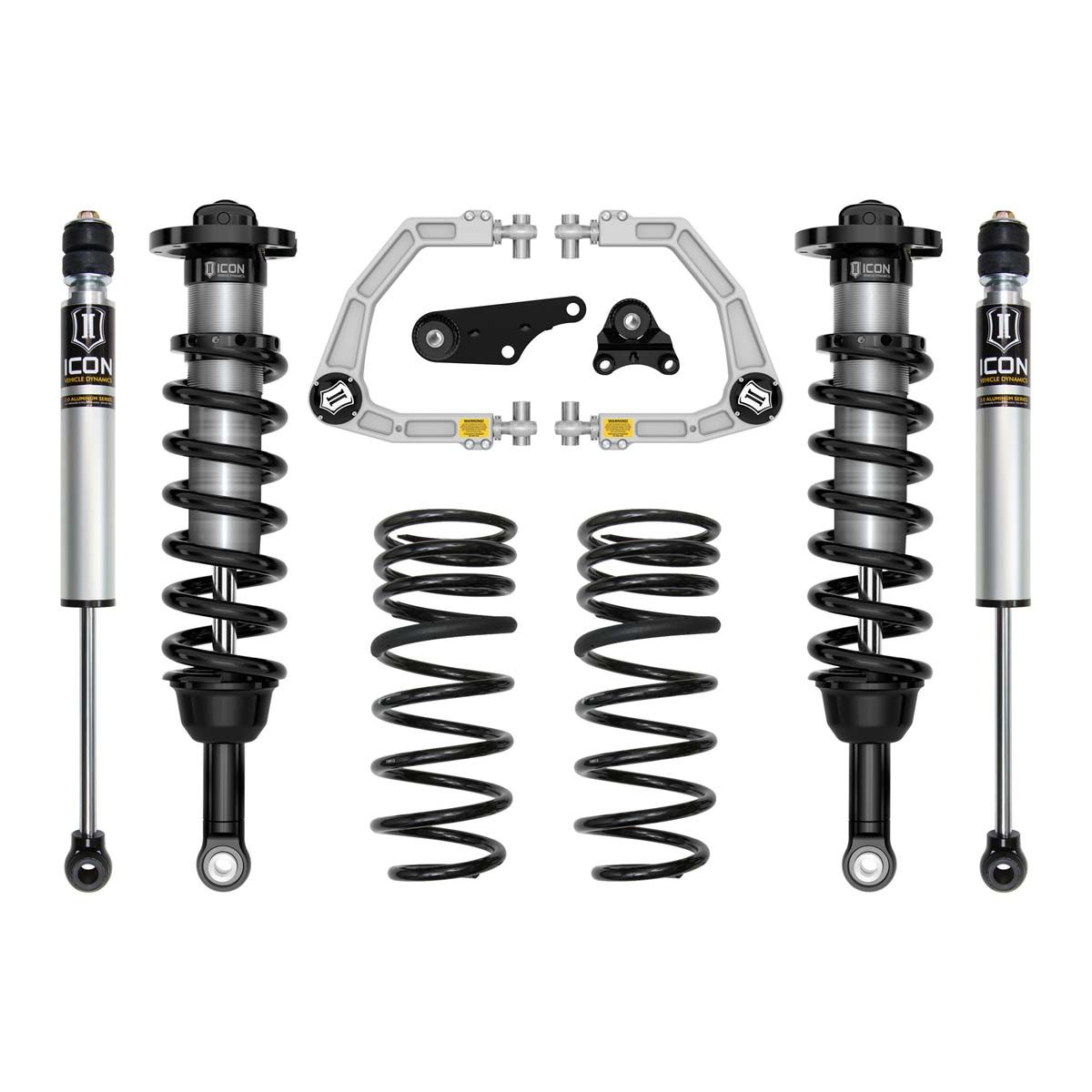

IVD-K53362

Features:

Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Includes:

IVD-58691 24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-56520 24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

IVD-K53363

Features:

Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Includes:

IVD-58691 24 LAND CRUISER 250 SERIES FRONT 2.5 VS IR COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-56520 24 LC250/24 GX550 0-3" REAR 2.0 VS IR (2)
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
IVD-54202 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

IVD-K53364

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts

Includes:

IVD-58791 24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-56520R 24 LC250/24 GX550 0-3" DRIVER REAR 2.0 VS RR
IVD-56522R 24 LC250/24 GX550 0-3" PASS REAR 2.0 VS RR
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
IVD-54202 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
IVD-54003 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

IVD-K53365

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58791 24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-57870P 24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT

IVD-K53366

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58791 24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-57870P 24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
IVD-54202 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

IVD-K53367

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel
Adjustable coilovers provide 1.25-3" front lift height over stock
Billet Aluminum or Tubular Steel UCAs for added strength and durability, and castor correction for lifted vehicles. On-vehicle caster/camber adjustment with Billet UCAs.
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing 2" of rear lift
Billet or Tubular rear lower links improve rear end articulation. Billet links allow for on-vehicle pinion angle adjustment
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improving rear suspension performance
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58791 24 LAND CRUISER 250 SERIES FRONT 2.5 VS RR COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-57870P 24 LC250/24 GX550 0-3" REAR 2.5 VS RR PAIR
IVD-52752 24 LC250/24 GX550 2" DUAL RATE REAR SPRING KIT
IVD-54202 22-24 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
IVD-54003 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT

Notes:

The following tech and fitment data applies to all of these Suspension System Stages:

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.5 with 6.32” Backspace / 40mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.6” Backspace / 40mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
ICON Delta Joint Pro front upper control arms are recommended to maintain proper wheel alignment above 2" of lift
