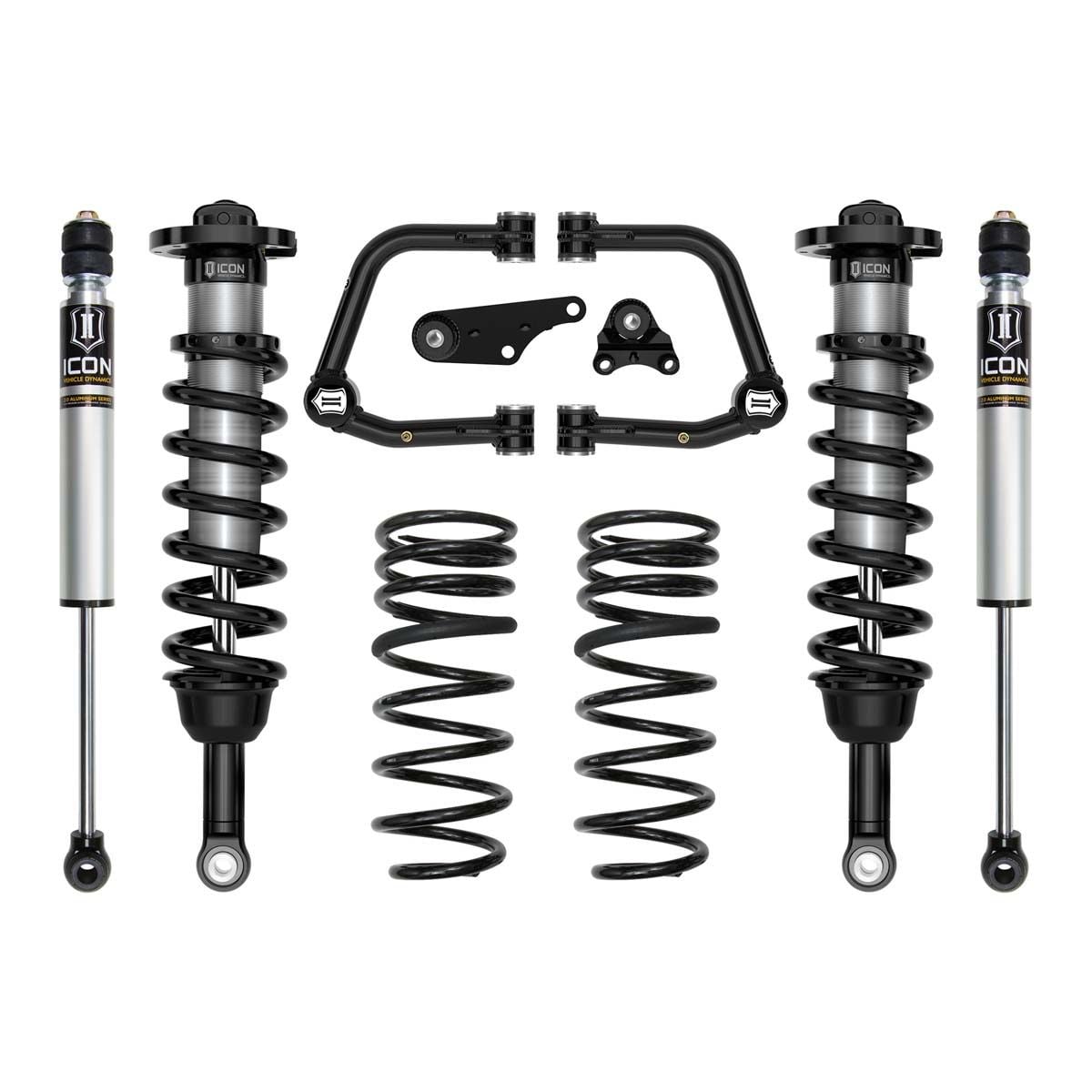

ICON 2024 Tacoma 1.25-3" Suspension System with Tubular UCA, Overland Rear Coils

For your ordering convenience ICON have configured "Overland" versions of Stages 2 through 13 of ICON's Performance Suspension Systems for the 4th Gen Tacoma. These Stages are identical to ICON's standard Stages, but with these Overland Rear Coil Springs instead of the standard duty Triple-Rate Rear Coils.

From $7,528.92

Only %1 left

SKU

IVD-24TTACOBSSBTX_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description
IVD-K53292TX	ICON 2024 Tacoma 1.25-3" Stage 2 Suspension System Tubular Overland Rear Coils
IVD-K53293TX	ICON 2024 Tacoma 1.25-3" Stage 3 Suspension System Tubular Overland Rear Coils
IVD-K53294TX	ICON 2024 Tacoma 1.25-3" Stage 4 Suspension System Tubular Overland Rear Coils
IVD-K53295TX	ICON 2024 Tacoma 1.25-3" Stage 5 Suspension System Tubular Overland Rear Coils
IVD-K53296TX	ICON 2024 Tacoma 1.25-3" Stage 6 Suspension System Tubular Overland Rear Coils
IVD-K53297TX	ICON 2024 Tacoma 1.25-3" Stage 7 Suspension System Tubular Overland Rear Coils
IVD-K53298TX	ICON 2024 Tacoma 1.25-3" Stage 8 Suspension System Tubular Overland Rear Coils
IVD-K53299TX	ICON 2024 Tacoma 1.25-3" Stage 9 Suspension System Tubular Overland Rear Coils
IVD-K53300TX	ICON 2024 Tacoma 1.25-3" Stage 10 Suspension System Tubular Overland Rear Coils
IVD-K53301TX	ICON 2024 Tacoma 1.25-3" Stage 11 Suspension System Tubular Overland Rear Coils
IVD-K53302TX	ICON 2024 Tacoma 1.25-3" Stage 12 Suspension System Tubular Overland Rear Coils
IVD-K53303TX	ICON 2024 Tacoma 1.25-3" Stage 13 Suspension System Tubular Overland Rear Coils

IVD-K53292TX

Features:

Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular or billet aluminum UCAs for added strength, durability. Tubular UCAs feature fixed alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts

Includes:

IVD-58680 24 TACOMA 2.5 VS IR COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-56518 24 TACOMA 0-1" REAR 2.0 VS IR (2)
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53293TX

Features:

Vehicle specific tuned front and rear shocks for superior shock damping and control
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts

Includes:

IVD-58680 24 TACOMA 2.5 VS IR COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-56518R 24 TACOMA 0-1" REAR 2.0 VS RR (2)
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53294TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780 24 TACOMA 2.5 VS RR COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-57808P 24 TACOMA 0-1" REAR 2.5 VS RR PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53295TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780C 24 TACOMA 2.5 VS RR CDCV COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-57808CP 24 TACOMA 0-1" REAR 2.5 VS RR CDCV PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53296TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780E 24 TACOMA 2.5 VS RR CDEV COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-53509 24 TACOMA/24 LC250 IIC INSTALL KIT
IVD-57808EP 24 TACOMA 0-1" REAR 2.5 VS RR CDEV PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53297TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
ICON engineered coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780 24 TACOMA 2.5 VS RR COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-57808P 24 TACOMA 0-1" REAR 2.5 VS RR PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53298TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780C 24 TACOMA 2.5 VS RR CDCV COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-57808CP 24 TACOMA 0-1" REAR 2.5 VS RR CDCV PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53299TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780C 24 TACOMA 2.5 VS RR CDCV COILOVER KIT
IVD-58552DJ 24 TACOMA/24 LC250/24 GX550 BILLET UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-57808CP 24 TACOMA 0-1" REAR 2.5 VS RR CDCV PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53300TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear lower links improve rear end articulation and allow for pinion angle adjustment
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780E 24 TACOMA 2.5 VS RR CDEV COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT
IVD-53509 24 TACOMA/24 LC250 IIC INSTALL KIT
IVD-57808EP 24 TACOMA 0-1" REAR 2.5 VS RR CDEV PAIR

IVD-K53301TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780C 24 TACOMA 2.5 VS RR CDCV COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-54102T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
IVD-54202 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
IVD-57808CP 24 TACOMA 0-1" REAR 2.5 VS RR CDCV PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53302TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780X 24 TACOMA 2.5 VS RR CDXS COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-54102T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
IVD-54202 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
IVD-57808XP 24 TACOMA 0-1" REAR 2.5 VS RR CDXS PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

IVD-K53303TX

Features:

2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
Increased wheel travel and improved ride quality over stock
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
Adjustable coilovers provide 1.25-3" front lift height over stock
Tubular UCAs for added strength, durability, and alignment correction for better drivability
UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
Dual rate rear coil springs improve performance and ride quality while providing .5" rear lift height over stock with approximately 600lbs of additional weight in the rear
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
ICON engineered front and rear coil springs
FK Rod End bearings for extended longevity and minimal deflection
Tubular rear upper and lower links improve rear end articulation and allow for pinion angle adjustment
On-vehicle adjustable billet aluminum rear track bar properly centers rear axle while also improve rear suspension performance
2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts provide increased performance and balanced tune with coilovers

Includes:

IVD-58780E 24 TACOMA 2.5 VS RR CDEV COILOVER KIT
IVD-58452DJ 24 TACOMA/24 LC250/24 GX550 TUBULAR UCA DJ PRO KIT
IVD-55160 24 TACOMA/24 LC250 DIFF DROP KIT
IVD-54002T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA TUBULAR REAR LOWER LINK KIT
IVD-54102T 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/LC250/GX550 TUBULAR REAR UPPER LINK KIT
IVD-54202 22-25 TUNDRA/23-24 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
IVD-53509 24 TACOMA/24 LC250 IIC INSTALL KIT
IVD-57808EP 24 TACOMA 0-1" REAR 2.5 VS RR CDEV PAIR
IVD-51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT

Related Products
