ICON 2021-2024 Ford F150 Tremor 4WD Suspension System with Billet UCA

ICON is proud to introduce a range of 3-inch Complete Suspension System "Stage" kits for 2021 and newer Ford F150 Tremor. All of these kits feature performance-proven ICON 2.5 Vehicle Series Front Coilovers and Rear Shocks and Billet Front Upper Control Arms with ICON's patented Delta Joint PRO.

From $3,641.20

Only %1 left

SKU

IVD-K9316XB_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

All Stages feature ICON 2.5 VS Front Coilovers which provide a 20% increase in travel over stock while imparting superior ride quality and off-road handling. ICON Vehicle Series shocks are custom tuned for each specific vehicle application to maximize suspension performance. All stages also feature ICON Billet Front Upper Control Arms to provide bind-free travel as well as caster correction to maintain superior drivability. The Delta Joint Pro is greaseable, serviceable, and carries a 1-year limited warranty.

Each Stage offers key, incremental performance enhancements to meet any level of budget or performance expectations. Higher Stages feature larger rear shocks, remote shock reservoirs and both manual compression adjustment (CDCV) or the fully automatic, on-the-fly tuning of the incredible CDEV system.

Part #	Description
IVD-K93161	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 1 Suspension System with Billet UCA
IVD-K93162	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 2 Suspension System with Billet UCA
IVD-K93162L	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 2 Suspension System with Billet UCA / Leaf Pack
IVD-K93163	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 3 Suspension System with Billet UCA
IVD-K93163L	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 3 Suspension System with Billet UCA / Leaf Pack
IVD-K93164	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 4 Suspension System with Billet UCA
IVD-K93164D	ICON 2021-2024 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 4 Suspension System with Billet UCA, CDXS
IVD-K93164L	ICON 2021-2024 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 4 Suspension System with Billet UCA, CDCV / Leaf Pack
IVD-K93164LD	ICON 2021-2024 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 4 Suspension System with Billet UCA, CDXS / Leaf Pack
IVD-K93165	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 5 Suspension System with Billet UCA
IVD-K93165L	ICON 2021-2023 Ford F150 Tremor 4WD, 2.5-3" Lift, Stage 5 Suspension System with Billet UCA / Leaf Pack

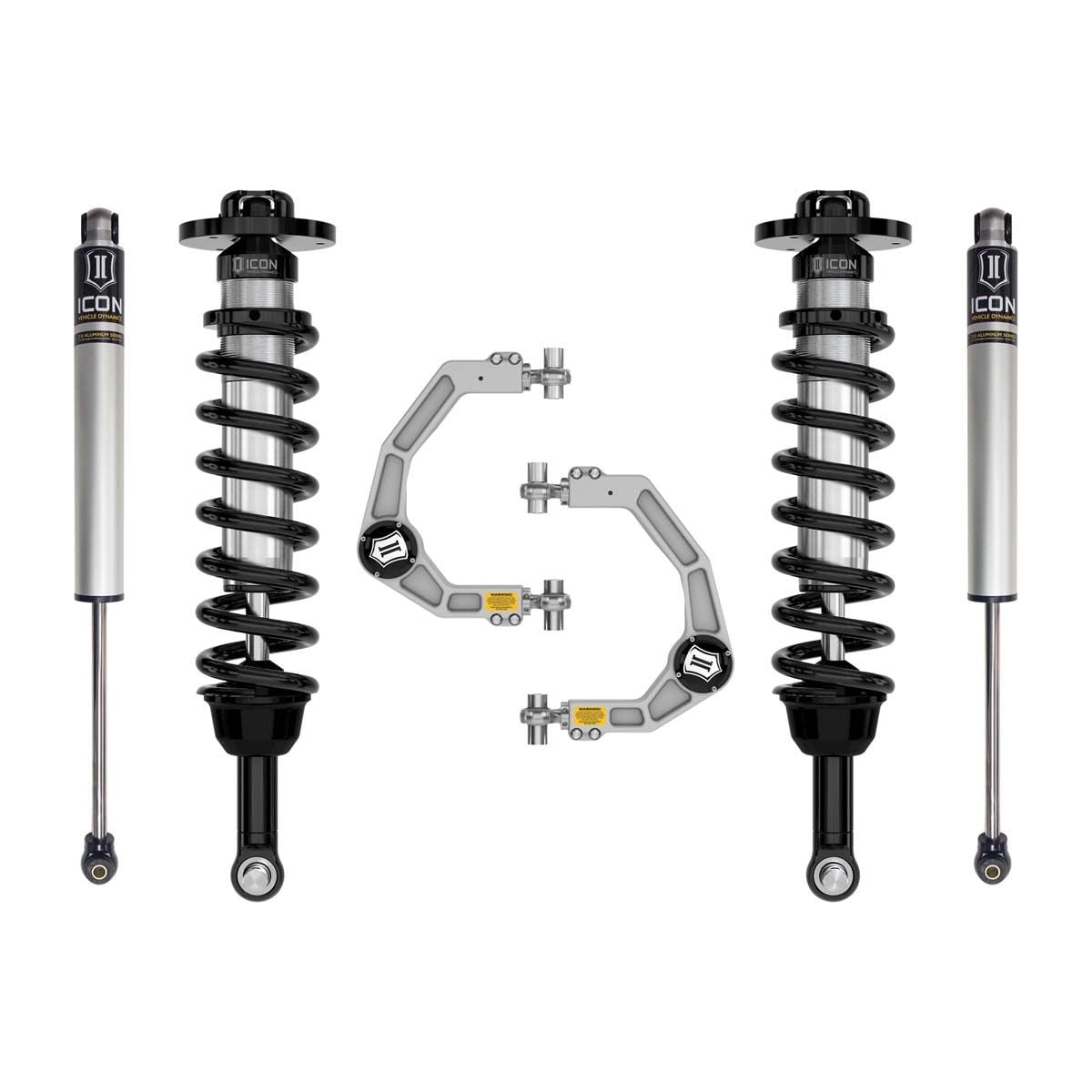

IVD-K93161

ICON's basic performance stage for the Tremor, featuring internal reservoir front coilovers and 2.0 rear shocks.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Utilizes the NEW Delta Joint Pro joint
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
PTFE lined spherical bearings and application specific mounting hardware
Adjustable Coilovers from 2.5-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.0 aluminum body rear IFP shock with 5/8" polished shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Billet UCA for added strength, durability and an additional degree of caster for better drivability

Includes:

IVD-91723 21-23 F150 4WD 3" 2.5 VS IR COILOVER KIT
IVD-98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
IVD-96518 09-23 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR (2)

Installation Instructions

IVD-K93162

Stage 2 ups the ante with the addition of 2.5 VS rear shocks with piggyback reservoirs. The increased fluid capacity and surface area will provide superior heat dissipation.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Utilizes the NEW Delta Joint Pro joint
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
PTFE lined spherical bearings and application specific mounting hardware
Adjustable coilovers from 2.5-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 Series rear piggyback reservoir shocks with 7/8" shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Billet UCA for added strength, durability and an additional degree of caster for better drivability

Includes:

IVD-91723 21-23 F150 4WD 3" 2.5 VS IR COILOVER KIT
IVD-98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
IVD-97721P 21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR

Installation Instructions

IVD-K93162L

Features:

Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
3 user-adjustable rear spring rates for unique vehicle setups
Reduced rear axle wrap and improved ride quality compared to stock leaf springs
Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
100% Bolt-on system - no drilling, cutting, or welding necessary for install

Includes:

IVD-91723 (QTY: 1) | 21-23 F150 TREMOR 2.5-3" 2.5 VS IR COILOVER KIT
IVD-98523DJ (QTY: 1) | 21-23 F150 BILLET UCA DJ PRO KIT
IVD-97721P (QTY: 1) | 21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR
IVD-91001 (QTY: 1) | 10-23 FORD F-SERIES BILLET 1" LOWERING SHACKLE KIT
IVD-198510 (QTY: 2) | 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
IVD-95225H (QTY: 1) | 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT

IVD-K93163

Stage 3 is a balanced system with front and rear reservoirs for increased shock fluid capacity. The improved heat disspation will maintain damping performance through longer, faster, rougher off-road sections without fading.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Utilizes the NEW Delta Joint Pro joint
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
PTFE lined spherical bearings and application specific mounting hardware
Adjustable coilovers from 2-3.25” of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 Series rear piggyback reservoir shocks with 7/8" shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Billet UCA for added strength, durability and an additional degree of caster for better drivability

Includes:

IVD-91824 21-23 F150 4WD 3" 2.5 VS RR COILOVER KIT
IVD-98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
IVD-97721P 21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR

Installation Instructions

IVD-K93163L

Features:

Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
2.5 Series front coilovers with remote reservoirs for improved shock cooling
Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
3 user-adjustable rear spring rates for unique vehicle setups
Reduced rear axle wrap and improved ride quality compared to stock leaf springs
Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
100% Bolt-on system - no cutting or welding necessary for install

Includes:

IVD-91824 (QTY: 1) | 21-23 F150 TREMOR 2.5-3" 2.5 VS RR COILOVER KIT
IVD-98523DJ (QTY: 1) | 21-23 F150 BILLET UCA DJ PRO KIT
IVD-97721P (QTY: 1) | 21-23 F150 4WD TREMOR REAR 2.5 VS PB PAIR
IVD-91001 (QTY: 1) | 10-23 FORD F-SERIES BILLET 1" LOWERING SHACKLE KIT
IVD-198510 (QTY: 2) | 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
IVD-95225H (QTY: 1) | 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT

IVD-K93164

Stage 4 lets you dial in your suspension performance with ICON's Compression Damping Control Valve (CDCV) on each shock, allowing manual adjustability at all four corners.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Utilizes the NEW Delta Joint Pro joint
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
PTFE lined spherical bearings and application specific mounting hardware
Adjustable coilovers from 2.5-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 Series rear piggyback reservoir shocks with 7/8" shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Billet UCA for added strength, durability and an additional degree of caster for better
drivability
2.5 remote reservoir shocks with Icon CDC Valve allows for quick and easy end user compression adjustment.

Includes:

IVD-91824C 21-23 F150 4WD 3" 2.5 VS RR CDCV COILOVER KIT
IVD-98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
IVD-97721CP 21-23 F150 4WD TREMOR REAR 2.5 VS PB CDCV PAIR

Installation Instructions

IVD-K93164D

Features:

Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
2.5 Series front coilovers with remote reservoirs for improved shock cooling
Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
100% Bolt-on system - no cutting or welding necessary for install

Includes:

IVD-91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT
IVD-98523DJ 21-24 F150 BILLET UCA DJ PRO KIT
IVD-97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR

IVD-K93164L

Features:

Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
2.5 Series front coilovers with remote reservoirs for improved shock cooling
Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
3 user-adjustable rear spring rates for unique vehicle setups
Reduced rear axle wrap and improved ride quality compared to stock leaf springs
Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
100% Bolt-on system - no cutting or welding necessary for install

Includes:

IVD-91824C (QTY: 1) | 21-23 F150 TREMOR 2.5-3" 2.5 VS RR CDCV COILOVER KIT
IVD-98523DJ (QTY: 1) | 21-23 F150 BILLET UCA DJ PRO KIT
IVD-97721CP (QTY: 1) | 21-23 F150 4WD TREMOR REAR 2.5 VS PB CDCV PAIR
IVD-91001 (QTY: 1) | 10-23 FORD F-SERIES BILLET 1" LOWERING SHACKLE KIT
IVD-198510 (QTY: 2) | 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
IVD-95225H (QTY: 1) | 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT

IVD-K93164LD

Features:

Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
2.5 Series front coilovers with remote reservoirs for improved shock cooling
Tubular or Billet UCAs for added strength, durability, and alignment correction for better drivability. Billet UCAs feature on-vehicle caster/camber adjustment
20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
3 user-adjustable rear spring rates for unique vehicle setups
Reduced rear axle wrap and improved ride quality compared to stock leaf springs
Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
100% Bolt-on system - no cutting or welding necessary for install

Includes:

IVD-91824X 21-24 F150 TREMOR 2.5-3" 2.5 VS RR CDXS COILOVER KIT
IVD-8523DJ 21-24 F150 BILLET UCA DJ PRO KIT
IVD-97721XP 21-24 F150 4WD TREMOR REAR 2.5 VS PB CDXS PAIR
IVD-91001 10-24 FORD F-150 BILLET 1" LOWERING SHACKLE KIT
IVD-198510 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF (2)
IVD-95225H 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT

IVD-K93165

Stage 5 has the incredible CDEV system, ICON's award-winning technology for electronically controlling shock performance, on the fly and with lightning-fast, reactive adjustment. The ICON Intelligent Control (IIC) system reacts to G-inputs and commands shock adjustments in milliseconds to react to any situation in real time.

Features:

Increased wheel travel and ride quality over stock with no change in towing capacity
Utilizes the NEW Delta Joint Pro joint
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
PTFE lined spherical bearings and application specific mounting hardware
Adjustable coilovers from 2.5-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.5 Series rear piggyback reservoir shocks with 7/8" shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
Billet UCA for added strength, durability and an additional degree of caster for better
drivability
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)

Includes:

IVD-91824E 21-23 F150 4WD 3" 2.5 VS RR CDEV COILOVER KIT
IVD-98523DJ 21-23 F150 BILLET UCA DJ PRO KIT
IVD-93500 15-23 F150 & 17-22 FSD IIC INSTALL KIT
IVD-97721EP 21-23 F150 4WD TREMOR REAR 2.5 VS PB CDEV PAIR

Installation Instructions

IVD-K93165L

Features:

Adjustable coilovers in F-150 Tremor specific length offer 2.5-3" of front lift height over stock
2.5 Series front coilovers with remote reservoirs for improved shock cooling
Billet Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
20% increase in wheel travel and improved ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK rod end bearings for extended longevity and minimal deflection
High strength alloy CNC machined lower bar pin
2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
6061 Aircraft grade aluminum CNC machined components
3 user-adjustable rear spring rates for unique vehicle setups
Reduced rear axle wrap and improved ride quality compared to stock leaf springs
Billet aluminum lowering shackles feature maintenance and noise free OE Ford bushings
100% Bolt-on system - no cutting or welding necessary for install

Includes:

IVD-91824E (QTY: 1) | 21-23 F150 TREMOR 2.5-3" 2.5 VS RR CDEV COILOVER KIT
IVD-98523DJ (QTY: 1) | 21-23 F150 BILLET UCA DJ PRO KIT
IVD-93500 (QTY: 1) | 15-23 F150 & 17-22 FSD IIC INSTALL KIT
IVD-97721EP (QTY: 1) | 21-23 F150 4WD TREMOR REAR 2.5 VS PB CDEV PAIR
IVD-91001 (QTY: 1) | 10-23 FORD F-SERIES BILLET 1" LOWERING SHACKLE KIT
IVD-198510 (QTY: 2) | 17-20 RAPTOR MULTI RATE LEAF PACK W/ ADD IN LEAF
IVD-95225H (QTY: 1) | 17-20 RAPTOR MULTI RATE LEAF SPRING HARDWARE KIT

Notes:

The following tech and fitment data applies to all of these Suspension System Stages:
OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
APPLICATION NOTE #129
ICON UCA required.
Ships in multiple boxes
Will not work on CCD equipped vehicles
ONLY compatible with F-150 Tremor

Related Products
