ICON 2023+ Toyota Sequoia 1.75-4.5" Stage 1-2 Suspension System

IVD-K53231

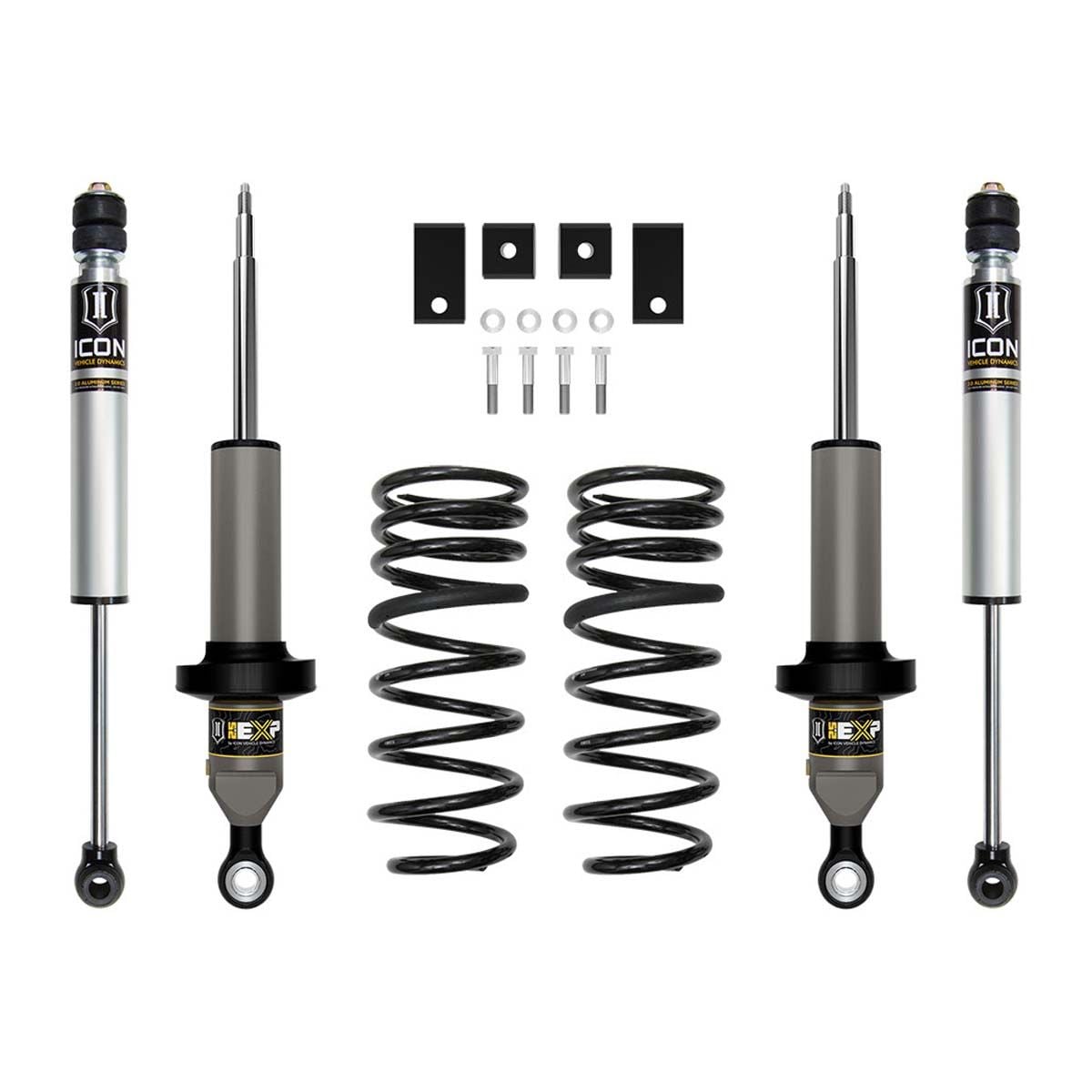

Stage 1 is ICON's entry level performance suspension system for 2023 Sequoia, providing improved on- and off-road performance as well as lift and leveling for a proper stance and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks and swaybar drop kit for the front of the truck along with our Dual Rate Coil Springs and 2.0 Nitrogen Charged Monotube Shocks with Internal Reservoirs for the rear.

Includes:

• (2) 22-23 TUNDRA/23 SEQUOIA FRONT 2.5 EXP COILOVER
• (1) 22-23 TUNDRA/23 SEQUOIA SWAY BAR DROP KIT
• (2) 22-23 TUNDRA 0-1.5"/23 SEQUOIA 0-3" REAR 2.0 VS IR
• (1) 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53232T

Stage 2 builds on ICON's 2.5 EXP Shock Kit with the addition of tubular front upper control arms. ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment with up to 4.5" of front end lift. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout suspension travel.

Includes:

• (2) 22-23 TUNDRA/23 SEQUOIA FRONT 2.5 EXP COILOVER
• (1) 22-23 TUNDRA/23 SEQUOIA TUBULAR UCA DJ KIT
• (1) 22-23 TUNDRA/23 SEQUOIA SWAY BAR DROP KIT
• (2) 22-23 TUNDRA 0-1.5"/23 SEQUOIA 0-3" REAR 2.0 VS IR
• (1) 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53232

Stage 2 builds on ICON's 2.5 EXP Shock Kit with the addition of billet front upper control arms. ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment with up to 4.5" of front end lift. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout suspension travel.

Includes:

• (2) 22-23 TUNDRA/23 SEQUOIA FRONT 2.5 EXP COILOVER
• (1) 22-23 TUNDRA/23 SEQUOIA BILLET UCA DJ KIT
• (1) 22-23 TUNDRA/23 SEQUOIA SWAY BAR DROP KIT
• (2) 22-23 TUNDRA 0-1.5"/23 SEQUOIA 0-3" REAR 2.0 VS IR
• (1) 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT
