ICON 2023+ Toyota Sequoia 3-4.5" Stage 4-12 Suspension System Tubular

ICON has released a range of Complete Suspension System "Stages" for 2023+ Toyota Sequoia to meet any level of budget or performance expectation

From $3,485.32

Only %1 left

SKU

IVD-TOYSEQ-2T_PARENT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Part #	Description

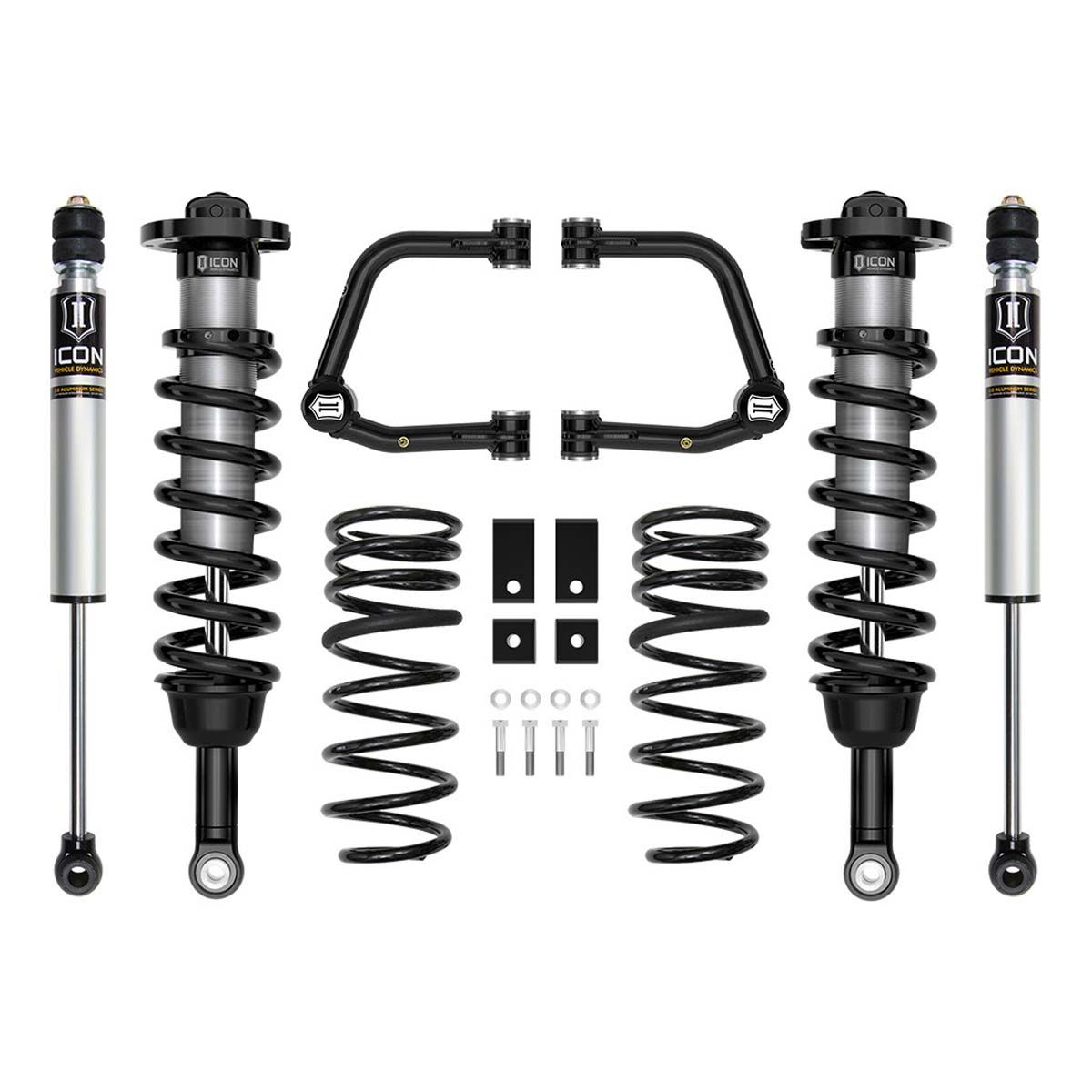

IVD-K53234T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 4 Suspension System Tubular
IVD-K53235T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 5 Suspension System Tubular
IVD-K53236T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 6 Suspension System Tubular
IVD-K53237T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 7 Suspension System Tubular
IVD-K53238T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 8 Suspension System Tubular
IVD-K53239T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 9 Suspension System Tubular
IVD-K53239TD	ICON 2023+ Toyota Sequoia 3-4.5" Stage 9 Suspension System Tubular CDXS
IVD-K53240T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 10 Suspension System Tubular
IVD-K53240TD	ICON 2023+ Toyota Sequoia 3-4.5" Stage 10 Suspension System Tubular CDXS
IVD-K53241T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 11 Suspension System Tubular
IVD-K53242T	ICON 2023+ Toyota Sequoia 3-4.5" Stage 12 Suspension System Tubular

IVD-K53234T - Stage 4

Get up to 40% more travel versus stock! Stage 4 adds ICON's Billet or Tubular Upper Control Arms to squeeze every inch of travel out of the Tundra's suspension while increasing suspension lift height. ICON UCA's are optimized for lifted or leveled trucks, with caster adjustment built into the geometry of the arm, making it easier to dial in your truck's steering alignment. These UCA's feature ICON's proprietary Delta Joint Pro, which is fully serviceable and provides up to 90-degrees of movement to allow bind-free movement throughout the full range of suspension travel afforded by the ICON coilovers.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS IR COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(2) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.0 VS IR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53235T - Stage 5

Stage 5 adds Remote Reservoirs to the 2.0 VS rear shocks to provide increased fluid volume and surface area, resulting in better heat dissipation. Stage 5 provides improved rear shock cooling without the increased price of larger 2.5 rear shocks.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS IR COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(2) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.0 VS RR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53236T - Stage 6

To provide for sustained shock performance at speed through rough terrain, Stage 6 adds remote reservoirs to the ICON 2.5 front coilovers and 2.0 rear shocks. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS RR COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(2) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.0 VS RR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53237T - Stage 7

Get increased rear shock performance to match the 2.5 front coilovers. Stage 7 includes ICON's 2.5-inch diameter VS Series rear shock absorbers with remote reservoirs, for a massive increase in shock oil volume and surface area for heat dissipation to help prevent cavitation and maintain damping performance over long stretches of rough terrain. In addition, the 2.5 VS rear shocks feature 7/8" rods and other beefier components to handle the long travel and punishing cycle rates of moving fast across the terrain.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS RR COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(1) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS RR PAIR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53238T - Stage 8

Stage 8 helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON rear lower suspension links. Available in either billet or tubular versions these links employ dual-durometer greaseless bushings at one end, and a massive FK rod end at the other to provide the best combination of free articulation and ride quality. The billet lower links provide the additional benefits of on-vehicle adjustability and replaceable rock skids.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS RR COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA BILLET REAR LOWER LINK KIT
(1) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS RR PAIR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53239T - Stage 9

Stage 9 features ICON's exclusive Compression Damping Control Valves (CDCV) for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(1) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS CDCV RR PAIR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53239TD with CDXS Shocks

Stage 9 is our basic CDXS Suspension System for 2022-25 Toyota Tundra. It yields 2 to 3.5" of front suspension lift and includes 2.5 VS front coilovers and rear shocks with CDXS dual speed damping technology, a Sway Bar Drop Kit and either billet aluminum or tubular steel Upper Control Arms with ICON's propritary Delta Joint Pro. Stage 9 is also available in 3-4.5" lift variants which also include ICON's Dual Rate Rear Coil Spring kit.

IVD-K53240T - Stage 10

Stage 10 includes ICON's exclusive CDCV Compression Damping Control valves for fast, easy adjustability as well as a full complement of ICON suspension components from front Upper Control Arms to rear Upper and Lower Trailing Arms, in either billet or tubular versions.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA BILLET REAR LOWER LINK KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA BILLET REAR UPPER LINK KIT
(1) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS CDCV RR PAIR
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

IVD-K53240TD with CDXS Shocks

Stage 10 is also available in both 2 to 3.5" and 3 to 4.5" lift heights with CDXS equipped 2.5 VS front coilovers and rear shocks. In addition to everything included in Stage 9, Stage 10 adds billet or tubular upper and lower rear suspension links and ICON's billet adjustable rear track bar to fully dial in rear suspension geometry for optimal performance. 3-4.5" systems also include ICON's Triple Rate Rear Coil Springs and Billet Adjustable Rear Track Bar.

IVD-K53241T - Stage 11

Stage 11 adds ICON's innovative Compression Damping Electronic Valve system and ICON Intelligent Control to provide instant, on-the-fly suspension optimization while you travel. CDEV reacts virtually instantly to commands from the IIC module, which reads terrain and speed through sophisticated sensors and electronics, resulting in just the right suspension tune, all the time, right on time.

Includes:

(1) 2022-2025 TUNDRA/2023 SEQUOIA 2.5 VS RR CDEV COILOVER KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
(1) 2022-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
(1) 2022-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS CDEV RR PAIR
(1) 2022-2025 TUNDRA/2023 SEQUOIA IIC INSTALL KIT
(1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT

IVD-K53242T - Stage 12

Stage 12, ICON's top of the line 2.5 suspension system for Sequoia, adds 2.5 VS-series rear shocks to the CDEV equipped system for the ultimate in on-the-fly automatically adjusting ride quality. The larger rear shocks provide increased fluid capacity and surface area for improved heat dissipation during hard use.

Includes:
