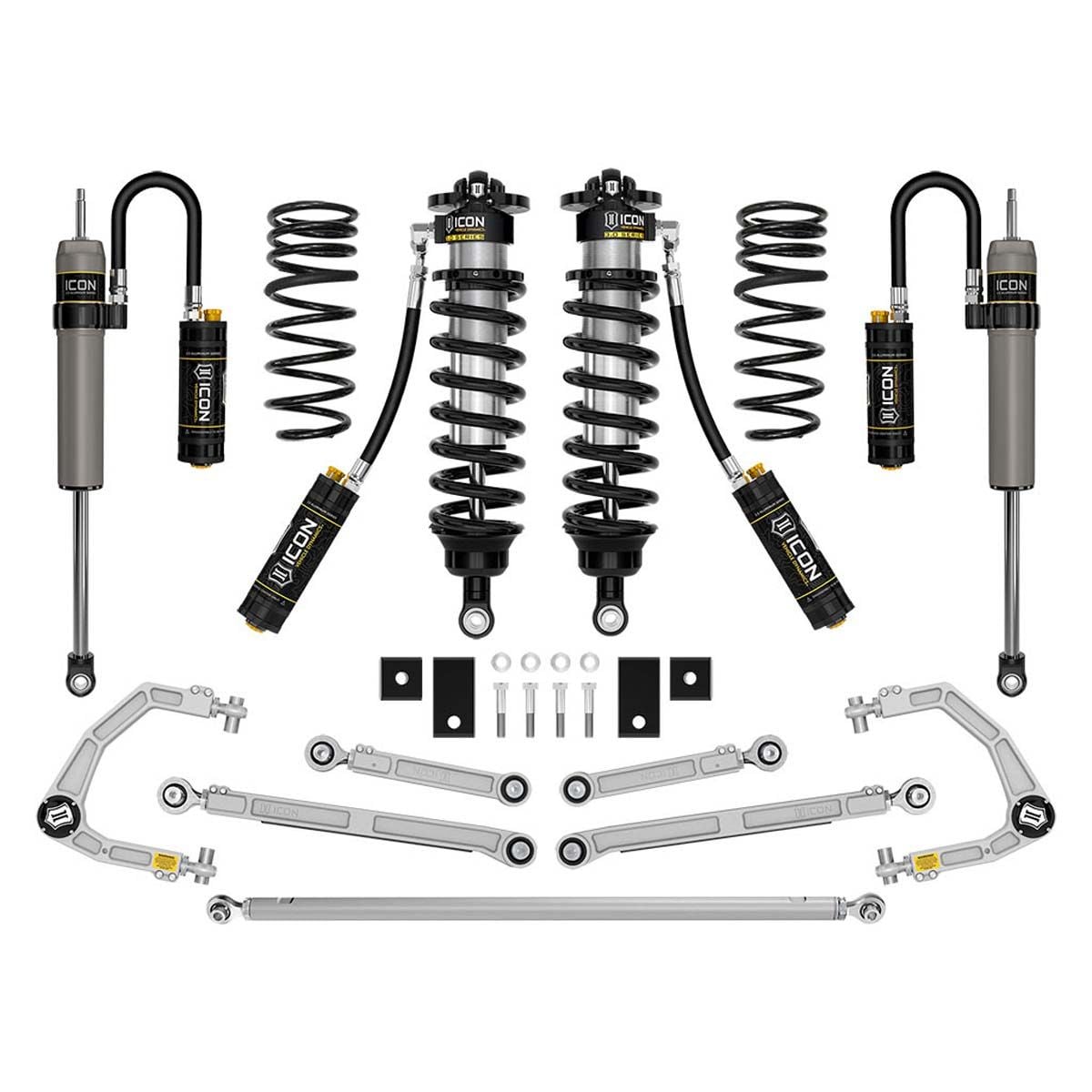

ICON 2023+ Toyota Sequoia 3-4.25" Stage 1-4 3.0 Suspension System, Billet

IVD-K53251 - Stage 1

Step up to BIG shock performance with ICON's 3.0 Stage 1 Suspension System. The 3.0 Series front coilovers provide massive fluid capacity and superior heat dissipation for maintaining optimum damping performance without fade, during hard use with longer and faster suspension cycling. 3.0 Stage 1 also includes Icon's Compression Damping Control Valve (CDCV) for manually dialing in your optimal ride characteristics as well as a full complement of front and rear control arms to improve suspension geometry and articulation.

Includes:

• (1) 2023-2025 TUNDRA/2023 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR LOWER LINK KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR UPPER LINK KIT
• (1) 2023-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS CDCV RR PAIR
• (1) 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

IVD-K53251D - Stage 1 with CDXS Shocks

3.0 Stage 1 includes our massive 3.0 Vehicle Series CDXS-enhanced front coilovers for increased fluid volume and surface area, yielding optimal performance for prolonged periods of rough terrain. Travel and articulation are maximized with ICON Delta Joint Pro equipped front UCAs as well as upper and lower rear links in either billet aluminum or tubular construction. Stage 1 includes ICON's proven 2.5 VS CDXS-equipped rear shocks with internal bump zone. Sway bar drop brackets are included to optimize fitment.

IVD-K53251DS - Stage 1 with CDXS Shocks (TRD)

3.0 Stage 1 includes our massive 3.0 Vehicle Series CDXS-enhanced front coilovers for increased fluid volume and surface area, yielding optimal performance for prolonged periods of rough terrain. Travel and articulation are maximized with ICON Delta Joint Pro equipped front UCAs as well as upper and lower rear links in either billet aluminum or tubular construction. Stage 1 includes ICON's proven 2.5 VS CDXS-equipped rear shocks with internal bump zone. Sway bar drop brackets are included to optimize fitment.

IVD-K53251S (TRD)

Includes:

• IVD-58775C (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• IVD-58561DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA BILLET UCA DJ PRO KIT
• IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
• IVD-54002 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
• IVD-54102 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• IVD-57840CP (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS CDCV RR PAIR
• IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
• IVD-54202 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

IVD-K53252 - Stage 2

3.0 Stage 2 includes everything from 3.0 Stage 1, but swaps the rear shocks out for matching 3.0 CDCV shocks. This brings the rear suspension up to par with the front, for off-roaders who demand long-lasting damping performance at speed and over rough terrain.

Includes:

• (1) 2023-2025 TUNDRA/2023 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR LOWER LINK KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR UPPER LINK KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA REAR 3.0 VS RR CDCV PAIR
• (1) 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

IVD-K53252D with CDXS Shocks

Stage 2 builds on the previous stage by including massive 3.0 Vehicle Series rear shocks, making your suspension all-around built for severe use through rough terrain, over the long haul. 3.0 Stage 2 is available in 2 - 3.25" lift height or 3-4.25" lift height including our triple rate rear coil springs.

IVD-K53252DS with CDXS Shocks (TRD)

Stage 2 builds on the previous stage by including massive 3.0 Vehicle Series rear shocks, making your suspension all-around built for severe use through rough terrain, over the long haul. 3.0 Stage 2 is available in 2 - 3.25" lift height or 3-4.25" lift height including our triple rate rear coil springs.

IVD-K53252S (TRD)

Includes:

• IVD-58775C (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 3.0 VS RR CDCV COILOVER KIT
• IVD-58561DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA BILLET UCA DJ PRO KIT
• IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
• IVD-54002 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
• IVD-54102 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• IVD-57845CP (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA REAR 3.0 VS RR CDCV PAIR
• IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
• IVD-54202 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

IVD-K53253 - Stage 3

3.0 Stage 3 is identical to 3.0 Stage 1 but with ICON's Compression Damping Electronic Valve system powered by ICON Intelligent Control for automatic on-the-fly optimization of ride quality in any terrain.

Includes:

• (1) 2023-2025 TUNDRA/2023 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA TUBULAR OR BILLET UCA DJ PRO KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR LOWER LINK KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR UPPER LINK KIT
• (1) 2023-2025 TUNDRA 0-1.5"/2023 SEQUOIA 0-3" REAR 2.5 VS CDEV RR PAIR
• (1) 2023-2025 TUNDRA/2023 SEQUOIA IIC INSTALL KIT
• (1) 23 SEQUOIA 3" DUAL RATE REAR SPRING KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

IVD-K53253S (TRD)

Includes:

• IVD-58775E (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
• IVD-58561DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA BILLET UCA DJ PRO KIT
• IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
• IVD-54002 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
• IVD-54102 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• IVD-57840EP (QTY: 1) | 2022-2025 TUNDRA 0-1.5"/2023-2025 SEQUOIA 0-3" REAR 2.5 VS CDEV RR PAIR
• IVD-53508 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA IIC INSTALL KIT
• IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
• IVD-54202 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR

IVD-K53254 - Stage 4

3.0 Stage 4 includes the best of everything, for those who want the most out of their suspension performance. BIG 3.0 Series shocks and coilovers all the way around. CDEV powered by IIC for effortless, on-the-fly damping optimization. And a full complement of front and rear control arms to improve suspension geometry and articulation.

Includes:

• (1) 2023-2025 TUNDRA/2023 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET UCA DJ PRO KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA SWAY BAR DROP KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR LOWER LINK KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR UPPER LINK KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA REAR 3.0 VS RR CDEV PAIR
• (1) 2023-2025 TUNDRA/2023 SEQUOIA IIC INSTALL KIT
• (1) 2023 SEQUOIA 3" DUAL RATE REAR SPRING KIT
• (1) 2023-2025 TUNDRA/2023 SEQUOIA BILLET REAR ADJ TRACK BAR KIT

IVD-K53254S (TRD)

Includes:

• IVD-58775E (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
• IVD-58561DJ (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA BILLET UCA DJ PRO KIT
• IVD-55154 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA SWAY BAR DROP KIT
• IVD-54002 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA BILLET REAR LOWER LINK KIT
• IVD-54102 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/LC250/GX550 BILLET REAR UPPER LINK KIT
• IVD-57845EP (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA REAR 3.0 VS RR CDEV PAIR
• IVD-53508 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA IIC INSTALL KIT
• IVD-51216 (QTY: 1) | 2023-2025 SEQUOIA TRD 2" DUAL RATE REAR SPRING KIT
• IVD-54202 (QTY: 1) | 2022-2025 TUNDRA/2023-2025 SEQUOIA/24 TACOMA/24 LC250/24 GX550 BILLET REAR ADJ TRACK BAR
