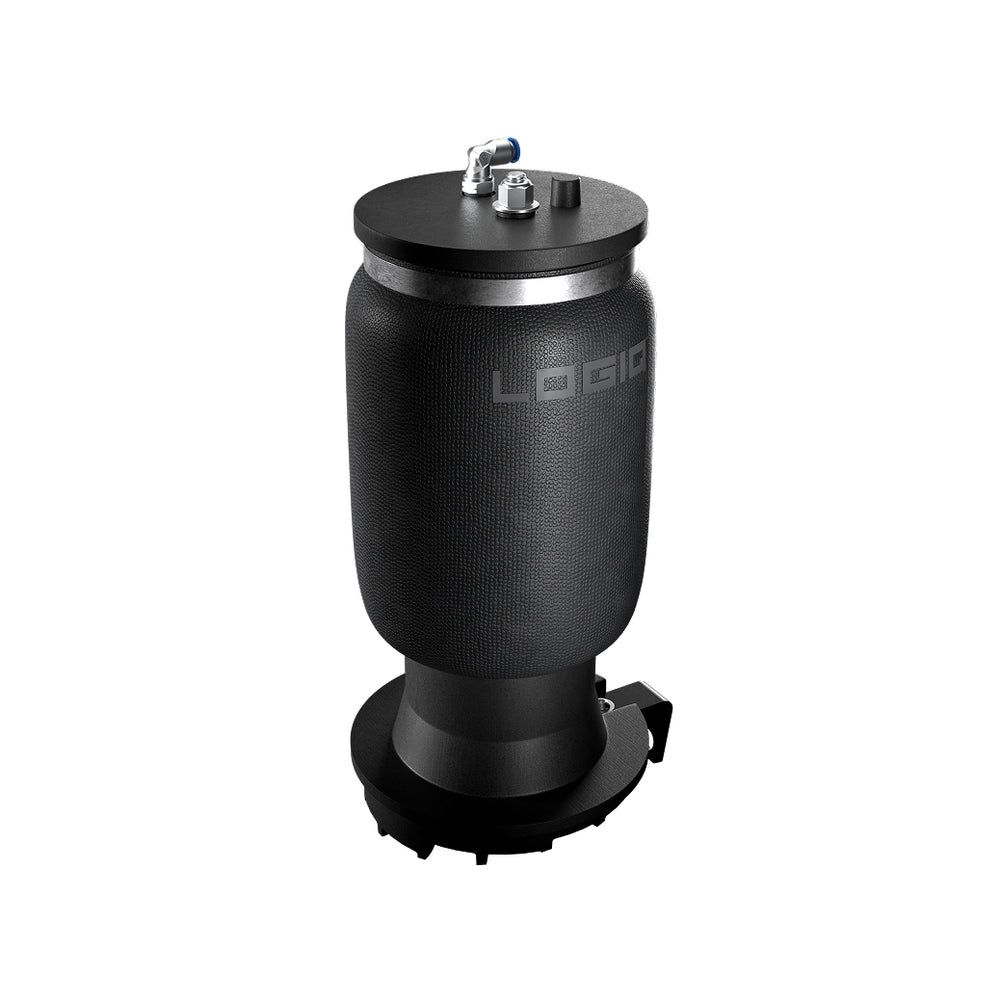

LOGIQ 2022+ Toyota Tundra - Air Spring Kit (Manual Inflation Kit)
Upgrade your Toyota Tundra with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. Enjoy a smoother ride unloaded, superior load support when hauling, and adjustable height for easier loading or trailer hookup. Fits factory-height trucks and up to 3” lifts out of the box. With a 6,000 lb capacity at 150 PSI, it’s smarter air suspension for serious work.
Upgrade your Toyota Tundra with LOGIQ’s Air Spring Kit—a coil replacement solution that swaps factory coils (or factory air) for primary air at the rear axle. Enjoy a smoother ride unloaded, superior load support when hauling, and adjustable height for easier loading or trailer hookup. Fits factory-height trucks and up to 3” lifts out of the box. With a 6,000 lb capacity at 150 PSI, it’s smarter air suspension for serious work.
Features:
- Optimized Ride Quality - OE-style LOGIQ air springs feature a low frequency design for smooth performance, even while towing and hauling.
- Enhanced Stability & Support - LOGIQ high-endurance air springs provide up to 6,000 lbs of lifting capacity. (3,500 lbs of payload)
- OEM Hitch Integration - Compatible with a wide variety of OEM and aftermarket 5th wheel hitches.
- Precision Fitment - Built-in features that locate off the factory frame and axle guarantees proper fitment and operation for every install.
- Lifetime Warranty - Air Spring Kits come with a Limited Lifetime Warranty and FREE ReadyGUARD 5-year - 60,000 mile Powertrain Warranty.
- Coil Replacement - A smoother ride unloaded, a more stable ride when towing and hauling. Experience the best of both worlds.
- Level Any Load - With 3" surplus of extension travel, you can lift the rear all the way up or air down to the bump stops.
- For Work / For Play - Experience hard working comfort that lets you focus on the road ahead, not the harsh ride you're used to.
Tech Specs:
- Air Spring Location: Axle Mounted Inboard Frame Rails
- Air Spring Quantity: 2
- Lifting Force: 6,000 lbs @ 150 psi
- Payload Capacity: 3,500 lbs @ 150 psi
- Maximum Pressure: 150 psi
- Minimum Pressure: 20 psi
Kit Includes:
- (1) Driver Side Air Spring Assembly
- (1) Passenger Side Air Spring Assembly
- (1) Hardware Kit
- (1) Manual Inflation Kit
- (1) Exhaust Heat Wrap Kit
Notes:
- Trucks equipped with Factory Air Suspension require additional adapter kit 89-52220-AET.
- Ride Height = factory to +3". For lift amount greater than +3" to +6" add spacer kit 89-52220-3.
