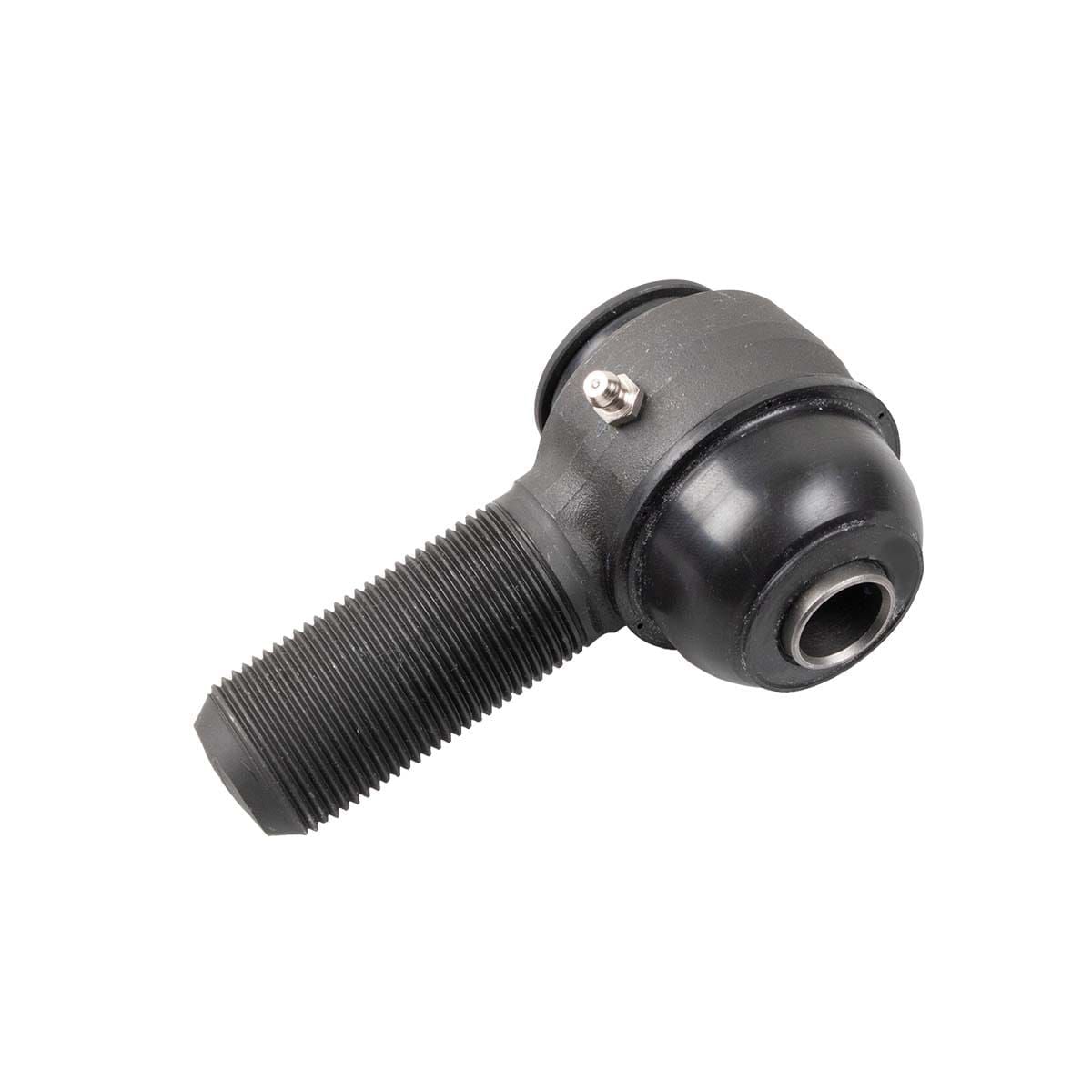

Synergy Ford Super Duty HD Replacement Tie Rod Ends

Fully greaseable sintered metal on metal bushing design has high wear resistance
Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
Outperforms the factory and all other aftermarket style tie rod ends by offering: A larger shank with no stress riser (doesn't neck down at base), Elimination of the nylon ball race
Boots are made from tear/wear resistant black NBR and come with retaining springs.
Includes all necessary hardware for installation
1-14 UNF LH Thread

From $70.00

Only %1 left

SKU

SYN-415X_PARENT

Synergy Ford Super Duty HD Replacement Tie Rod Ends
Fully greaseable sintered metal on metal bushing design has high wear resistance
Specially designed grease grooves in the OD of the ball to allow for maximum lubrication
Spring loaded bearing design keeps pressure on bearings and keeps the joint tight as it wears
Forged bearing housing made from 1018 steel for a strong, smooth, bearing surface
Tie Rod End stud made from 4140 steel with an induction heat treated bearing surface for smooth operation and maximum life
Outperforms factory and all other aftermarket style tie rod ends by offering a larger shank with no stress riser (doesn't neck down at base)
Elimination of the nylon ball race to prevent premature ware
Boots are made from tear/wear resistant black NBR and come with retaining springs.
Includes all necessary hardware for installation
Synergy High Performance Grease (SYN-4119) is the recommended grease for this product
Zerk specs: DynaFlo 1/4'-28 straight steel zinc grease fittings with ball check

TIE ROD END FITMENT TABLE

Fitment	Description	Driver Side Tie Rod End	Driver Side Tie Rod End Boot	Passenger Side Tie Rod End	Passenger Side Tie Rod End Boot
SYN-8600-01	05+ Drag Link	SYN-4152-L	SYN-4152-DB	SYN-4153-L	SYN-4153-DB
SYN-8602-01	05+ Tie Rod	SYN-4151-L	SYN-4151-DB	SYN-4150-L	SYN-4150-DB
SYN-8602-11	05+ Tie Rod	SYN-4151-L	SYN-4151-DB	SYN-4150-L	SYN-4150-DB
SYN-8675-01	05+ Track Bar	N/A	TBD	SYN-4154-L	SYN-4154-DB

TIE ROD END SIZE TABLE

Part #	Description	Thread	Taper	Style
SYN-4150-L	HD TIE ROD END, FORD TIE ROD (PASSENGER SIDE)	1-1/4-12 Left Hand	1:6 TAPER (9.52 DEG INCL ANGLE)	Standard
SYN-4151-L	HD TIE ROD END, FORD TIE ROD (DRIVER SIDE)	1-1/4-12 Left Hand	1:6 TAPER (9.5 DEG INCL ANGLE)	Single Plane
SYN-4152-L	HD TIE ROD END, FORD DRAG LINK (DRIVER SIDE)	1-14 Left Hand	1:8 TAPER (7.10 DEG INCL ANGLE)	Standard
SYN-4153-L	HD TIE ROD END, FORD DRAG LINK (PASSENGER SIDE)	1-14 Left Hand	1:6 TAPER (9.52 DEG INCL ANGLE)	Single Plane
SYN-4154-L	HD TIE ROD END, FORD TRACK BAR (PASSENGER SIDE)	1-14 Left Hand	1:5 TAPER (11.30 DEG INCL ANGLE)	Standard
