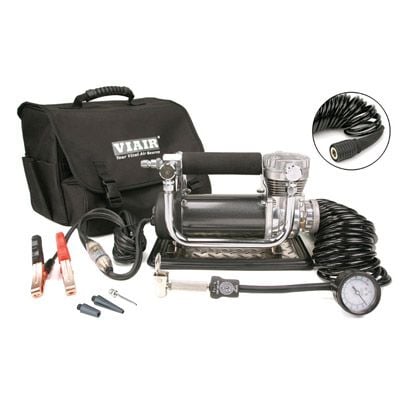

VIAIR 440P X'treme / Crawler Series Air Compressor (44043)

440P is the ultimate portable compressor kit. It can inflate up to a 37-inch tire from zero to 30 PSI in less than 3 minutes. The 440P is the largest and most powerful portable compressor kit available today. Rock crawlers and semi-truckers alike will find the power of this unit irreplaceable.

VIAIR 440P Standard Features:

• Oil-less Design
• High Performance PTFE Piston Ring
• Stainless Steel Valves
• Moisture & Dust Resistant
• Gearless Direct Drive Motor
• Anodized Aluminum Alloy Cylinder
• Automatic Reset Thermal Overload Protector
• Vibration-Free Diamond-Plate sand Tray
• Deluxe Dual Compartment Carry Bag
• 3-pc. Inflation Tips Kit
• 5-in-1 Inflator/Deflator with Inline 120 PSI Gauge
• Dual Battery Clamps with 50-amp Inline Fuse Holder
• CE Certified Available

VIAIR 440P Specifications:

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Amp Draw: 40 Amps
• Min. Ambient Temp: -40 åÁF
• Max. Ambient Temp: 158 åÁF
• Dimensions: 13.00" L x 5.83" W x 6.69" H

VIAIR 440P Tire Inflation Rates:

• Begin/End PSI 35" X 12.5"
  - 0 To 30 PSI 4 Min. 15 Sec.
  - 15 To 30 PSI 2 Min. 15 Sec.

• Begin/End PSI 37" X 12.5"
  - 0 To 30 PSI 4 Min. 35 Sec.
  - 15 To 30 PSI 2 Min. 40 Sec.

440P Dimensional Drawing PDF
