VIAIR Heavy Duty Onboard Air System (10005)

By ordering a single part number, you can take all of the guess-work out of getting all of the parts you'll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The VIAIR Heavy Duty Onboard Air System comes complete with a super fast 400C, 33% Duty Cycle compressor at its heart that will fill the supplied 2.5 gallon tank from 110-150 PSI in approximately 45 seconds. VIAIR included everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included clip-on air chuck. (For vehicles with up to 35-inch tires)

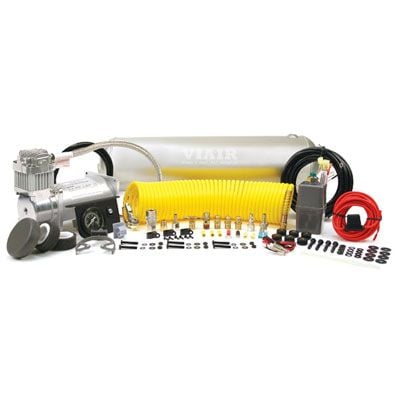

VIAIR Heavy Duty Onboard Air System Includes:

• (1) 2.5 Gallon VIAIR Air Tank
• (1) 400C model VIAIR Air Compressor
• (1) 35ft. Coil Hose
• (1) 1/4" Quick Connect Stud (F)
• (1) 1/4" NPT Quick Connect Coupler (F)
• (1) Dash Panel Gauge with ON/OFF Switch
• (1) Pressure Switch with Relay (110 PSI on, 150 PSI off)
• (1) Reducer (1/8" NPT F to 1/4" NPT M)
• (1) 1/4" NPT 175 PSI Safety Valve
• (1) 1/4" Drain Cock
• (3) 1/4" NPT Compression Fittings
• (1) 4-inch Strip of Continuous Grommet Material
• (1) 20ft. 12 Gauge Wire with Inline Fuse Holder

Heavy Duty Dimensional Drawing PDF
Wiring Diagram PDF
Plumbing Diagram PDF
