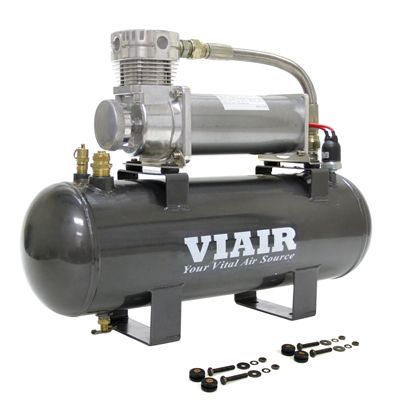

VIAIR High-Flow 200 PSI Air Source Kit (20008)

VIAIR Vital Air Source Kits provide all of the compressed air you'll need to perform tasks such as supplying air for horns, running air lockers on 4x4 vehicles, re-inflating tires after off road travel, and using small pneumatic tools.

Why stop at a shop or gas station, when you can easily have usable onboard air installed on your vehicle? VIAIR makes having onboard air installed as simple as bolting down the air tank, making a simple electrical connection, and hooking up and air line!

2 Gal Air Source Kit Includes:

• (1) 2 Gallon VIAIR Air Tank
• (1) 480C model VIAIR Air Compressor
• (1) Pressure Switch (165 PSI on, 200 PSI off)
• (1) 1/4" NPT 250 PSI Safety Valve
• (1) 1/4" Drain Cock
• (1) 1/2" NPT Compression Fitting
• Dimensions: 19.0ÌÒ L x 6.0ÌÒ W x 14ÌÒ H
• Net Weight: 23.30 lbs

480C Air Compressor

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Amp Draw: 20 Amps
• Min. Ambient Temp: -40 Deg. F
• Max. Ambient Temp: 158 Deg. F

480C Fill Rates:
0 To 200 PSI - 3 Min. 56 Sec.
165 To 200 PSI - 1 Min. 2 Sec.

High-Flow 200 PSI Dimensional Drawing PDF
