VIAIR Super Duty Onboard Air System (10008)

By ordering a single part number, you can take all of the guess-work out of getting all of the parts you'll need to install one of the most sophisticated, all-inclusive onboard air systems available today. The Super Duty Onboard Air System comes complete with a two 325C, 33% Duty Cycle compressors at its heart that will fill the supplied 2.0 gallon tank from 110-150 PSI in approximately 24 seconds. Unlike our other systems, the Super Duty Onboard Air System includes a regulator and can run air tools. Included is everything you'll need to add a reliable air source to your vehicle as well as inflate tires with the included tire inflation gun. (For vehicles with up to 37-inch tires)

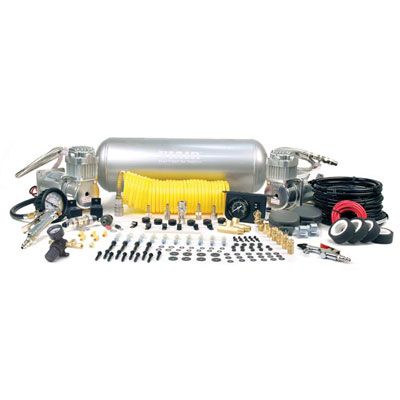

Super Duty Onboard Air System Includes:

• 2.0 Gallon VIAIR Air Tank
• (2) 325C VIAIR Compressors
• 30ft. Coil Hose
• Tire Inflation Gun with 200 PSI Gauge
• 0-150 PSI Pressure Regulator
• Blow Gun
• 1/4" NPT Quick Connect Coupler (F)
• Dash Panel Gauge with ON/OFF Switch
• Pressure Switch with Relay (110 PSI on, 150 PSI off)
• (2) 40-amp Relays
• Inline Fuse Holder w/ Fuse
• 1/4" NPT 175 PSI Safety Valve
• 1/4" Drain Cock
• (2) 1/8" BSP to 1/4" NPT (Air Locker Use)
• (5) 1/4" NPT Compression Fittings
• 4-inch Strip of Continuous Grommet Material
• 20ft. 12 Gauge Wire with Inline Fuse Holder
• (2) T-Fitting (1/4"(M) x 1/4"(F) x 1/8"(F))
• Electrical Connections

Super Duty Dimensional Drawing PDF
Wiring Diagram PDF
Plumbing Diagram PDF
