Total Chaos 86-95 4WD Toyota Idler Arm

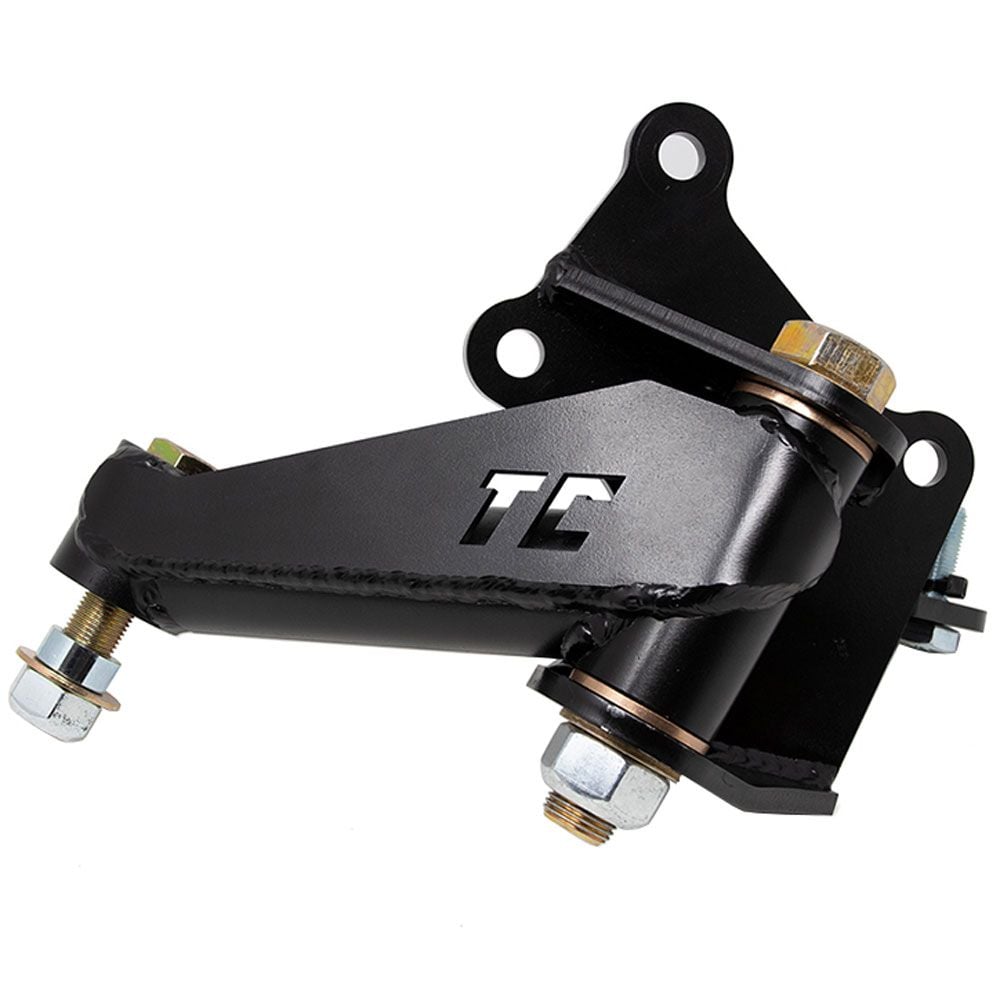

Eliminate sloppy steering on your 86-95 Toyota 4wd, install this custom chromoly idler arm. Internal double stacked sealed roller bearings replace the fatigued stock rod end and are impact resistant as well as durable. Laser cut brackets provide precision bolt holes so the idler arm simply bolts to the stock location. An inner sleeve is included so that you cannot over tighten the 3/4" through bolt. Built to handle extreme elements and perform under the toughest conditions, only grade 8 hardware is supplied. Drilling the centerlink to a 5/8" hole is the only modification necessary. Long travel suspension need not be installed!

• Custom 100% bolt on idler arm eliminates sloppy steering and provides better steering response when larger tires are installed.
• Designed to handle extreme elements & perform under race conditions.
• Laser cut brackets bolt to the factory idler arm mounting location.
• Fully rebuild able idler arm features double stacked sealed roller bearings.
• 3/4" Grade 8 hardware includes an inner sleeve to prevent over tightening during maintenance.
• Idler arm comes pre assembled.

• 1986-1995 Toyota Pickup (4WD)
• 1986-1995 Toyota 4Runner (4WD)
• 1993-1998 Toyota T100 (4WD)

Installation Instructions
