Trail-Gear 2.5" Extended Brake Line Kit, Jimny JA12/22 (DOT Approved)

Trail-Gear'sDOT approved Jimny Extended Brake Line Kits are suitable for all Suzuki Jimny JA12 & JA22 models with up to 2.5” [64mm] of lift. These brake lines are constructed from extruded PTFE (Teflon) hose with permanently crimped zinc-plated steel fittings. The brake hose is protected from debris and abrasion by a braided stainless steel wire cover. A clear PVC outer jacket provides additional protection against debris, abrasion, and corrosion.

These extended brake lines are a direct fit and exceed all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106. They come in a complete set of two front brake lines and one rear brake line along with four copper sealing washers and a mounting clip. A 4” [102mm] piece of spiral, anti-abrasion wrap is provided to protect the brake line in high abrasion areas.

• DOT approved extended brake lines, suitable for lifts up to 2.5” [64mm].
• PTFE (Teflon) hose.
• Permanently crimped zinc-plated steel fittings.
• Braided stainless steel wire cover.
• Clear PVC outer jacket.

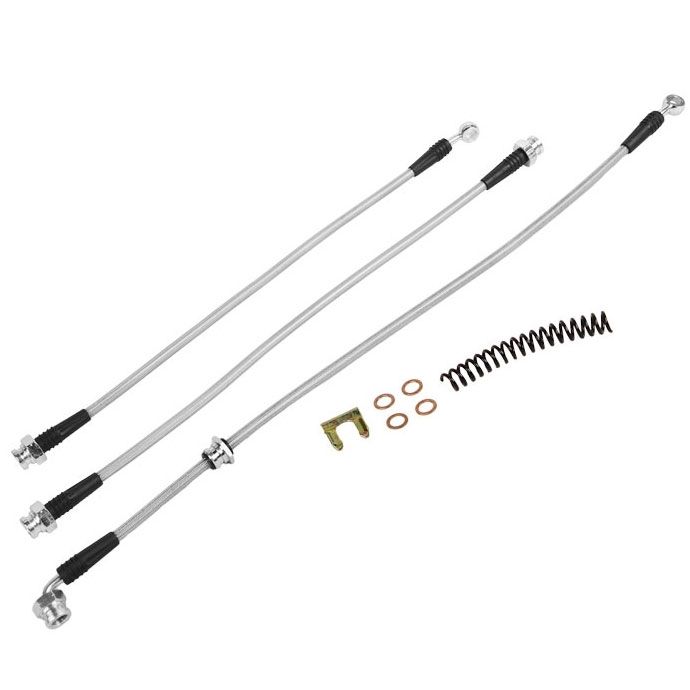

• Set of (2) front brake lines and (1) rear brake line.
• Provided with (4) copper sealing washers and installation instructions.
• 4” [102mm] piece of spiral anti-abrasion wrap provided to protect brake line in high abrasion areas.
• Exceeds all requirements of the Department of Transportation Motor Vehicle Standard MVSS-106.

• 1995-1998 Suzuki Jimny JA12
• 1995-1998 Suzuki Jimny JA22

Installation Instructions
