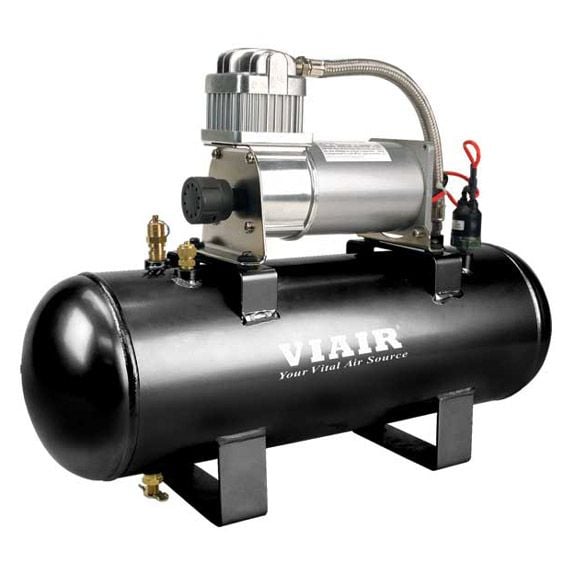

VIAIR High-Flow 150 PSI Air Source Kit (20005)

VIAIR Vital Air Source Kits provide all of the compressed air you'll need to perform tasks such as supplying air for horns, running air lockers on 4x4 vehicles, re-inflating tires after off road travel, and using small pneumatic tools.

Why stop at a shop or gas station, when you can easily have usable onboard air installed on your vehicle? VIAIR makes having onboard air installed as simple as bolting down the air tank, making a simple electrical connection, and hooking up and air line!

2 Gal. Air Source Kit

• (1) 2 Gallon VIAIR Air Tank
• (1) 280C model VIAIR Air Compressor
• (1) Pressure Switch (110 PSI on, 145 PSI off)
• (1) 1/4" NPT 175 PSI Safety Valve
• (1) 1/4" Drain Cock
• (1) 1/4" NPT Compression Fitting
• Dimensions: 19.0ÌÒ L x 6.0ÌÒ W x 13.75ÌÒ H
• Net Weight: 17.15 lbs.

280C Air Compressor

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Amp Draw: 16 Amps
• Min. Ambient Temp: -40 F
• Max. Ambient Temp: 158 Deg. F

280C Tank Fill Rates

• 2 Gallon Tank
  0 To 145 PSI - 4 Min. 15 Sec.
  110 to 145 PSI - 1 Min. 15 Sec.

High-Flow 150 PSI Dimensional Drawing PDF
