VIAIR Ultra-Light Duty Air Compressor System (10000)

Ultra-Light Duty Onboard Air System can be used to pressurize the included one gallon air tank for air horn use, off road air locking differential use, and a host of other light duty pneumatic needs. While not intended to inflate tires, this onboard air system provided reliable smaller volume, 105 PSI air source, in a cost effective package.

Ultra-Light Duty:

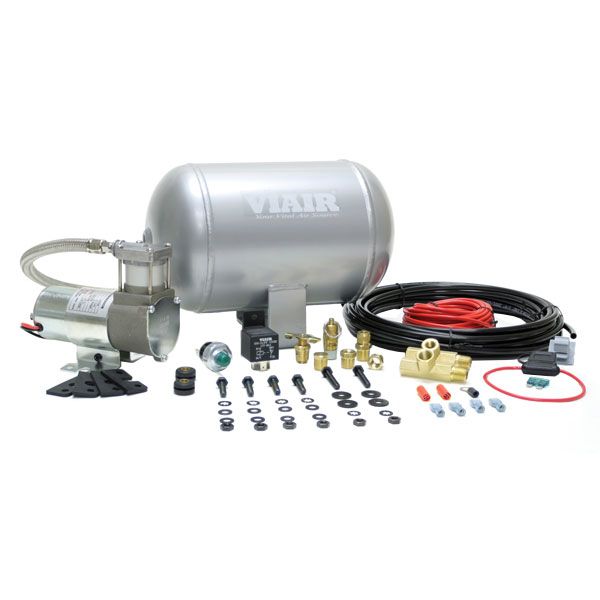

• (1) 1.0 Gallon VIAIR Air Tank
• (1) 98C model VIAIR Air Compressor
• (1) Omega Bracket w/ Mounting Hardware
• (1) Accessory Airline
• (1) Pressure Switch (85 PSI on, 105 PSI off)
• (1) 40 - Amp Relay
• (2) T-Fittings
• (1) 1/4" Drain Cock
• (1) 1/4" Compression Fitting
• (1) 1/4" Male NPT Plug
• (1) 145 PSI Saftey Valve
• (2) 1/4" Male NTP to 1/8" Female BSP
• (1) 20 ft. 12-Gauge Wire
• (1) Inline Fuse Holder
• (1) Electrical Connections

• 1.0 Gallon Tank / 31" x 10.5"
• 0 To 105 PSI - 1 min. 40 sec. (± 10 sec.)
• 85 To 105 PSI - 30 sec. (± 05 sec.)

• 12-Volt
• Permanent Magnetic Motor
• Duty Cycle: 10% @ 100 PSI
• Max. Working Pressure: 105 PSI
• Max. Amp Draw: 12 Amps
• Ingress Protection Rating: IP54
