ICON Alloys 18x9 Rebound HD Wheels
Wheel Fitment Guide (How to: Measure Wheels & Identify Lug Patterns)

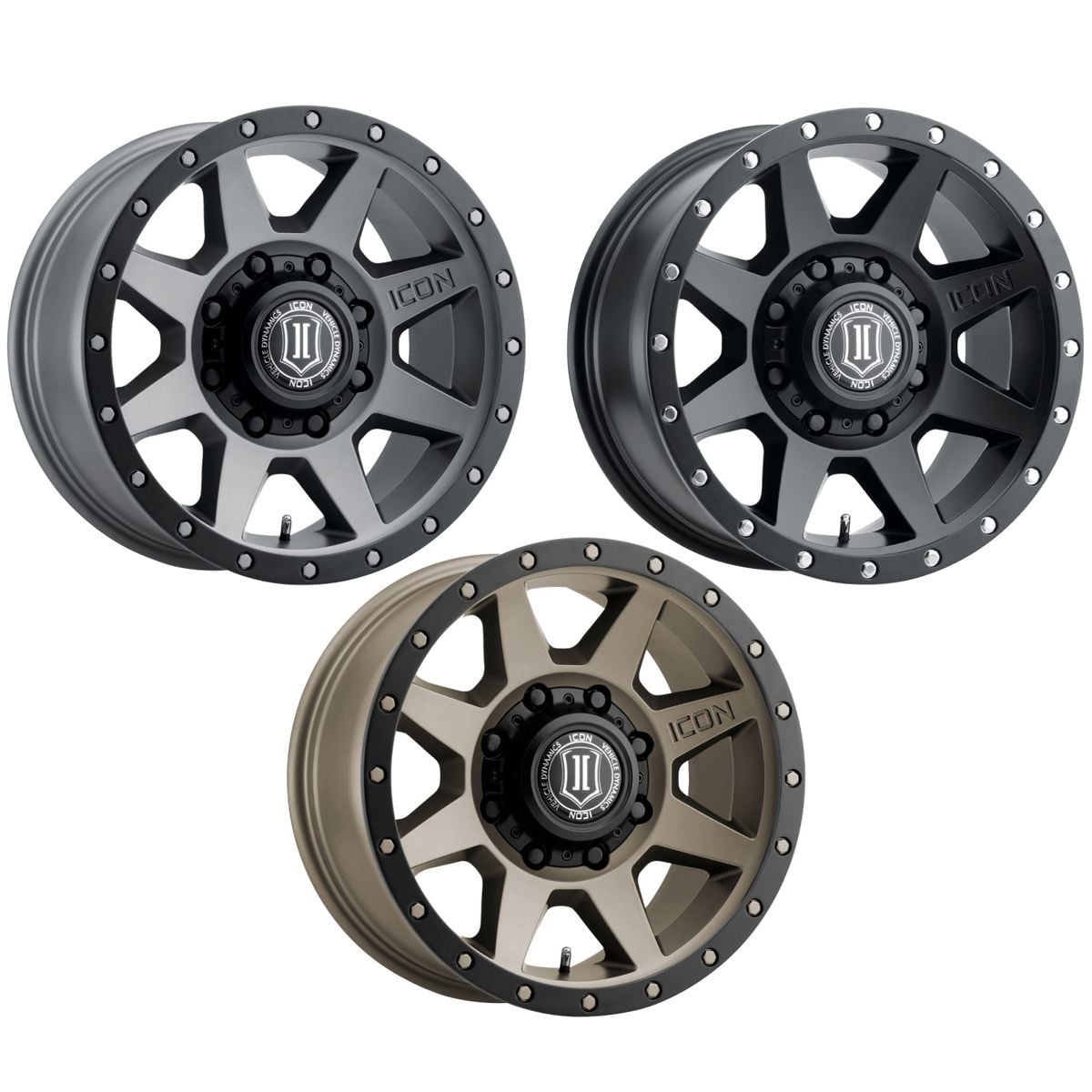

Bring a bold new look and incredible strength to your 8-lug pickup with the ICON Alloys REBOUND HD! Combining sharp lines, a concave spoke design, and "ICON-optimized" dimensions, these wheels will increase both the form and function of your 3/4-ton truck. Staying true to the ICON Alloys approach, the REBOUND has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.
Features:- Built specifically for HD applications, with a 4,000LB load rating
- Application-specific dimensions optimize vehicle dynamics and tire clearance
- Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
- Aluminum alloy construction provides strength properties that are well suited for off-road use
| Part # | Size | Finish | Bolt Pattern | Backspace | Offset | Hub Bore | Load Rating | Packaged Weight |
|---|---|---|---|---|---|---|---|---|
| IVD-1818908055BR | 18" x 9" | Bronze | 8 x 6.5" | 5.5" | +12mm | 121.4mm | 4000 Lbs | 34 Lbs |
| IVD-1818908055SB | 18" x 9" | Satin Black | 8 x 6.5" | 5.5" | +12mm | 121.4mm | 4000 Lbs | 34 Lbs |
| IVD-1818908055TT | 18" x 9" | Titanium | 8 x 6.5" | 5.5" | +12mm | 121.4mm | 4000 Lbs | 34 Lbs |
| IVD-1818908152BR | 18" x 9" | Bronze | 8 x 170mm | 5.25" | +6mm | 125mm | 4000 Lbs | 34 Lbs |
| IVD-1818908152SB | 18" x 9" | Satin Black | 8 x 170mm | 5.25" | +6mm | 125mm | 4000 Lbs | 34 Lbs |
| IVD-1818908152TT | 18" x 9" | Titanium | 8 x 170mm | 5.25" | +6mm | 125mm | 4000 Lbs | 34 Lbs |
| IVD-1818908955BR | 18" x 9" | Bronze | 8 x 180mm | 5.5" | +12mm | 124.2mm | 4000 Lbs | 34 Lbs |
| IVD-1818908955SB | 18" x 9" | Satin Black | 8 x 180mm | 5.5" | +12mm | 124.2mm | 4000 Lbs | 34 Lbs |
| IVD-1818908955TT | 18" x 9" | Titanium | 8 x 180mm | 5.5" | +12mm | 124.2mm | 4000 Lbs | 34 Lbs |
